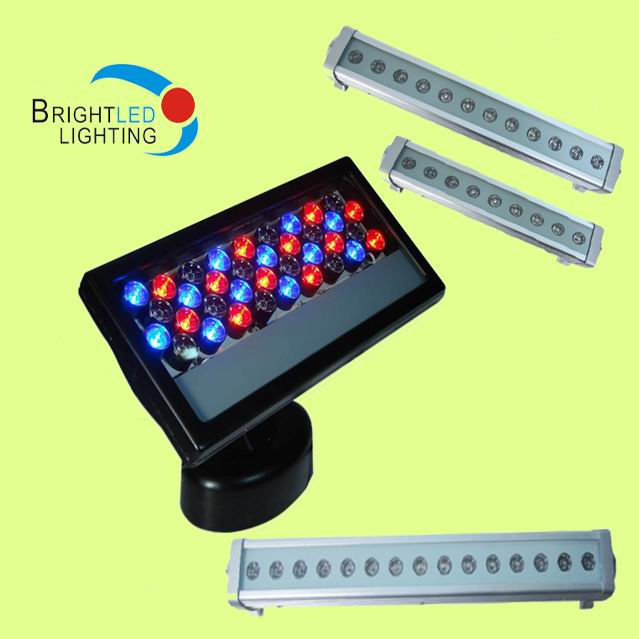

LED Wall washer/Wall washer lamp/China wall washer/Wall washer lighting.
1)Type: BL-WS3A-15W.
2)Light source: 15x1W Edison LED.
3)Power: 15W Voltage: 85-265V AC.
4)Color: R/G/B/Y/W or full color 16 million color in DMX RGB mode.
5)Beam angle: 15° / 30° / 45° / 60° / 90° / 120° .
6)Communication: DMX512 or DMX512A.
7)Optics: Optical grade PC collimator.
8)Max throw distance: 20 meter max.
9)Housing: Molded aluminum alloy with black powder coat finish.
10)DMX capability: Built in DMX512 decoder.
11)DMX connectors: 3 pin XLR male and female connector with 0.3m wire length.
12)Auto program: 10 preset color changing programs, selectable by user.
13)Ambient temperature: -20~40celsius.
14)Humidity range: 0% to 95% non-condensing humidity.
15)IP grade: IP65.
16)Dimension(L*W*H): 530*75*160 mm.
17)Weight: 2.45kg.
|
Brightled LED wall washer light series |
|
|
|
|
|
Picture |
LEDchip |
LED Qty(pc) |
Power(w) |
Size(mm) |
Voltage |
Color |
View angle |
|
BL-WS3A48W |
Edison |
36 |
36 |
335*148*205 |
100-240v AC |
W/WW/CW/RGB |
15-60 |
|
BL-WS3A12W |
Edison |
12 |
12 |
500*75*160 |
|
BL-WS3A15W |
Edison |
15 |
15 |
620*75*160 |
|
BL-WS3A18W |
Edison |
18 |
18 |
740*75*160 |
|
BL-WS3A24W |
Edison |
24 |
24 |
1000*75*160 |
|
BL-WS3A30W |
Edison |
30 |
30 |
1240*75*160 |
|
BL-WS3A30W |
Edison |
36 |
36 |
1480*75*160 |
