Led light manufacturers and factory

Home LED Light Products 120W IP65 High Lumens LED High Bay Lights for Warehouse

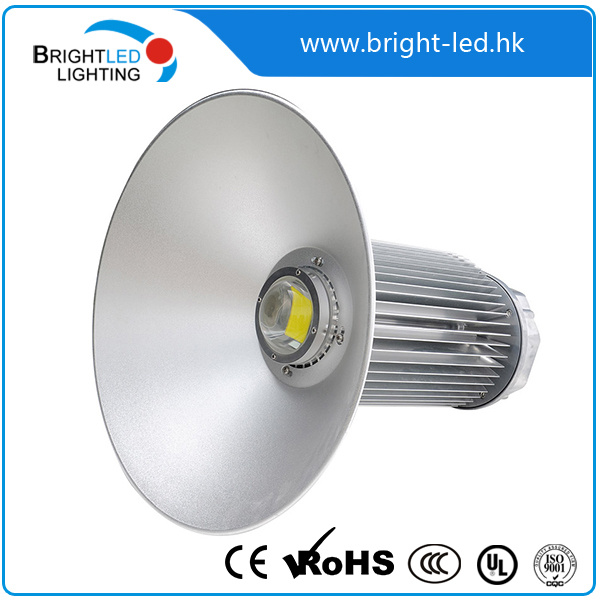

120W IP65 High Lumens LED High Bay Lights for Warehouse

120W IP65 High Lumens LED High Bay Lights for Warehouse
Price: US $ 99.9-119.9/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
120W IP65 High Lumens LED High Bay Lights for Warehouse

Type: BL-IL-120W-01
Power: 120W
Work voltage: AC(85V-265V)/(50-60Hz) DC(12-24V)
Power factor(PF): >0.9
Light efficiency: 80 lm/w
No UV or IR light radiation
Fixture efficiency: >90%
View angle: 120°
Color instruction: >80
Color temperature(CCT): 2700-7000K
Life time: >50, 000 hrs
Luminance decrease: Keep lighting 1000hours decrease1%
IP grade: IP65
CE certification
The color of the lamp shell: Black/Silvery White
Net weight: 6.5kg
Quantity (PCS): 2 PCS in a carton

Technical Parameter

Part No.BL-IL-120W-01
Led Quantity1P 120W COB Bridgelux Led
Voltage85~265V AC     12V/24V DC
Frequency Range50Hz-60Hz
Power Factor>0.9
Rendering IndexRa>80
Color Temp(K)3000K-7000K
Lumious Flux(Lm)>100LM/W
Led DecayLess than 3% after 1000hrs constand Work
Protection RateIP65
Life time(hrs)50,000
Thermal Resistance0.15°C/W
CertificationCE RoHs
DimensionD500*H505 cm

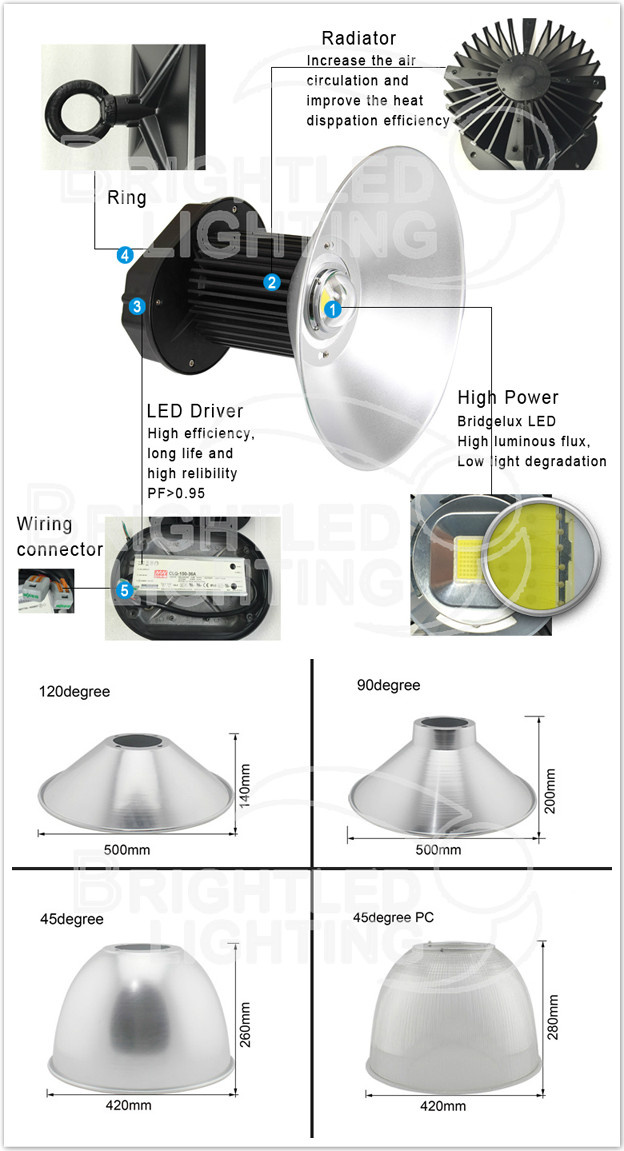

1.45MIL led chips and high quality power supply are used to ensure long-term reliable and stable working without accident or maintenance.
2. High luminance effect, realizing energy saving by 70% comparing with traditional light source.
3. Amazing Power factor, less harmonic distortion rate
4.Long lifetime over 50,000 hours, one-time investment, long-time payback;
5. Digital constant-power technology adopted , best control of LED street light power;
6. Unique one-time die-casted aluminum shell structure, making  heat dissipation excellent;
7. Stable LED working point, little temperature rise, no brightness decline.

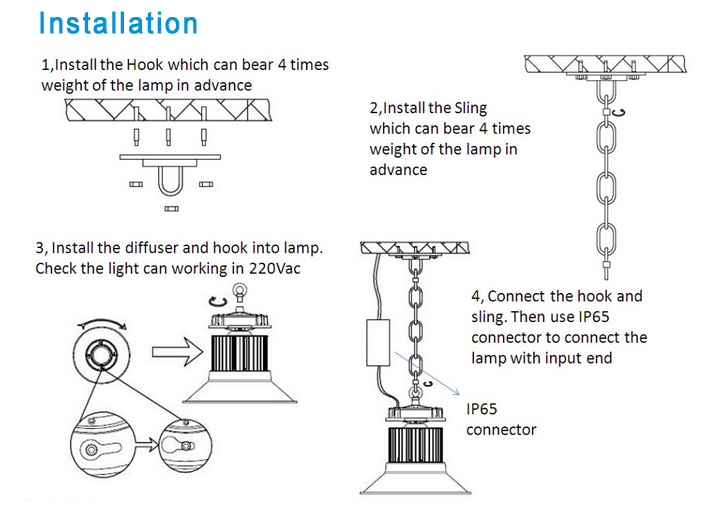

Installation Instruction
When open the package, please check whether the inside is including product,accessory,
label, certificate quality. And please assure that the light is perfect without any damage.
1. Please firstly install the reflector properly on the heat sink, and screw down.
2. Then crew down the hoop into the top cap.
3. Hang the body lamp on the installation site.
4..Please hang the chaining steel wire on another installation device
5.Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.
6.. The wires of LED High bay Light is three-core, the standard size of the wire is 3*0.75mm²or 3*1mm², brown wire is live line, blue wire is null line,

Brightled Lighting LED Industryt light/High bays  series
PictureLEDchipPower(w)VoltageColorLumensView angle
BL-IL-01Bridgelux50/60/70/80/90/100/110/120/150/180100-240V ACW/WW/CW80lm/w   120

Workshop, Storages, Factories, Shops, Restaurants, Garages, Supermarket etc
Packing information:
Lamp Boday:
2.Carton Weight: 15KGS/Ctn
3.Carton size: 52*46*28 CM
1.Qty of Ctn:20pcs/Ctn
2.Ctn Weight: 14KG
3.Ctn Size:58*58*36CM

  Trade Terms:

1. Payment: T/T,L/C, Western Union

2. Production lead time:3--15 days

3. Sample can be delivered in 3 days

4. Shipping freight are quoted under your requests

5. Shipping port: Shenzhen or Guangzhou Mainland China

6. Discounts are offered based on other quantities

Company Profile:
Brightled Lighting Tech Limited, which is an enterprise specializes in the manufacture of LED products.
Here as below are our main products:
1. LED Spot and bulb Light (MR11, MR16, E14, GU10, PAR30, PAR38);
3. LED Tube Lights (T5, T8, T10),SMD,DIP
4. LED Downlights (Recessed & Surface Mounted);
5. LED Street Lights and high power led chip
6. LED Strip Lights, LED Christmas Light Strings.
7. LED Outdoor Floodlight
8. LED Gas station Light
9. LED High Bay Light
10.led panel light and LED wall Washer light

Our Advantages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service

Our Services:
1.Your inquiry related to our products or prices will be replied in 8 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
1.Q: Which Chips and driver do you usually use ?
A: Bridgelux or Epistar LED,Driver with PF>0.9 or Meanwell brand
2.Q: Offer samples or not?
A: Yes.
3.Q: How about the delivery time?
A: Usually, 3-5 working days for the sample,4-10 days for 500-2000 pieces.
4.Q: Can you do FOB and accept L/C?
A: Both Yes
5.Q: How many years about the warranty?
A: 3 to 5 years
6.Q: It's my first time to import products, can you arrange all shipping for me?
A: It's our pleasure,we have the partner who can arrange all documents and shippment to you.
Prod Model: BL-IL120W-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name: 120W IP65 High Lumens LED High Bay Lights for Wa
Housing Color: Black/Silver White
Warranty Period: 3 Years
Radiation: No UV or IR
Sample/OEM Service: Acceptable
View Angle: 130degree
Light Efficiency: 80lm/W
Color Construction: >80
Color Temperature: Pure White
Lamp Body Material: Aluminum
IP Rating: IP65
Certification: RoHS
Brightled Lighting Technology Co., Limited, is a national high-tech enterprise of energy saving, focusing on design, R&D, production, export and technical support of LED light source and products.

Brightled Lighting not only has an excellent R&D team and management team, but also has strategic cooperation with experts, consultants, etc in the LED lighting field. Through 11 years development, Brightled Lighting owns core technology and experiences in LED Lighting products development, optical design, mould development, etc. We have developed many series of LED lighting products, including Series universal for both Outdoor and Indoor application, Series for Project and Landscape lighting, Series for Indoor Decoration, Series for Power LED lighting. Most of our products have gained CE, UL, RoHS certificates and so on.

"High quality products and best service" is the first article of our company core values. We regard it as our mission to provide high quality products with the best service at a most reasonable price in the industry and to deal with customers in an honest and responsible manner.

Bright LED Change life Bright.
