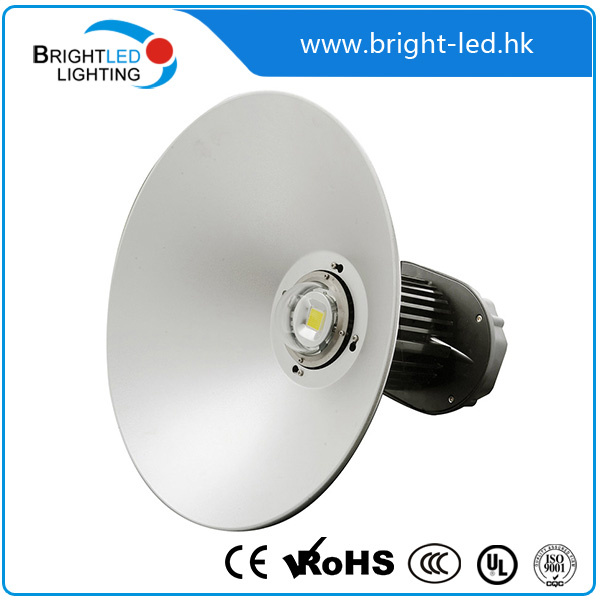

LED High Bay Light( BL-IL120W-01)
Specification:Type: BL-IL-120W-01
Power: 120W
Work voltage: AC(85V-265V)/(50-60Hz) DC(12-24V)
Power factor(PF): >0.9
Light efficiency: 80 lm/w
No UV or IR light radiation
Fixture efficiency: >90%
View angle: 120°
Color instruction: >80
Color temperature(CCT): 2700-7000K
Life time: >50, 000 hrs
Luminance decrease: Keep lighting 1000hours decrease1%
IP grade: IP65
CE certification
The color of the lamp shell: Black/Silvery White
Net weight: 6.5kg
Quantity (PCS): 2 PCS in a carton
Technical Parameter| Part No. | BL-IL-120W-01 |
| Power | 120W |
| Led Quantity | 1P 120W COB Bridgelux Led |
| Voltage | 85~265V AC 12V/24V DC |
| Frequency Range | 50Hz-60Hz |
| Power Factor | >0.9 |
| Rendering Index | Ra>80 |
| Color Temp(K) | 3000K-7000K |
| Lumious Flux(Lm) | >100LM/W |
| Led Decay | Less than 3% after 1000hrs constand Work |
| Protection Rate | IP65 |
| Life time(hrs) | 50,000 |
| Thermal Resistance | 0.15°C/W |
| THD | <15% |
| Warranty | 3Years |
| Certification | CE RoHs |
| Dimension | D500*H505 cm |

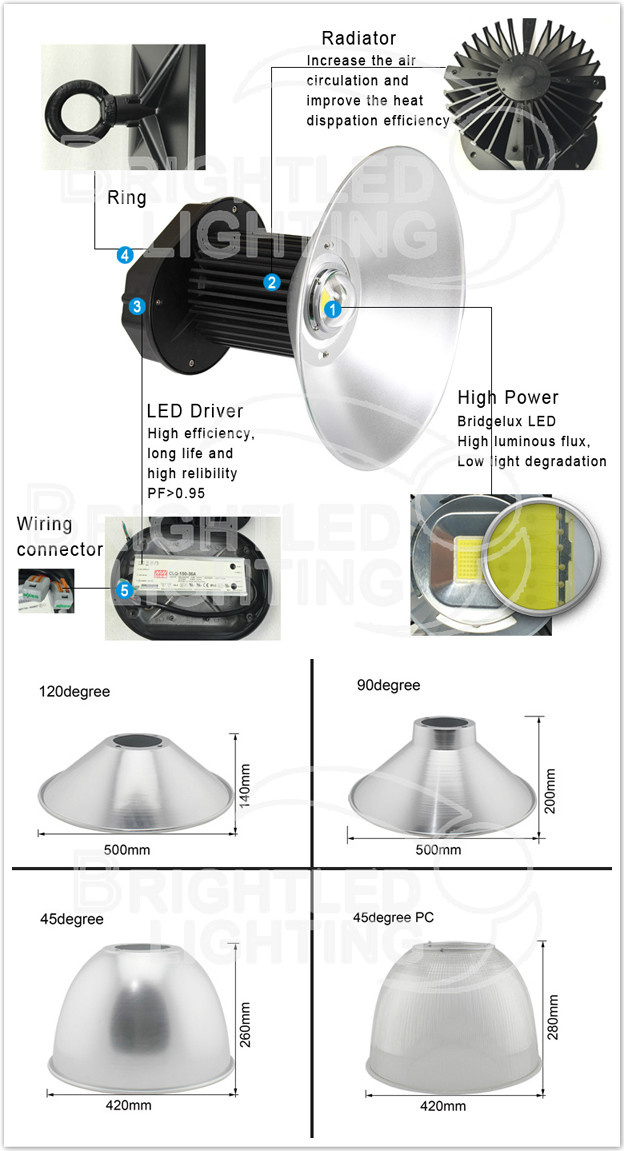

Feature
1.45MIL led chips and high quality power supply are used to ensure long-term reliable and stable working without accident or maintenance.
2. High luminance effect, realizing energy saving by 70% comparing with traditional light source.
3. Amazing Power factor, less harmonic distortion rate
4.Long lifetime over 50,000 hours, one-time investment, long-time payback;
5. Digital constant-power technology adopted , best control of LED street light power;
6. Unique one-time die-casted aluminum shell structure, making heat dissipation excellent;
7. Stable LED working point, little temperature rise, no brightness decline.

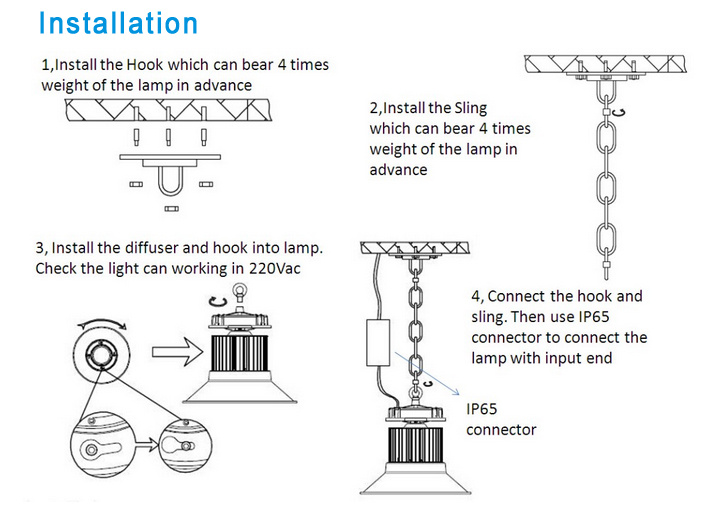

Installation Instruction
When open the package, please check whether the inside is including product,accessory,
label, certificate quality. And please assure that the light is perfect without any damage.
1. Please firstly install the reflector properly on the heat sink, and screw down.
2. Then crew down the hoop into the top cap.
3. Hang the body lamp on the installation site.
4..Please hang the chaining steel wire on another installation device
5.Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.
6.. The wires of LED High bay Light is three-core, the standard size of the wire is 3*0.75mm²or 3*1mm², brown wire is live line, blue wire is null line,
| Brightled Lighting LED Industryt light/High bays series |
| Picture | LEDchip | Power(w) | Voltage | Color | Lumens | View angle |
| BL-IL-01 | Bridgelux | 50/60/70/80/90/100/110/120/150/180 | 100-240V AC | W/WW/CW | 80lm/w | 120 |
| BL-IL-02 | 50/90 |
Applications
Workshop, Storages, Factories, Shops, Restaurants, Garages, Supermarket etc
Packing information:
Lamp Boday:
1.Qty:2pcs/Ctn
2.Carton Weight: 15KGS/Ctn
3.Carton size: 52*46*28 CM
Reflector:
1.Qty of Ctn:20pcs/Ctn
2.Ctn Weight: 14KG
3.Ctn Size:58*58*36CM
Trade Terms:
1. Payment: T/T,L/C, Western Union |
2. Production lead time:3--15 days |
3. Sample can be delivered in 3 days |
4. Shipping freight are quoted under your requests |
5. Shipping port: Shenzhen or Guangzhou Mainland China |
6. Discounts are offered based on other quantities |
Company Profile:Brightled Lighting Tech Limited, which is an enterprise specializes in the manufacture of LED products.
Here as below are our main products:
1. LED Spot and bulb Light (MR11, MR16, E14, GU10, PAR30, PAR38);
3. LED Tube Lights (T5, T8, T10),SMD,DIP
4. LED Downlights (Recessed & Surface Mounted);
5. LED Street Lights and high power led chip
6. LED Strip Lights, LED Christmas Light Strings.
7. LED Outdoor Floodlight
8. LED Gas station Light
9. LED High Bay Light
10.led panel light and LED wall Washer light
Our Advantages:
1. Low power consumption, high lumens
2. Original Bridgelux 45mil led chips, high quality, high brightness
3. Longer life around 50, 000hours
4. High quality pure aluminum, Efficient heat dissipation design, fast heat dissipation
5. Efficient LED driver, Reliable Performance, ROHS, CE compliant
6. Product process exquisite, unique design
7. Light's surface diameter and material thickness are greater than other products on the market
8. Excellent service, comprehensive after-sales service
Our Services:
1.Your inquiry related to our products or prices will be replied in 8 hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
1.Q: Which Chips and driver do you usually use ?
A: Bridgelux or Epistar LED,Driver with PF>0.9 or Meanwell brand
2.Q: Offer samples or not?
A: Yes.
3.Q: How about the delivery time?
A: Usually, 3-5 working days for the sample,4-10 days for 500-2000 pieces.
4.Q: Can you do FOB and accept L/C?
A: Both Yes
5.Q: How many years about the warranty?
A: 3 to 5 years
6.Q: It's my first time to import products, can you arrange all shipping for me?
A: It's our pleasure,we have the partner who can arrange all documents and shippment to you.
