Quality LED Display, LED Video Wall.
1) High Resolution, High Brightness, Stable Quality and Energy-saving. CE, RoHS, FCC Certificate
2) Clear vivid image quality provides an amazing visual feast.
3) Wide viewing angles and the horizontal angle can reach 120° .
4) Good performance of water-proof, and with high image fidelity, good evenness, Brightness and large view angle.
5) Considered maintenance with low cost.
6) Environmental-friendly and energy-saving.
7) Easy and simple installation interface and user friendly software to ensure that customers use easily.
|

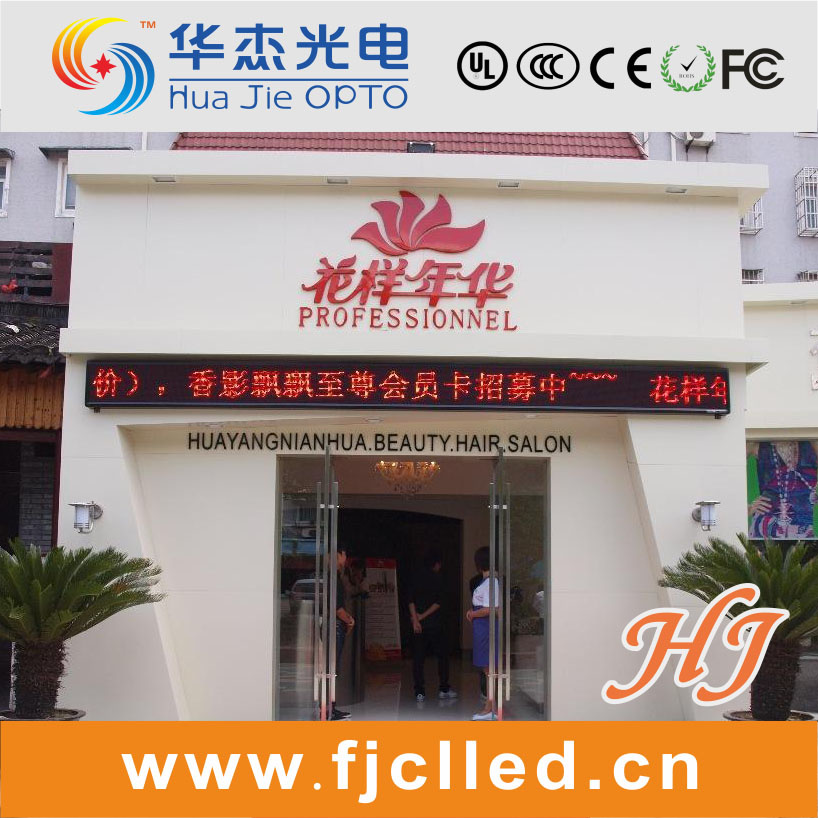

P10 Single Color Outdoor Module |
|
Item |
Unit |
Parameter |
|
Pixel Pitch |
mm |
10.00 |
|
Resolution of Module |
dots |
32x16 |
|
Module Size |
mm |
320x160 |
|
Led Package |
DIP Oval 346 Lamp |
|
Pixel Configuration |
1R/1G/1B/1W/1Y Optional |
|
Chip Brand of LEDs |
Epistar |
|
Module Weight |
kgs/pc |
0.65 |
|
Pixel Density |
dots/sqm |
10, 000 |
|
Brightness (White Balance) |
nits(cd/sq. m) |
2000 |
|
Red Wavelength |
nm |
620-625 |
|
Green Wavelength |
nm |
520-525 |
|
Blue Wavelength |
nm |
470-475 |
|
Scan Mode |
1/4 Scan |
|
Viewing Distance |
M |
5~100 |
|
Best View Distance |
M |
12.5~33m |
|
Viewing Angle-Horizontal |
deg. |
80 |
|
Viewing Angle-Vertical |
deg. |
60 |
|
Module Maximum Power |
W |
20 |
|
Max. Power Consumption |
W/sq. m |
400 |
|
Avg. Power Consumption |
W/sq. m |
100~250 |
|
Working Voltage |
40A 5V |
|
Power Supply |
AC 110/220V |
|
Waterproof Grade |
IP65 |
|
Refresh Rate |
Hz/S |
300 |
|
Frame Rate |
Hz/S |
≥ 60 |
|
Gray Scale |
256 grade |
|
Display Function |
Texts |
|
Input Signal |
RS232/485, USB, Ethernet |
|
Luminance Degradation |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 centigrade. |
|
Defective Dot Rate |
< 0.0001 |
|
Life Span |
hours |
100, 000 |
|
MTBF |
hours |
> 5, 000 |
|
Storage Temperature |
centigrade |
-35 -- +80 |
|
Working Temperature |
centigrade |
-20 -- +80 |
|
Control System |
Asynchronous or Synchronous |
|
Quality Certificate |
CE, CCC, ISO9001: 2008 |
|
Warranty |
2 Years |
|
Working Environment |
Outdoor |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
