Features:

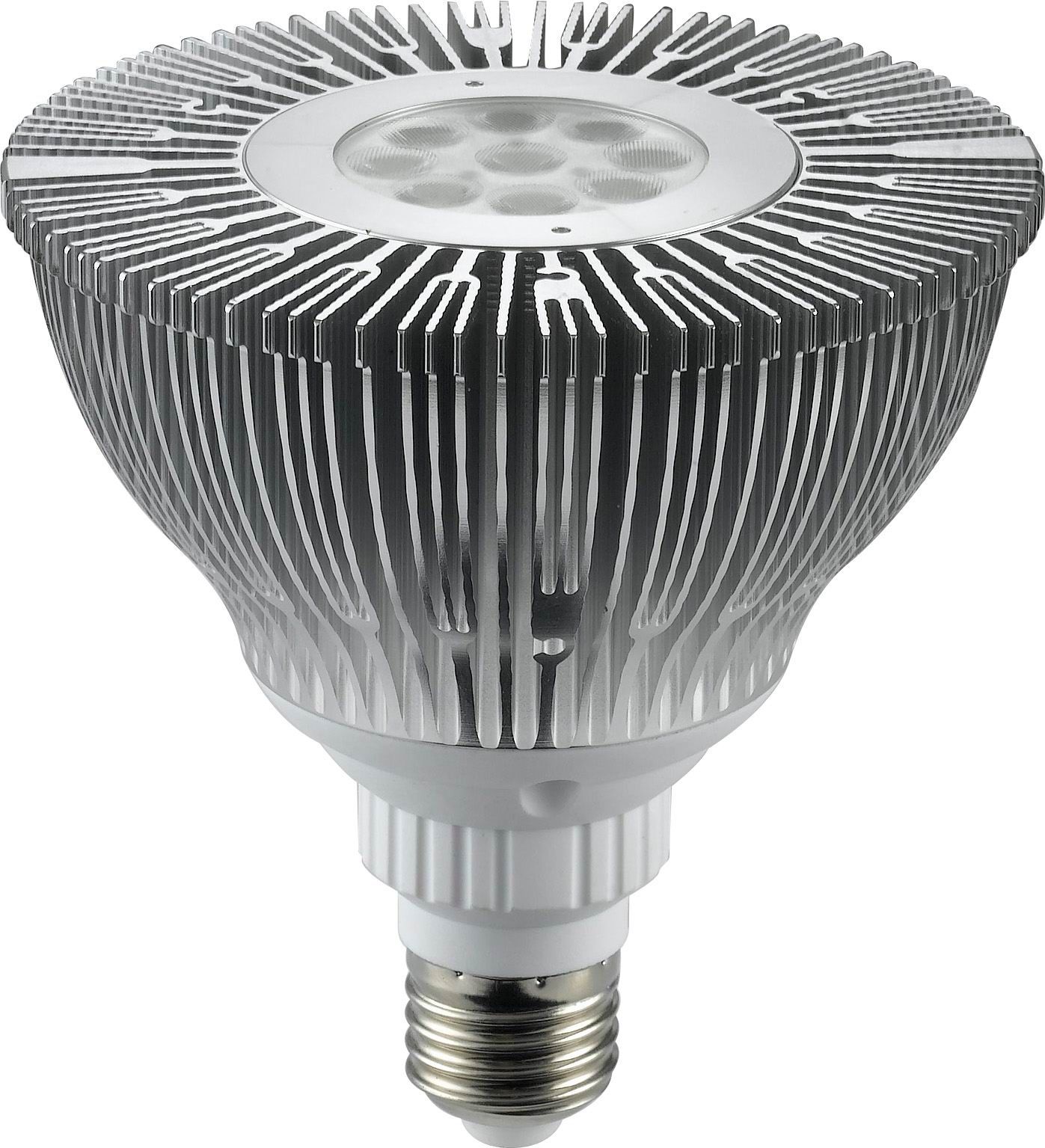

* item number: WD-PAR38-7XPE
* LED chip q'ty: 12PCS LED
* base type: E27/E26
* LED type: CREE XPE
* available input voltage: 85~145V AC and 190~265V AC
* applicable dimmers: Triac dimmer for lutron, teviton, legrand, CE, orsam etc.
* input power: 13.0W
* output power: 12.8W
* total length: 120(dia. ) x 125mm
* output current: 350mA
* lumen output: CREE XPE: WW: 630lm, CW: 840lm
* color range: 2, 700~6, 500K
* beam angle: 15, 25, 45 degrees
* reflector efficiency: 90%
* life span: >50, 000 hours
* body temperature: <65° C
* LED working temperature: <72° C
* CRI: Ra> 80
* net weight: 350g
* housing material: Aluminium extrustion
* no UV or IR radiation
* certification: CE, RoHS, c-tick, UL listed ( e346471)
* application
Applicable for PWM control dimmer, recommendation voltage of 85~285V and wattage of 30~350W, working with 90% of dimmers being sold in market. Plug-in replacement of current traditional lamps, no change required for dimmers and(or) circuits
* outstanding performance
Effiecent > 80%, pf > 0.9, life span > 50, 000 hours.
These series are for spotlights with CREE XP LED which is replacing currently common used xre, XP has better performance than xr by 7~10%, and with lower price trend.
|
Item Number |
WD-PAR38-7XPE |
|
|
|
|
Voltage |
85~145V AC/190~265V AC |
|
Lumens |
WW: 630lm/CW: 8400lm |
|
Dimmable |
YES |
|
Dimmension |
¢ 120 x 125mm |
|
Available Base |
E26/ E27 |
|
Weight |
350g |
|
LED Type/ QTY |
CREE XPE / 7pcs |
|
Power Consumption |
13.0W |
West Deer Technology Co., Limited is a skilled manufacturer and knowledgeable exporter of indoor and outdoor LED lighting fixtures. We have nearly 3 years of experience in the export business and we have grown into a highly efficient team, serving and providing our customers with an extensive range of high quality lighting fixtures at competitive prices.
West Deer Technology Co., Limited owns advanced production facilities and we have strong product development capabilities. Our corporate aim is "good quality and service and mutually beneficial cooperation". Our indoor line mainly produces LED tube lights, LED spotlights, LED global bulbs, LED ceiling lights, etc. Our outdoor line produces LED floodlights, LED streetlights and LED high bay lights Our lighting sources are always an imported brand name such as CREE, SemiLED, Bridgelux and Lumenmax, etc. All of our products are IEC and EMC standard qualified and CE, Rhos, C-tick FCC certified, some are UL certified as well.
West Deer Technology Co., Limited will work with our customers to establish a mutually beneficial relationship. We provide high quality products and an excellent service for partners from all over the world.
