1) Color Temperature: Warm White: 2, 700 ~3, 500K, Cool White: 5, 000~6, 500K
2) CRI: Ra>80
3) Power Factor: >0.8
4) Outdoor Application: IP65 qualified
5) Life Span: 50, 000 hours
6) Warranty: 2 years
7) Certification: CE, RoHS
8) Housing Color: White
Specification

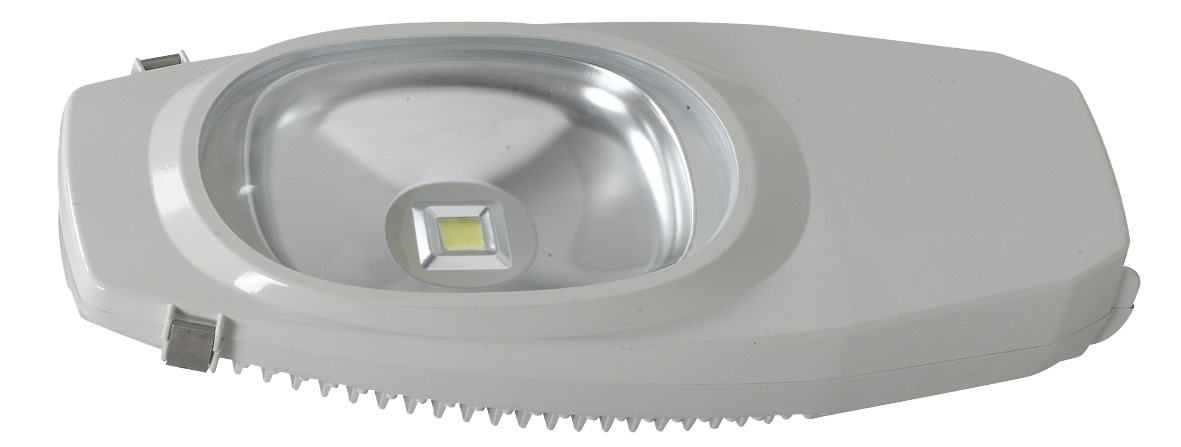

Item Number WD-650SL- 80W
Input Voltage: AC85~265
Frequency Range: 50Hz~60Hz
Total Harmonic Distortion < 9%
Power Factor: >0.98
LED Working Voltage: DC30~36V
LED: 1 PC Bridgelux SMD LED Source
System Consumption: 85W
LED Consumption: 74W
LED luminous Efficiency: 75~90 lm/W
LED Initial Flux: WW: 5, 400lm PW: 5, 600lm CW: 5, 900lm
Lamp Efficiency: >80%
Average Illuminance: Height of 8 meter: 21.2 lux
Height of 10 meter: 17.8lux
Height of 12 meter: 15.7lux
Illuminance Area: Height of 8 meter: 28*11.6 m
Height of 10 meter: 32*12.5 m
Height of 12 meter: 36*14m
Illuminance Uniformity: >0.4
Color Temperature: 2, 700~7, 000K
Color Rendering Index: WW: Ra>68, PW, CW: Ra>75
Light Distribution: Sysmmetric/ Circle
Junction Temperature: < 80 centigrade
Operation Temperature from -40 centigrade to + 55 centigrade
IP Grade: IP65
Life Span: At least 50, 000 hours
Connect Wire: L/N/G
Housing Material: Aluminum
More options for 60, 100W.
|
Item Number |
WD-650SL-100W |
|
Voltage |
85~265V AC |
|
Lumens |
WW: 6, 700lm NW: 7, 400lm CW: 7, 000lm |
|
Average Illuminance |
Height of 4-meter: 26.5 lux Height of 6-meter: 22.2 lux Height of 8-meter: 19.6 lux |
|
Dimension |
650L x 270W x 170H mm |
|
Weight |
10.5 kg |
|
LED Type |
SMD Bridgelux Chip |
|
Power Consumption |
100.0W |
|
Note |
More options for 60, 80W |
West Deer Technology Co., Limited is a skilled manufacturer and knowledgeable exporter of indoor and outdoor LED lighting fixtures. We have nearly 3 years of experience in the export business and we have grown into a highly efficient team, serving and providing our customers with an extensive range of high quality lighting fixtures at competitive prices.
West Deer Technology Co., Limited owns advanced production facilities and we have strong product development capabilities. Our corporate aim is "good quality and service and mutually beneficial cooperation". Our indoor line mainly produces LED tube lights, LED spotlights, LED global bulbs, LED ceiling lights, etc. Our outdoor line produces LED floodlights, LED streetlights and LED high bay lights Our lighting sources are always an imported brand name such as CREE, SemiLED, Bridgelux and Lumenmax, etc. All of our products are IEC and EMC standard qualified and CE, Rhos, C-tick FCC certified, some are UL certified as well.
West Deer Technology Co., Limited will work with our customers to establish a mutually beneficial relationship. We provide high quality products and an excellent service for partners from all over the world.
