1) Color Temperature: Warm White: 2, 700 ~3, 500K, Cool White: 5, 000~6, 500K
2) CRI: Ra>80
3) Power Factor: >0.8
4) Outdoor Application: IP65 qualified
5) Life Span: 50, 000 hours
6) Warranty: 3 years
7) Certification: CE, RoHS
8) Housing Color: White
Specification

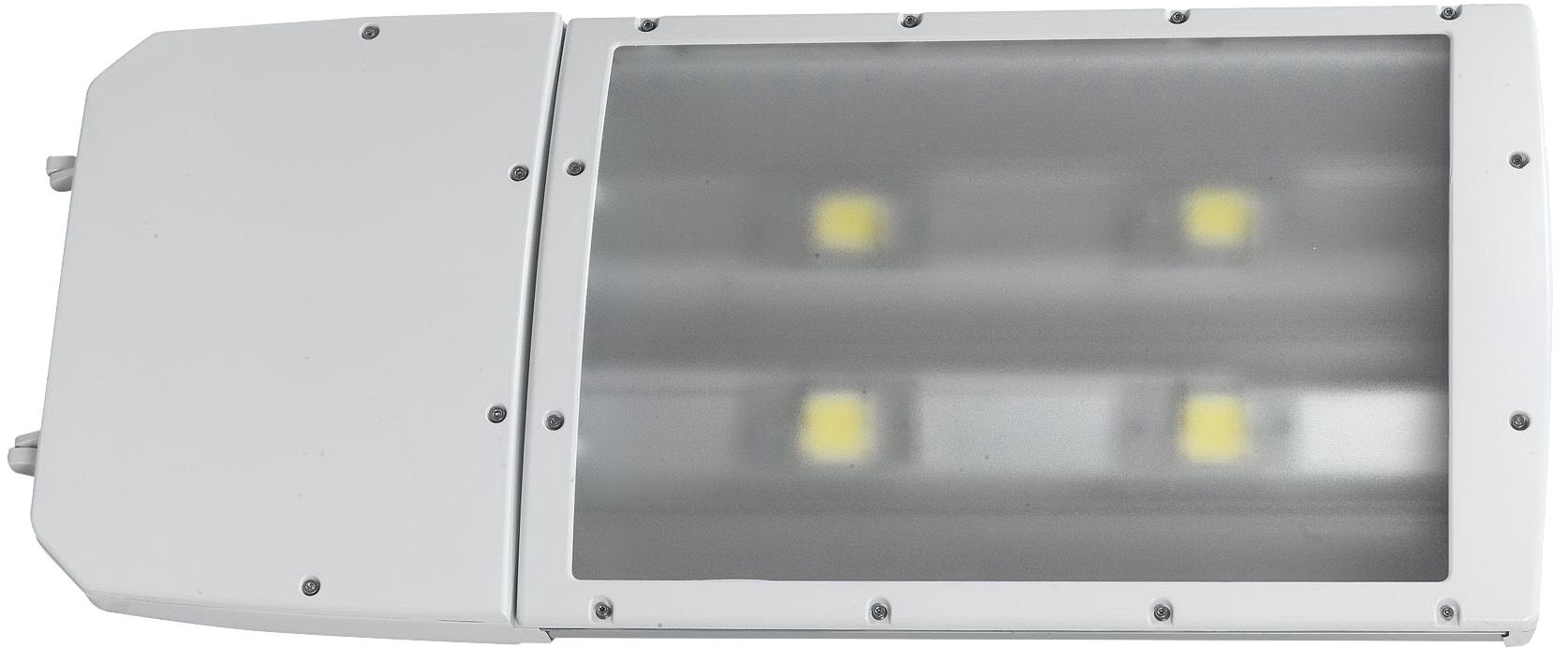

Item Number WD-880SL- 200W
Input Voltage: AC85~265
Frequency Range: 50Hz~60Hz
Total Harmonic Distortion < 9%
Power Factor: >0.98
LED Working Voltage: DC30~36V
LED: 2 PCS Bridgelux SMD LED Source
System Consumption: 218W
LED Consumption: 200W
LED luminous Efficiency: 80~90 lm/W
LED Initial Flux: WW: 13, 800lm CW: 15, 100lm
Lamp Efficiency: >80%
Color Temperature: 2, 700~7, 000K
Color Rendering Index: WW: Ra>68, PW, CW: Ra>75
Light Distribution: Sysmmetric/ Circle
Junction Temperature: < 80 centigrade
Operation Temperature from -40 centigrade to + 55 centigrade
IP Grade: IP65
Life Span: At least 50, 000 hours
Connect Wire: L/N/G
Housing Material: Aluminum
More options for 120, 160, 240W
Package:
Product Size: 868Lx386Wx139H mm
Product Weight: 20.0.0 kg
Pack Size 1PC/ Carton
Carton Size 945Lx460Wx215H mm
Gross Weight / Carton 20.5 kg.
|
Item Number |
WD-880SL-200W |
|
Voltage |
85~265V AC |
|
Lumens |
WW: 13, 800lm CW: 15, 100lm |
|
Average Illuminance |
Height of 8-meter: 42.2 lux Height of 10-meter: 39.2 lux Height of 12-meter: 36.3 lux |
|
Dimension |
868(L)x 386(W)x 139(H) mm |
|
Weight |
20.0kg |
|
LED Type |
SMD Bridgelux Chip |
|
Power Consumption |
200.0W |
|
Note |
More options for 120, 160, 240W |
