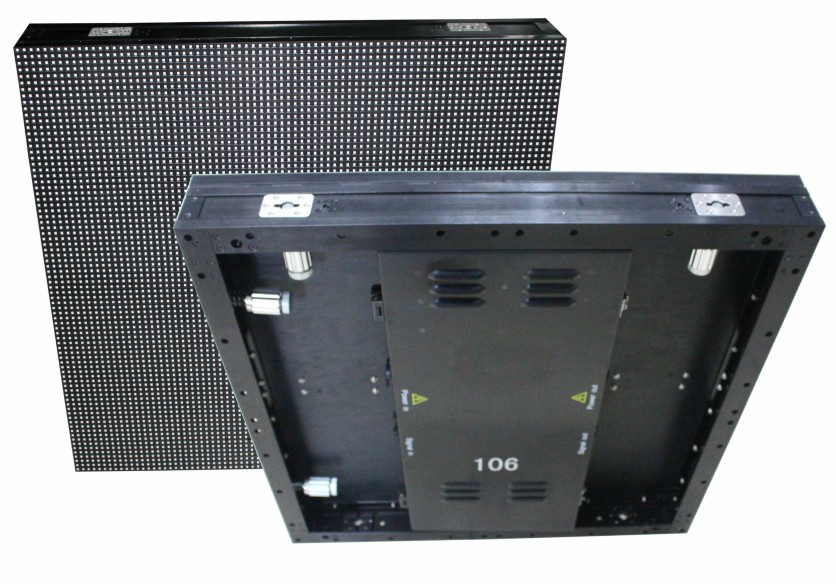

ENBON SMD3535 outdoor Digital Billboard is high end product.It is adopted slim Aluminum cabinet,widely used in rental field,such as stage,exhibition,conference etc..P6.67,P8,P10 are availale.
Other Features:
1.High defintion: P6.67,22478pixels/sqm. P8,5,625 pixels/sqm.P10,10000pixels/sqm.
2.No flat cable deign,more reliable.inside is neat,outside is elegant
3. Ultra-thin and super-light,only 12.5KG/panel of 640*640mm
4. Higher refresh rate: Over 2000Hz/s, no scan line
5. Slim aluminium cabinet,precise and strong
6.Wide viewing angle: 160/140 degree
7. Durable & stable
8. Waterproof Neutrik connectors are optional, better connectivity performance.
9. Excellent waterproof,IP65
10.2 Years warranty.
NO FLAT CABLE DESIGN,MORE DURABLE
| Technical Prameters |
| PROJECT | P8 SMD 3535 diecasting Outdoor LED Digital Display for rental |
| Pixel pitch | 8mm |
| Pixel density | 15625 Pixels/sqm |
| Module size(W*H) | 320 W(mm)*320 H(mm) |
|
| Module pixels(W*H) | 40 Pixels(W)*40 Pixels(H) |
|
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3535 |
| Cabinet size(W*H*D) | 640 W(mm)*640 H(mm) |
|
| Cabinet resolution | 80 Pixels(W)*80 Pixels(H) |
|
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥5000cd/sqm. |
| Power consumption(one cabinet) | Max:1100W/sqm. Average:400W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 12.5Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
