| Price: | US $ 820-860/Square Meter |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Western Union |

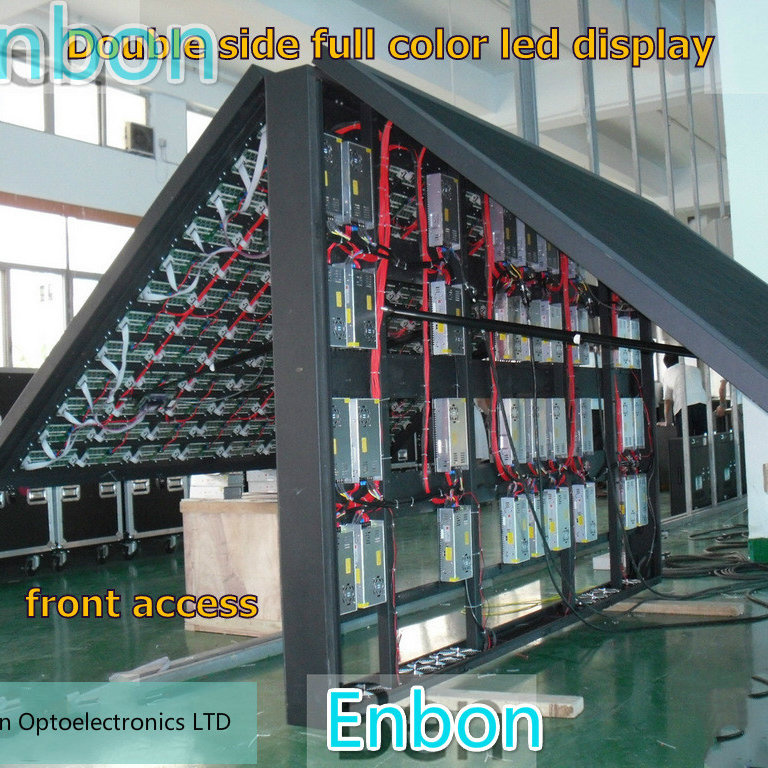

Model | P8 outdoor front access full color led display |
| Pixel pitch | 8mm |
| Pixel density | 15625 dots /sqm |
| Module size(W*H) | 256 mm(width)*128 mm(height) |
| Module pixels(W*H) | 32 dots *16 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/4 scan |
| LED lamp type | Water-proof SMD3535 |
| Cabinet size(W*H*D) | 1024mm*1024mm, it can be customized |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 5500cd/sqm. |
| Power consumption(one cabinet) | Max:1000W/sqm. Average:300W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 55Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet) |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| Prod Model: | P8 outdoor |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: | P8 Outdoor Front Access Full Color LED Display |
| Maintenance Way: | Front |
| Cabinet Size(W*H*D): | 1024W(mm)*1024 H(mm) |
| Cabinet Weight: | 55kg/Sqm |
| Brightness (White Balance): | 5000CD/Sqm |
| Refresh Rate: | 2000Hz /S |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Average Power Consumption: | 350W / m² |
| Pixel Density: | 10000 dot / m² |
| Scanning Mode: | 1/4 Scan |
| Display Type: | LED Video Display |
| Application: | Advertising |
| Certification: | CCC |
| Pixel Pitch: | 8mm |
