Product Description

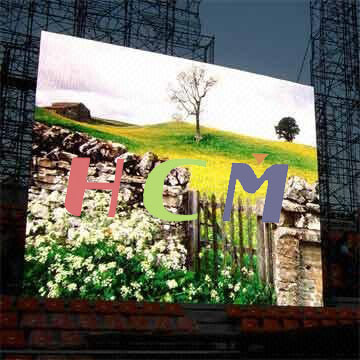

The premium 8mm die casting LED display system for outdoor use.
Fast & seamless assembly, superb image quality, wide viewing angles and unrivalled reliability.
Features:
1,Lightweight and slim, depth in 88mm, 18.5kg/panel.
2,Both hanging-up installation and stacking installation are available. It can support 30 panels for the hanging lock, 300kg.
3,Neutrik Powercon True1 and Ethercon make it reliable and fast connecting.
4,Rotatable hanging lock and manual safety button ensure its fast lock and avoid panels dropping off.
5,Die-casting aluminum frame ensure the flatness of the screen and seamless among panels.
6,High brightness with more than 5000NIT.Water-proof with IP65, can be used indoor and outdoor.
Application Case:
It is Widely use for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station
weiting area, indoor stadium, and a cariety of public facilities and so on.
|
Item |
|
|
|
Model NO. |
P8 |
P10 |
|
Pixel Pitch |
8mm |
10mm |
|
Pixel Configuration |
1R1G1B |
1R1G1B |
|
LED Type |
DIP 246 |
SMD3535 |
|
Density |
15625 dots/m2 |
10000 dots/m2 |
|
Brightness |
>5000NIT |
>4000NIT |
|
Color Temperature |
6500-9500K |
6500-6500K |
|
Scan Method |
1/5 |
1/4 |
|
Cabinet Size |
640x640x88mm |
640x640x88mm |
|
Module Resolution |
40x40 |
32x32 |
|
Cabinet Resolution |
80x80 |
64x64 |
|
Cabinet Weight |
18.5Kg/cabinet |
18.5Kg/cabinet |
|
Max. Power Consumption |
700W/m2 |
700W/m2 |
|
Ave. Power Consumption |
300W/m2 |
300W/M2 |
|
Best View Angle |
H:120 Degrees, V:120 degrees |
H:120 Degrees, V:120 Degrees |
|
Refresh Rate |
480Hz-4500Hz |
480Hz-4500Hz |
|
Gray Scale |
12-16bit |
12-16 bit |
|
Best View Distance |
>8m |
>10m |
|
Protection Level |
IP65 |
IP65 |
|
Cabinet Material |
Die-casting Aluminum |
Die-casting Aluminum |
|
Operation Voltage |
110-220V AC 50-60Hz |
110-220V AC 50-60Hz |
|
Working Temperature |
-20-+50 degrees celsius |
-20-+50 degrees celsius |
|
Working Humidity |
10%-90% |
10%-90% |
|
Signal Input Source |
VGA, DVI, HDMI, SDI, HD-SDI |
VGA, DVI, HDMI, SDI, HD-SDI |
|
Control Distance |
Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km |
Ethernet cable:100m, Multi-mode optical fiber:500m, singel mode optical fiber:20Km |
