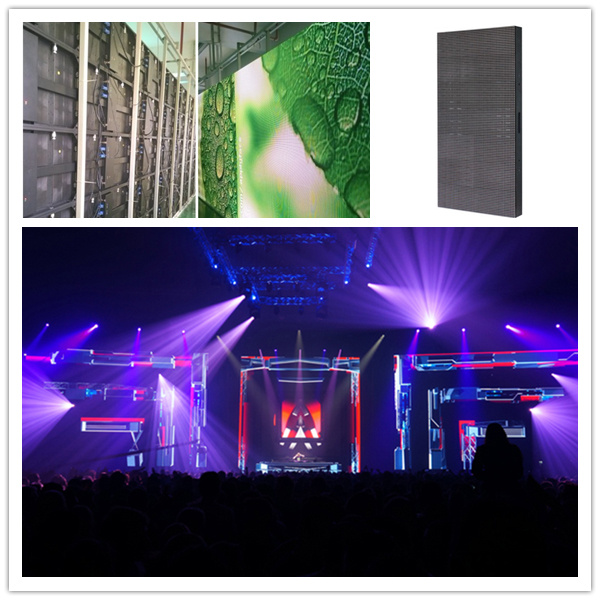

An Series Overview:
An Series (OUTDOOR) are designed with features of thin, lightweight, flexible; Simple and durable structure, 500*1000*68 mm cabinet, 13 kg/panel, could be fast to install and dismantle by one man in a short time without gap. Mostly used in creating large-area backstage, such as Stage, TV Show, Nightclub, etc. The screens and image revealed are true and beauty, creating a dream effect. An series are the best choice of creative designing company.
Features:
1. Lightweight, easy to carry and install, ideal for Events and Shows.
2. Simple Structure and Nice Appearance.
3. Jointed correctly, could be install & dismantle by one person.
4. Brightness is >5000nits, available for outdoor daytime use.
5. Outdoor use, IP65/IP43.
6. Humanized operating interface, easy to operate.
|
ITEM |
An8.92 |
|
Pixel Pitch |
8.92mm |
|
LED type |
RGB 3in1 SMD 3535 |
|
Pixel Density |
12544dots/m2 |
|
Resolution |
112 x56dot |
|
Cabinet size |
1000x500x68mm |
|
Weight |
13 kg |
|
Waterproof rate |
The front screen IP65 ,rear is IP43 |
|
Brightness |
5000Nits |
|
View Distance |
≥9m |
|
Viewing Angle (H/V) |
140°/120° |
|
Gray Scale |
14bit |
|
Color type |
68 Billion |
|
Max.Power Consumption |
250W/PCS |
|
Ave .Power Consumption |
130W/PCS |
|
Refresh rate |
>1960HZ |
|
Gamma |
-5.0~+5.0 |
|
Applied environment |
OUTDOOR |
|
Control System |
Novastar ( Nova studio ) |
|
Controller |
Synchronous display with control PC by DVI |
|
Support Input |
Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
|
Power input |
AC90~260 50/60HZ |
|
Environment |
temperature -10°C~+50°C,humidity 10~90% RH |
|
Operating Life |
50,000hours |
