Features
1> cost performance;
2> high resolution, 17,222dots/m2;
3> easy installation,fast plug and play;
4> rich color to play vivid video advertisement;
5> all kind of signal input;
6> pre-setup play list, easy to handle;
7> no size limitation;
8> various ads available to play, text, picture, video, flash, etc.;
9> widely applied as indoor billboard;
10> long life-span;
Module | Item | Parameter |
| Model Number | HX-P7.62-16S | HX-P7.62-8S |
| Module size | 244mm*244mm | 244mm*122mm/ 244mm*244mm |
| Pixel pitch | 7.62mm |
| Pixels Density | 17222/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3528 |
| Pixel resolution | 32dots(W)*32dots(H) | 32dots(W)*16dots(H) |
| Max Power | 15W | 13W / 18W |
Module thickness
| 17.06mm |
| 28.92mm(with magnetic column) |
| Weight | 0.45kg / 0.25kg |
| Drive type | Constant drive |
| Scan mode | 1/16scan | 1/8scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥800cd/m2 | ≥1500cd/m2 |
| Package of Carton | 467*555*284mm |
| Quantity | 80 pcs |
| G.weight | 19.7kg |

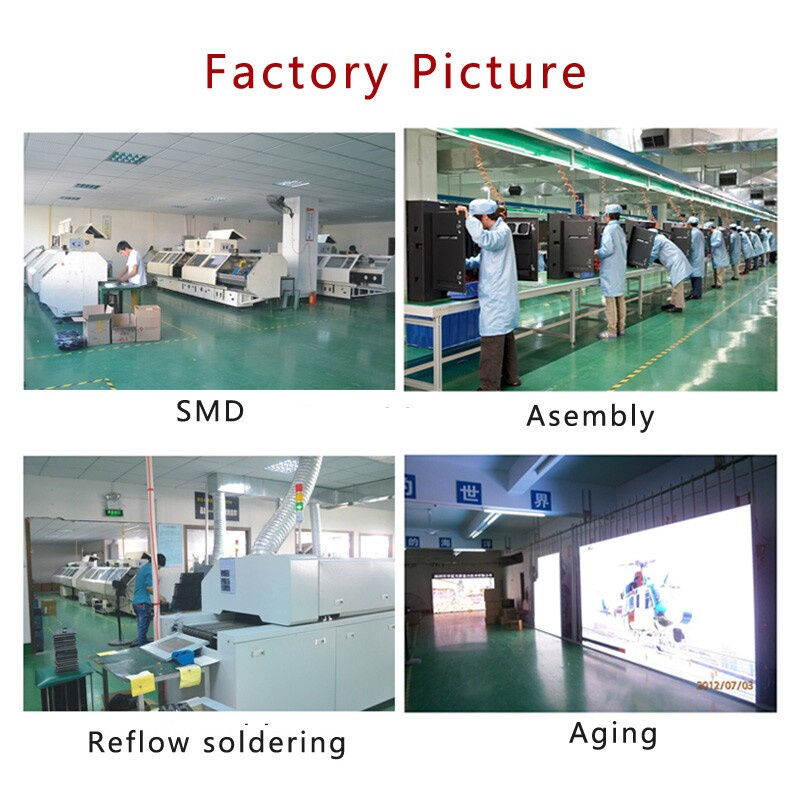

Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
