P4 Indoor Advertising Stage LED Display Screen Panel
| Price: |
US $ 1400-1600/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
P4 Indoor Advertising Stage LED Display Screen PanelFEATURES:1.High cost performance : Adopting high quality led lamps as core material and patent pcb design for the display ,stable capability with lower price
2.High resolution:27777dots/sqm
3.easy installation ,modular design make the installation and maintance easier
4.High stockproof performance :the cabinets must be tested for stockproof performance before shippment to avoid poor contact because of loose of screws and disconnection of cables of cables after long line-hual
5.rich color to play vivid video advertisiment
6.all kinds of singal input
7.no size limitation
8.various ads available to play :text, pictures, video, flash ect.
9.widely applied for indoor billboard

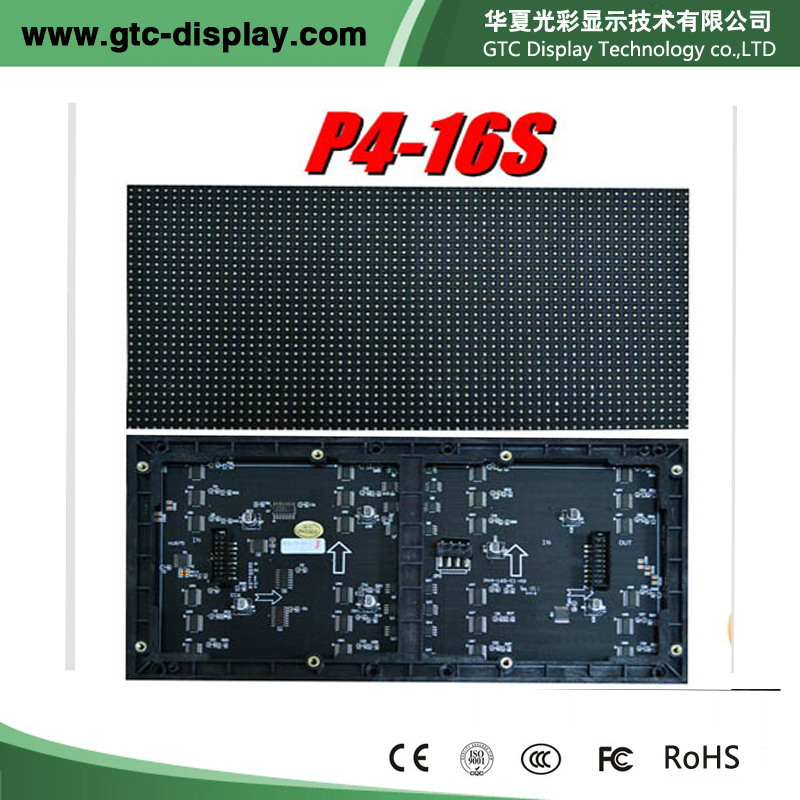

10.Long life-time:more than 100,000hoursProduct Photos :1.module

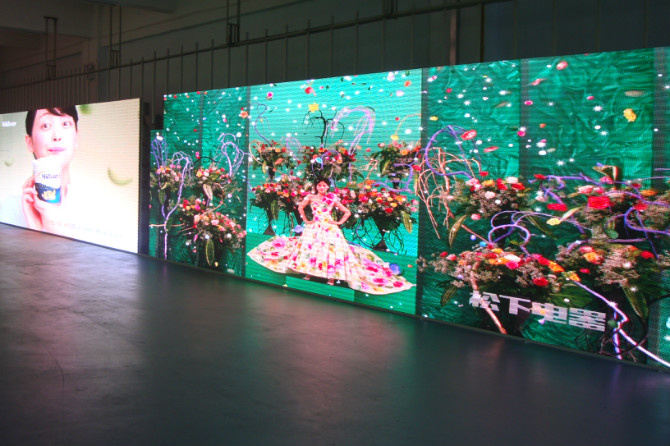

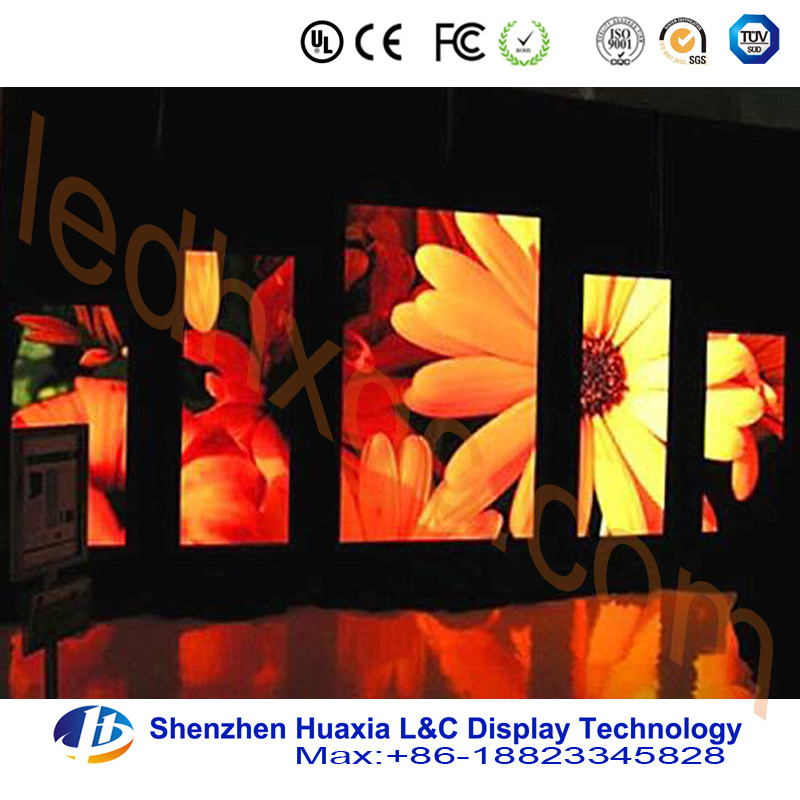

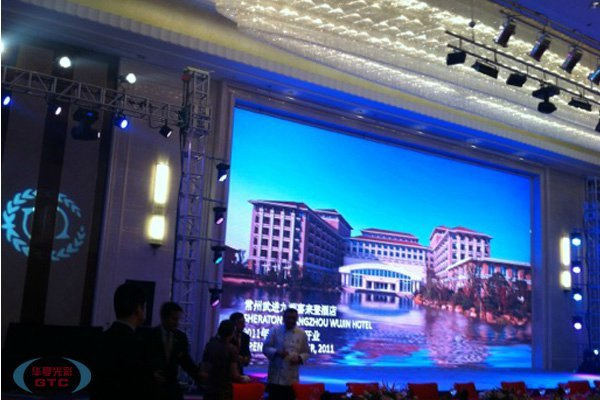

2.led display
| Item | Technical Specification |
Pixel | Pixel pitch: 4mm |
| Pixel configuration: 1R1G1B |
| Brightness: Red: 1000mcd Green: 2300mcd Blue: 600mcd |
| Wave length: Red: 625±2nm Green: 525±2nm Blue: 470±2nm |
| Module resolution: 64×32 pixels |
Module | Module size: 256mmx192mm |
| Cabinet size: 768mm×768mm×110mm |
Cabinet |
| Cabinet material: aluminum |
| Gross weight: 20kg |
| Module quantity: 32 pcs= 4(w) x 8(h) |
| Power consumption : Max.:800W/m² Average: 500W/m² |
Screen parameter | Drive method: 1/4 Constant Current |
| Brightness: 2200cd/m² |
| IC driver: MBI 5024GF |
| Density: 62500 pixel/m² |
| Whole display flatness: ≤ 1mm juncture |
| Best view distance: ≥ 5m |
| Viewing angle: Horizontal: 140° Vertical: 90° |
| Humidity(RH): ≤ 90~95% |
| Working temperature: from -30°C~ +60°C |
| Working voltage: AC220V/110V±20% |
| Refresh frequency: 2400Hz(Zdec) ≥ 300Hz(Linsn) |
| Frame rate: ≥ 540Hz |
| Protection grade: IP45 |
| MTBF: More than 10000hrs |
| Life time: 100,000 hrs |
Control system | Control system: Linsn |
| Signal interface: DVI/LAN |
| Communication distance: Internet cable: ≤120m / Fiber cable: 1000m |
Systems operating platforms : XP,WINDOWS(WIN95,WIN98,WIN2000)
|
| Prod Model: |
HX-P4-102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Configuration: |
1r1g1b |
| Package Mode: |
SMD2121 |
| Module Size: |
256mm X 128mm |
| Gross Weight: |
0.154kg |
| Module Thickness: |
14.85mm/27.15mm |
| Brightness: |
2200CD/Sqm |
| Max Power Consumption: |
12W |
| Warranty: |
2 Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/16 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
4mm |
| Pixel Density: |
27,777 dots / m² |
| Application: |
Advertising |
| IP Rating: |
IP43 |
| System Operating Platform: |
WIN XP |
Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
