| Price: | US $ 700-1100/Square Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Square Meter |
| Pay Type: | L/C,T/T,Paypal,Western Union |
Product Description
Indoor full color led display features
Shenzhen CLC display is specialized in LED display, LED display screen, indoor/outdoor led display, advertising led display and LED billboard. we offer good products and customized solution that meet our customer s requirements.
The LED application products research and develop by CLC display has full range and structure diversification, its products cover LED full color display for indoor and outdoor, LED advertisement display, LED stage display, LED irregular-shape display, LED display for taxi, LED sports display, LED traffic information display, which has been dominated in demestic and international market in this industry.
Outdoor LED Display Feature
1. CLC full color indoor led display has high brightness and adjustable contrast. This model has a good lighting accordance and has no mosaic.
2. CLC indoor LED display has larging view angle, it also has a better viewing effect for text, graphic and video ects, any LED in each pixel can be respectively repaired.
3. Computer VGA indoor display with real-time synchronization output, and applies to all types of Internet connections with the media to transmit real-time information.
4. CLC led screens have brightness strong, static driving scan mode, larger power-driven.
5. In the visual distance of the full color LED sign surface direct sunlight, display clearly visible.
6. A gray 4096 super Grey scale control and Y unlined correct function, color display more than 16.7 trillion, close to natural color.
7.CLC led display screen has automatic brightness adjustment function, in different light conditions can attain the best effectives.
8. CLC full color led display can widely used in stadium, bank, school, restaurant, shopping centre, station, goverment, entertainment centres and so on.
9. CLC is a professional LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display manufacturer.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. CLC can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-18 working days

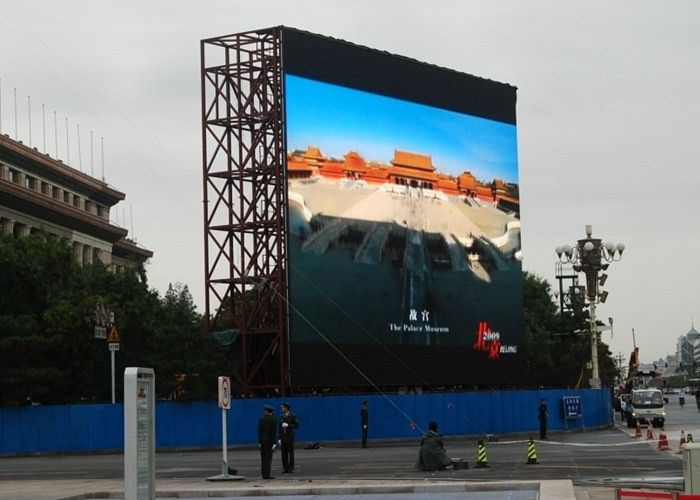

Projects of CLC led display
OUTDOOR P10 SMD 3IN1 TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | HX-P10-S4S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16 dots(H) | |
| Max Power | 20W | |
| Module thickness | 17.05mm | |
| Weight | 0.37kg | |
| Drive type | Constant drive | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥7000cd/m2 |

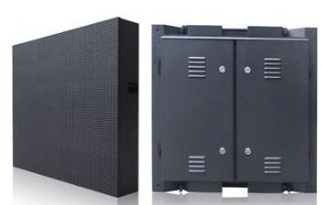

| LED Cabinet | Dimension | 640mm*640mm |
| Module Number per cabinet | 8 | |
| Power supply | 5V/40A*1 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 64mm*64mm | |
| Best viewing distance | 10M~50M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature | storage:-35ºC~+85ºC working:-20ºC~+50ºC | |
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 120W/ | |
| Max.Power consumption | ≤390W/ | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
| Prod Model: | HX-P10 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 320mm X160mm |
| Package Mode: | SMD3535 |
| Aplication: | Outdoor |
| Gross Weight: | 0.9kg |
| Module Thickness: | 15-20mm |
| Brightness: | More Than 7000CD/Sqm |
| Life Time: | More Than 100,000hours |
| Warranty: | 2 Years |
| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Certification: | CCC |
| Pixel Pitch: | 10mm |
| Display Function: | Video Display |
| Application: | Advertising |
| Scanning Mode: | 1/2 Scan |
| Pixel Density: | 10000 dot / m² |
| Average Power Consumption: | 300W / m² |
