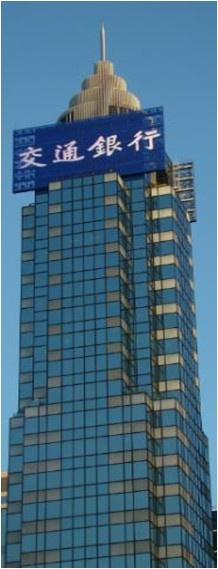

Retop design team select 65mm pixel pitch for Bank of Communication, which can present stunning images, video. To adapt the harsh evironment in HongKing, specially developed techniques enables weather proof sealing of LED strips and modular frame base against the harshest environment.
|
Item |
ST65 |
|
LEDs |
Type |
DIP |
|
Manufacturer and origin |
Nichia |
|
Display |
Pixel pitch |
Physical: 65mm |
|
Physical pixels per sq. m |
236dots |
|
Pixel configuration |
3R3G2B |
|
Dimension |
18.3m(W) x9.36m (H)/face |
|
Brightness |
≥ 3, 000cd/m2 |
|
Viewing angle (50% brightness) |
Horizontal: ≥ 140° ; Vertical: ≥ 70° |
|
Grayscale |
16 bit |
|
Colors |
281 trillions |
|
Grey scale (linear) |
65, 536 levels per color |
|
Display refresh rate |
≥ 4000Hz |
|
Frame rate |
60 fps |
|
Input Power requirement |
AC 110 or 220 V ± 10%, 50 to 60 Hz |
|
Lifetime (50% brightness) |
100, 000 hours |
|
Out-of-control pixel |
≤ 0.1‰ |
|
Ambient condition |
Temperature: -40° C to +60° C; Humidity: 10%to 90%RH |
Welcome to Retop LED Display-your one stop solution provider for all things LED related. As a renowned manufacturer in the growing Chinese industry, we have completed more than 10, 000 worldwide installation projects over the span of nearly 2 decades. In the pursuit of excellence, we succeeded in breaking numerous industry records. Retop is widely acknowledged as a world-leading designer and producer of high quality LED screens. Our target markets include sports, advertising, rental & stage, etc. To learn more, please ask us about our fully featured customization options!
Through vertical integration Retop is able to optimize the industrial chain. Our scope of expertise ranges from LED wafers & chips to LED control systems, LED lamps, LED encapsulation, and LED displays.
Retop is a publicly listed LED display manufacturer. We are fully integrated with our parent company Elec-Tech. Headquartered in Wuhu city, our facilities cover an area of 120, 000 square meters. We proudly declare our production base to be the largest in mainland China. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 9 years, we have made steady progress in the
Development of overseas markets. Our success can largely be attributed to an outstanding reputation and a diverse client base.
Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. Retop products are approved by CE, UL, CCC, EMC, ETL, and FLL. We are fully certified by ISO standards.
