| Price: | Negotiable/Square Meter |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 5/Square Meter |
| Pay Type: | T/T |

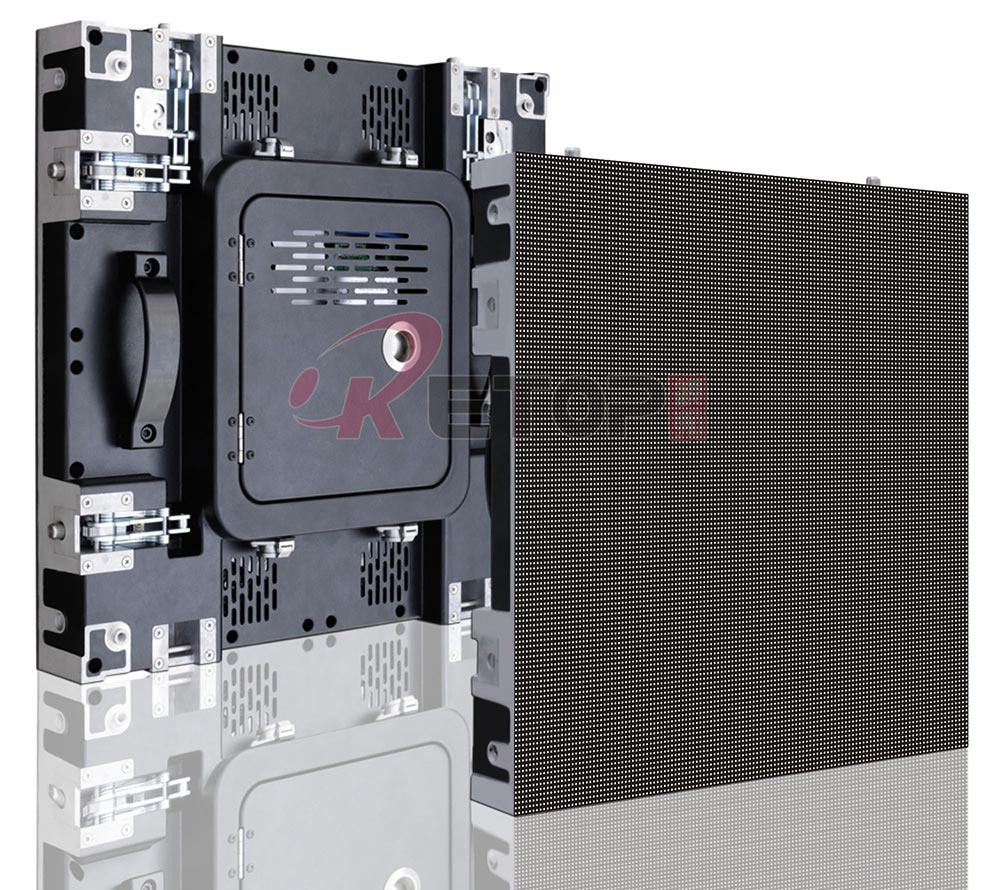

Retop High-Precision (HD) SMD Indoor LED Display Screen (480*480)
Including: OTL2.5/OTL1.8
Application: Public signal publishing platform, Traffic monitor scheduling, military commanding agency, Video meeting system, television studio, senior market and so on.
R&D background: With the development of the high-light LED Display may use in the outdoor environment and extensive area no gap connection technology improve. The LED display will be applied more extensive in the major fairs just like the Beijing Olympic Games, Shanghai World Expo, Guangzhou Asian Games and so on.
Product Feature:

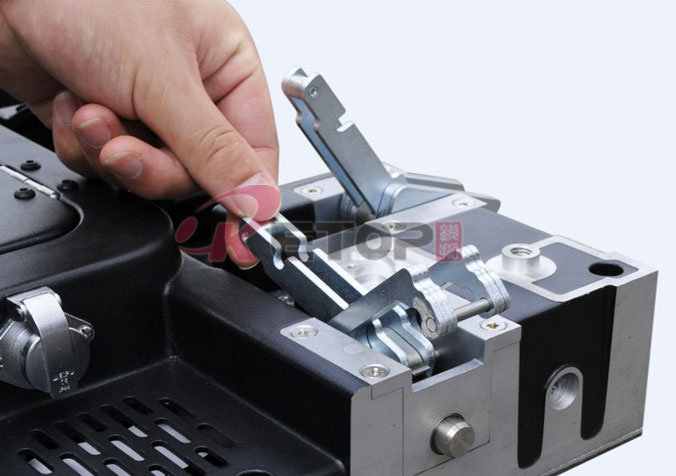

1. The particular cabinet connection design makes the cabinet connect tighter and the connection error is 0.1mm.

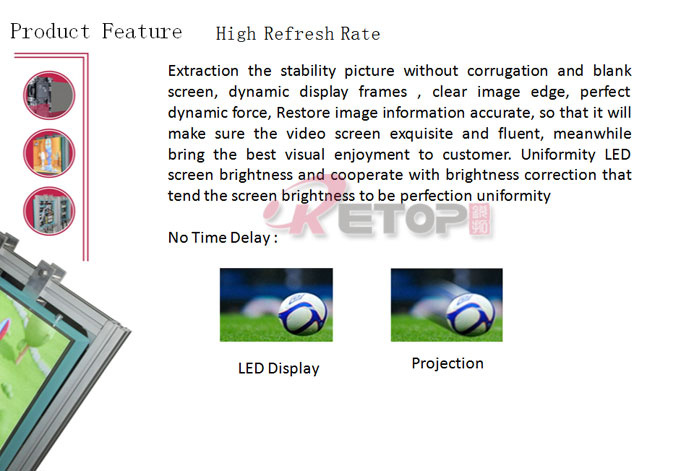

2. High Refresh Rate
3. Retop's own LED Display systems transmit without delay, gorgeous color, 16 bit gray scale and including remote wireless control function.
4. There are two special design mini power supply inside each cabinet, low noise without fans, Strong heat with special alloy material design.
5. Retop has 17 years LED Display manufacture experiences, abundant structure design experiences, stable component and years of screen using data so that it ensure our product have a longer lifetime. Generally the LED Sign will damage in low rate, even if we should only repair the module or other component, so that less charge will spend in the upper maintenance.
6. The picture will clearer and stronger after cooperate with the color correction technology.(More product information.
| 2.5,1.8mm High-precision | ||||
| OTL 2.5 | OTL 1.5 | |||
| LED | LED Type | SMD 0404 LAMPS | SMD 0404 LAMPS | |
| BOARD | Pixel confguration | 1R1G1B | 1R1G1B | |
| LED driving method | 32Sdynamic scan | 32Sdynamic scan | ||
| Pixels | 96*64(W*H) | 128*64(W*H) | ||
| Pixel pitch | 2.5mm | 1.5mm | ||
| LED boardsize | 240*160mm | 240*96mm | ||
| MODULE | LED boards | 2*3 | 2*5 | |
| Pixels | 192*192(W*H) | 320*320(W*H) | ||
| Module size | 480*480*90mm | 480*480*94mm | ||
| Module area | 0.2304m² | 0.21m² | ||
| Net.weight | 9KG | 9.2KG | ||
| Power | AC220/110±10%,47-63Hz | AC220/110±10%,47-63Hz | ||
| Serviceability | Rear service | Rear service | ||
| DISPLAY | Max.Power consumption | ≤859.4W/m² | ≤1107.6W/m² | |
| Ang.power consumption | ≤257.8W/m² | ≤332.3W/m² | ||
| Max.Current(208V-60Hz) | 3.9A | 5.03A | ||
| Hor.Viewing angle | 120º | 120º | ||
| Vert.Viewing angle | 120º | 120º | ||
| Brightness | ≥1200CD/m² | 2500CD/m² | ||
| Pixel density | 160,000/m² | 444,444/m² | ||
| Power factor | >0.95 | >0.95 | ||
| Certifcations | UL,CE,ETL,ROSH,CCC | UL,CE,ETL,ROSH,CCC | ||
| Contrastration | 3000:1 | 3000:1 | ||
| Operation temperature | -20ºCto+60ºC | -20ºCto+60ºC | ||
| Operation humiduty | 20% to 90% | 20% to 90% | ||
| Lifetime(50% brightness) | 100,000 hours | 100,000 hours | ||
| Processing | 16bit | 16bit | ||
| Colors | 281Trillion | 281Trillion | ||
| Refresh rate | ≥2500Hz | ≥2500Hz | ||
| Frame rate | 60fps | 60fps | ||
| Brightness level | Manually 100 levels,automatically 16 levels | Manually 100 levels,automatically 16 levels | ||

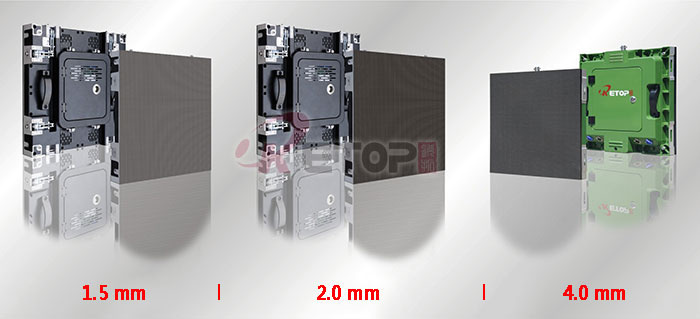

| Prod Model: | 1.5mm/2.0mm/2.5mm |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: | 480*480*90mm |
| Hor.Viewing Angle: | 120º |
| Vert.Viewing Angle: | 120º |
| Brightness: | 1200CD/M² |
| Processing: | 16 Bit |
| Refresh Rate: | 2500 Hz |
| Name: | LED Display/LED Display Indoor/LED Sign Display |
| Tube Chip Color: | Full Color |
| Display Function: | Video Display |
| Application: | Stage Performance |
| Pixel Configuration: | 1R,1G,1B |
| IP Rating: | IP43 |
| Scanning Mode: | 1/32 Scan |
| Pixel Pitch: | 1.8mm/2.5mm |
| Certification: | UL, EMC, CCC, CE, ETL, RoHS |
| Pixel Density: | 160, 000 Dots/M² |
| System Operating Platform: | Windows 7, Windows XP |
