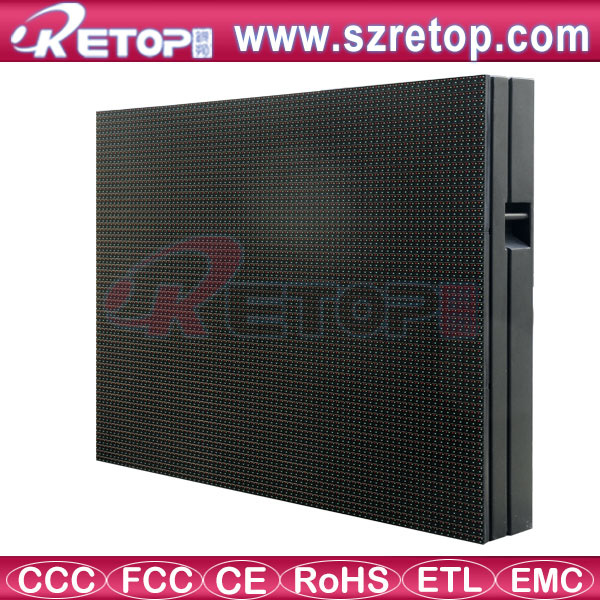

Ideally for any indoor display applications, from concerts to stage performances, 3-in-1 SMD displays are the perfect LED rental display solution for attracting viewers' attention, adding significant value to any indoor event.
The SMD lamps bring exceptional color and wide viewing angles.
Excellent images and cost-saving convenience make the SMD display the best choice for any number of indoor applications.
Moreover, the ultra high resolution LED panels deliver unsurpassed image quality, while the fan-less designs run absolutely silently, invariably a key requirement for indoor applications.
1 Modular design facilitates quick installation and disassemble
2 High reliability with the data hot backup, to avoid any communication risks during the show
3 High refresh rate up to 2400Hz, completely flickering-free for live video
4 Superb brightness and color uniformity, pixel calibration before delivery
|
Resolution |
10 mm |
|
LAMP |
LED Type |
SMD 3-in-1 |
|
Wave length |
R: 620 nm |
|
G: 524 nm |
|
B: 468 nm |
|
BOARD |
Pixel configuration |
1R1G1B |
|
LED driving method |
1/4 dynamic scan |
|
Pixels |
32 |
* |
16 |
(W*H) |
|
Pixel pitch |
10 |
mm |
|
Led board size |
320 |
mm |
* |
160 |
mm |
* |
16 |
mm |
|
(W*H*D) |
|
MODULE |
Led boards |
2 |
* |
6 |
(W*H) |
|
Pixels |
64 |
* |
96 |
(W*H) |
|
Module area |
0.61 |
sqm |
|
Module size |
640 |
mm |
|
* |
960 |
mm |
|
* |
166 |
mm |
|
(W*H*D) |
|
Net weight |
31 |
kg |
(aluminum) |
/ |
39 |
kg |
(ferrum) |
|
Power |
AC220/110 ± 10%, 47~63Hz |
|
Water proof |
N/A |
|
Serviceability |
Rear service |
|
DISPLAY |
Max. power consumption |
R |
≤ |
810 |
W/sqm |
N |
≤ |
1010 |
W/m2 |
C |
≤ |
850 |
W/sqm |
|
Avg. power consumption |
≤ |
284 |
W/sqm |
≤ |
354 |
W/m2 |
≤ |
298 |
W/sqm |
|
Max. current (208V 60Hz) |
≤ |
4.33 |
A/sqm |
≤ |
5.40 |
A/m2 |
≤ |
4.54 |
A/sqm |
|
Hor. viewing angle(min 50% brightness) |
140° |
|
Vert. viewing angle(min 50% brightness) |
140° |
|
Brightness |
≥ 1500 cd/sqm |
|
Pixel density |
10000 |
/sqm |
|
Power factor |
> 0.9 |
|
Certifications |
UL, CE, ETL, ROSH, CCC |
|
Contrast ratio |
2000: 1 |
|
Operating temperature |
-20º C to +60º C |
|
Operating humidity |
20% to 90% |
|
Lifetime (50% brightness) |
100, 000 hours |
|
Processing |
16 bit |
|
Colors |
281 trillion |
|
Refresh rate |
≥ 2400 Hz |
|
Frame rate |
60 fps |
|
Brightness level |
Manual 100 levels, automatically 16 levels. |
