Overview:

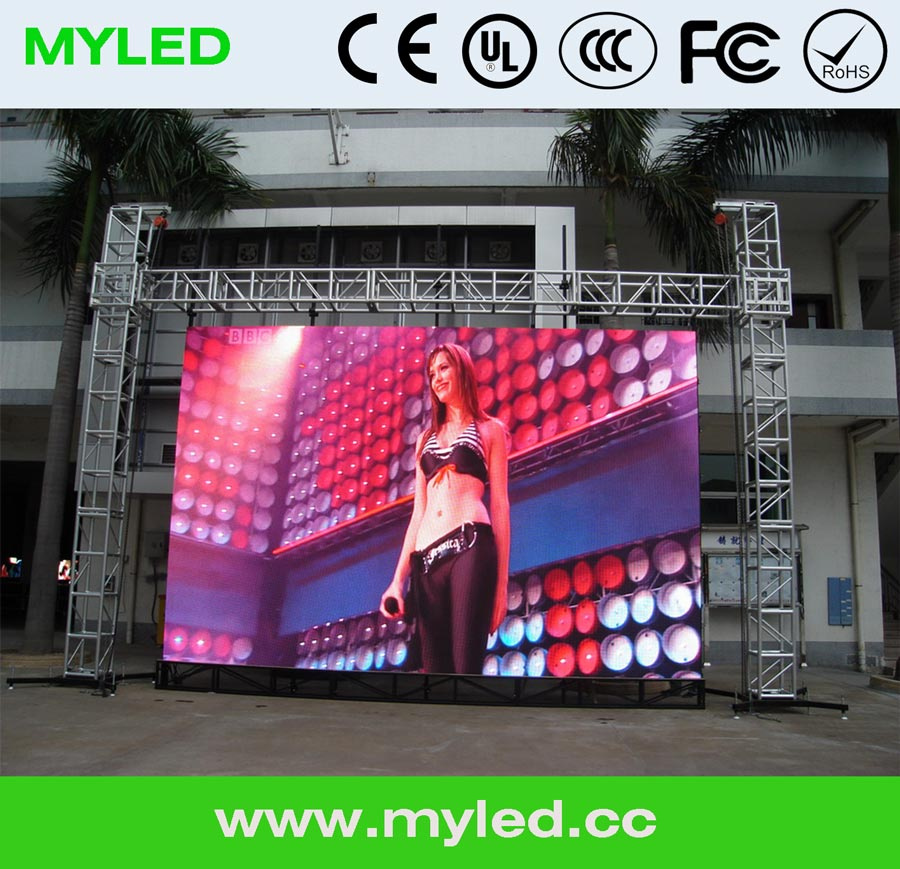

An Series (indoor) is the light-weight and super-thin led display screens, which are very popular for video rental business and large square applications. Jointed correctly, easy to install and dismount. Simple structures are the main features of the screens. The unit size of the screen is 500mm*1000mm*65mm, while the weight is only 13kg/panel. An Series (indoor) are popular to install on entertainment areas, such as TV stages and clubs. The video performances of the An Series screens are brilliant, pretty clear, and real. An Series (indoor)is the best choice for creative designing company to achieve large square video show.
Features:
1. Super thin lightweight body --- 7.5 kg/pc with precise die-cast aluminum;
2. Super clear HD image effect --- wide viewing angle 140° /140° , no mosiac, seamless image effect;
3. Fast set-up & take-down --- 2 men can finish large whole screen, save labor cost and time;
4. Multi - installation ways --- hanging & vertical installation;
5. High brightness, refresh rate, high video quality even for live show;
6. Easy maintenance & professional aftersale service;
7. Popular in stage rental bussiness, with high quality and competitive prices.
Advntages:
1. HD video effect.
2. Easy installation, freight &labor saving.
3. Highly cost effective.
4. Seamless connection.
Main Application:
1. As stage background for various stage shows, commercial events, entertainment activities and places, Concerts, persentations, celebrations, especially for live events;
2. For rental stage background, fixed indoor advertising board, window showcase, home TV, showroom etc.
Item | An3.9 | An4.8 | An5.2 | An6.9 |
| Pixel Pitch | 3.9mm | 4.8mm | 5.2mm | 6.944 mm |
| LED type | SMD 2121 | SMD 3528 | SMD 3528 | SMD 3528 |
| Pixel density/sqm | 65536 | 43264 | 36884 | 20736 |
| Brightness | 900 Nit | 900 Nit | 900 Nit | 1300 Nit |
| View distance | ≥ 4m | ≥ 5m | ≥ 6m | ≥ 7m |
| Weight | 13kg | 13kg | 13kg | 10 kg |
| Max. Power | 250 W /panel | 250 W / panel | 330 W / panel | 120 W / panel |
| Ave. Power | 130 W / panel | 130W / panel | 170W / panel | 60 W / panel |
| Panel Size | 500 mm x 1000 mm x 65mm |
| LED Configuration | RGB 3 in 1 |
| Viewing Angel | 1 4 0° (H) /1 2 0° (V) |
| Gray Scale | ≥ 14bit |
| Refresh rate | ≥ 1 9 2 0H z |
| Color temperature | 8000K ± 500( can be customized ) |
| Waterproof rate | IP43 |
| Input Voltage | AC 110V/2 20V ± 10% |
| Working Environment | temperature-1 0 ° C ~+5 0 ° C, humidity 10~9 0 % RH |
| Lifetime | > 50, 000 hours |
| Certificate | CE |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
