P6 HD Full Color Advertising Indoor LED video Display from ENBON, our color LED display gets high refresh rate>2000Hz/S, no scaning line when photoed. It's perfect for TV station or live concerts. We use Epistar+Silan LED lamp so the LED panel quality is high, brightness over 2500nits. 16 bits color. It is on promotion, price is good. Welcome to send an inquiry
Features:
1. Thinner cabinet design, elegant and lighter. With fast locks, the surface is very smooth
2. High resolution, 6mm. 27777pixels/sq. M, With high density, High definition LED display panel is able to produce quality graphic & video.
3. Large viewing angle, Up to 140° (Horizontal & Vertical) and even at 160 degree, it is still good because we open mold for the plastic mask and frame.
4. High reliability, fully produced by auto-machine, SMD LED is with high uniformity, stability & reliability, that guarantees the perfect performance of the screen.
5. Low Power Consumption, can save energy extremely, and advocate environment-protection.
6. P6 LED display panel takes with fast heating spread, to protect screen effectively and increase the use life largely.
7. ENBON P6 is designed as slim body & lighter weight, Easy maintenance, Long use life.
8. Can show all kinds of word, text, graph, pictures, flashes, video, 2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.
9. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.
10. Applications indoor, It can be used in advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
|
Technical Prameters |
|
PROJECT |
P6 indoor color LED video display |
|
Pixel pitch |
6mm |
|
Pixel density |
27777 Pixels/sqm |
|
Module size(W*H) |
192 W(mm) |
96 H(mm) |
|
Module pixels(W*H) |
32 Pixels(W) |
16 Pixels(H) |
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
constant current driving 1/8 scan |
|
LED lamp type |
SMD3528 |
|
Cabinet size(W*H*D) |
960 W(mm) |
768 H(mm) |
|
Cabinet resolution |
160 Pixels(W) |
128 Pixels(H) |
|
Color scale |
65,536 degree |
|
View angle(H/V) |
140/120 degree |
|
Brightness (White balance) |
≥2500cd/sqm. |
|
Power consumption(one cabinet) |
Max:1000W/sqm. Average:350W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Net weight |
39 Kg/M 2 for Iron cabinet |
|
Operating temperature |
-20°C----+50°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
5,000 hours |
|
Whole Display Flatness |
≤0.3mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥1200Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50--60Hz |
|
LED control system |
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP31 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

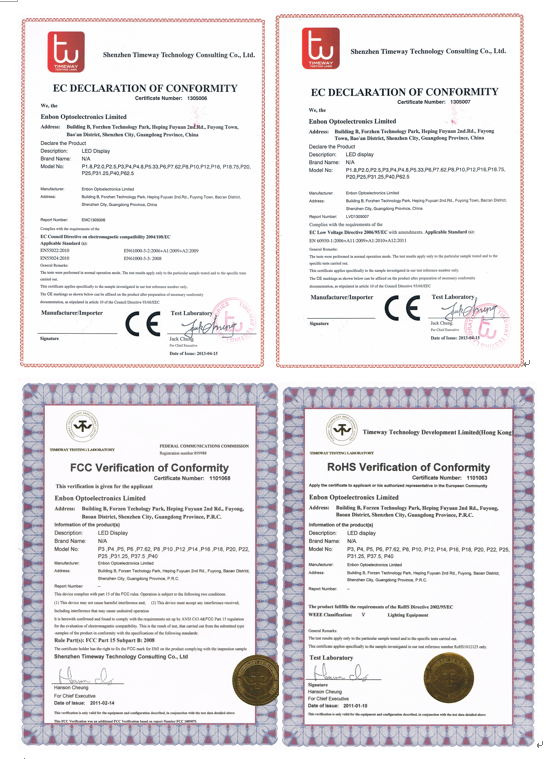

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
