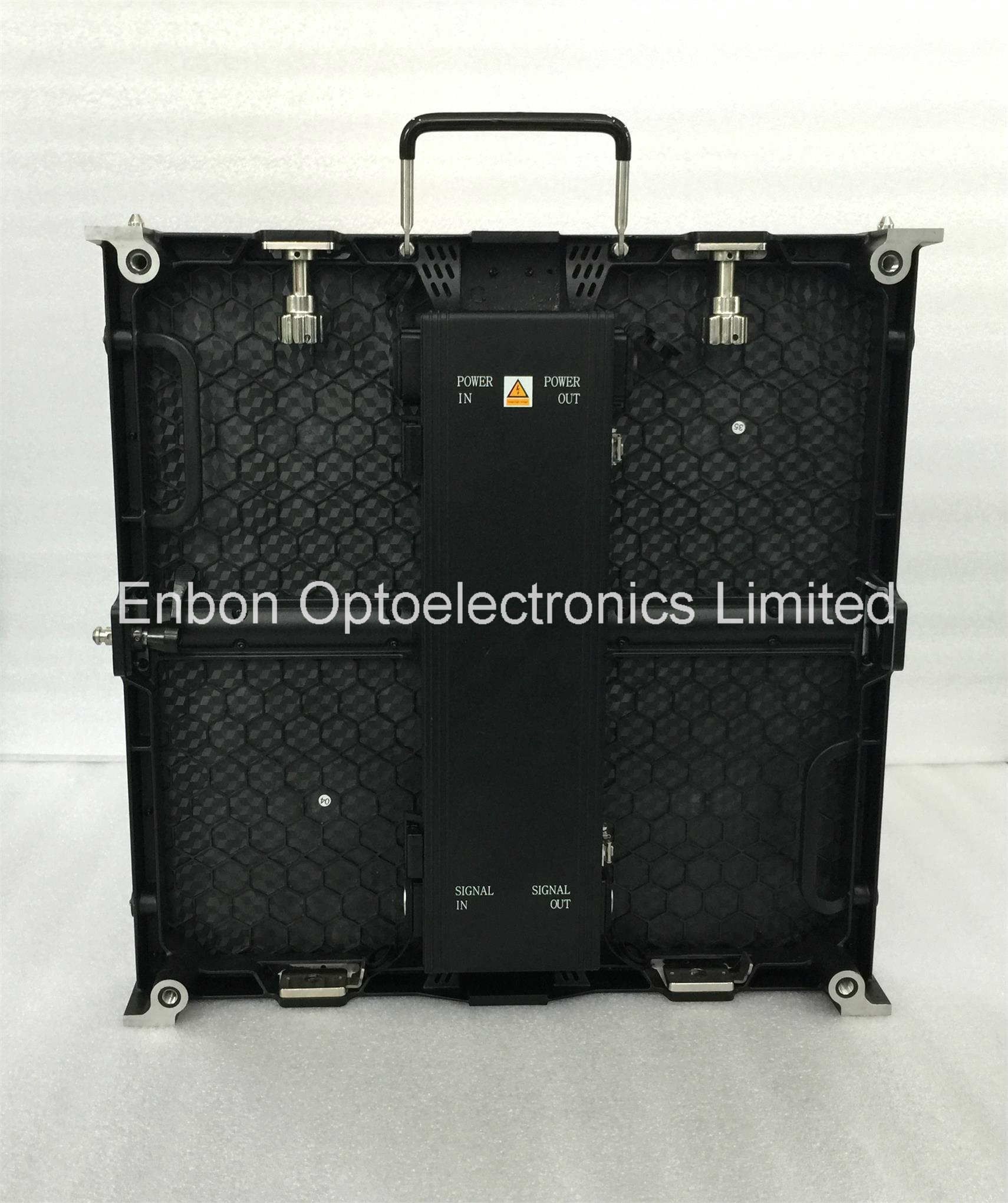

P6.25 Indoor /Outdoor LED Display with 500*1000mm/500*500mm
P6.25 Outdoor LED Advertising led video wall to show TV, popular to be used in plaza, square, school etc. ENBON is the company you can count on for high quality LED panel at very competitive prices;
Features:
1. Outdoor full color LED Display, high brightness, visiable under direct sunshine
2. Coated iron cabinet with waterproof backdoors, cost is ecnomic
3. Higher contrast rate, High definition, showing sharp image quality
4. High refresh rate: Over 2000Hz/s, no scaning line when photographed
5.16384 grey scale, 16 bit color, bringing amazing viewing experience.
6. Excellent waterproof standard, IP65 front and IP54 at the rear side
7. With fast locks and waterproof connectors, very easy to install and dismantle
8. MBI5020, MBI5024, MBI5041, MBI5050 are optional
9. Single lamp can be repaired.
10. We offer 2 Years warranty.
Technical Parameters |
| PROJECT | P6.25 outdoor LED display panel |
| Pixel pitch | 6.25mm |
| Pixel density | 25600 Pixels/sqm |
| Module size(W*H) | 250 W(mm) | 250 H(mm) |
| Module pixels(W*H) | 40 Pixels(W) | 40 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving static scan |
| LED lamp type | SMD3535 |
| Cabinet size(W*H*D) | 500 W(mm) | 1000 H(mm) |
| Cabinet resolution | 80 Pixels(W) | 160 Pixels(H) |
| Color scale | 16,384 degree |
| View angle(H/V) | 140/140 degree |
| Brightness (White balance) | ≥5000cd/sqm. |
| Power consumption(one cabinet) | Max:800W/sqm. Average:320W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 32 Kg / M 2 for cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / window 8/8.1 , windows10 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
