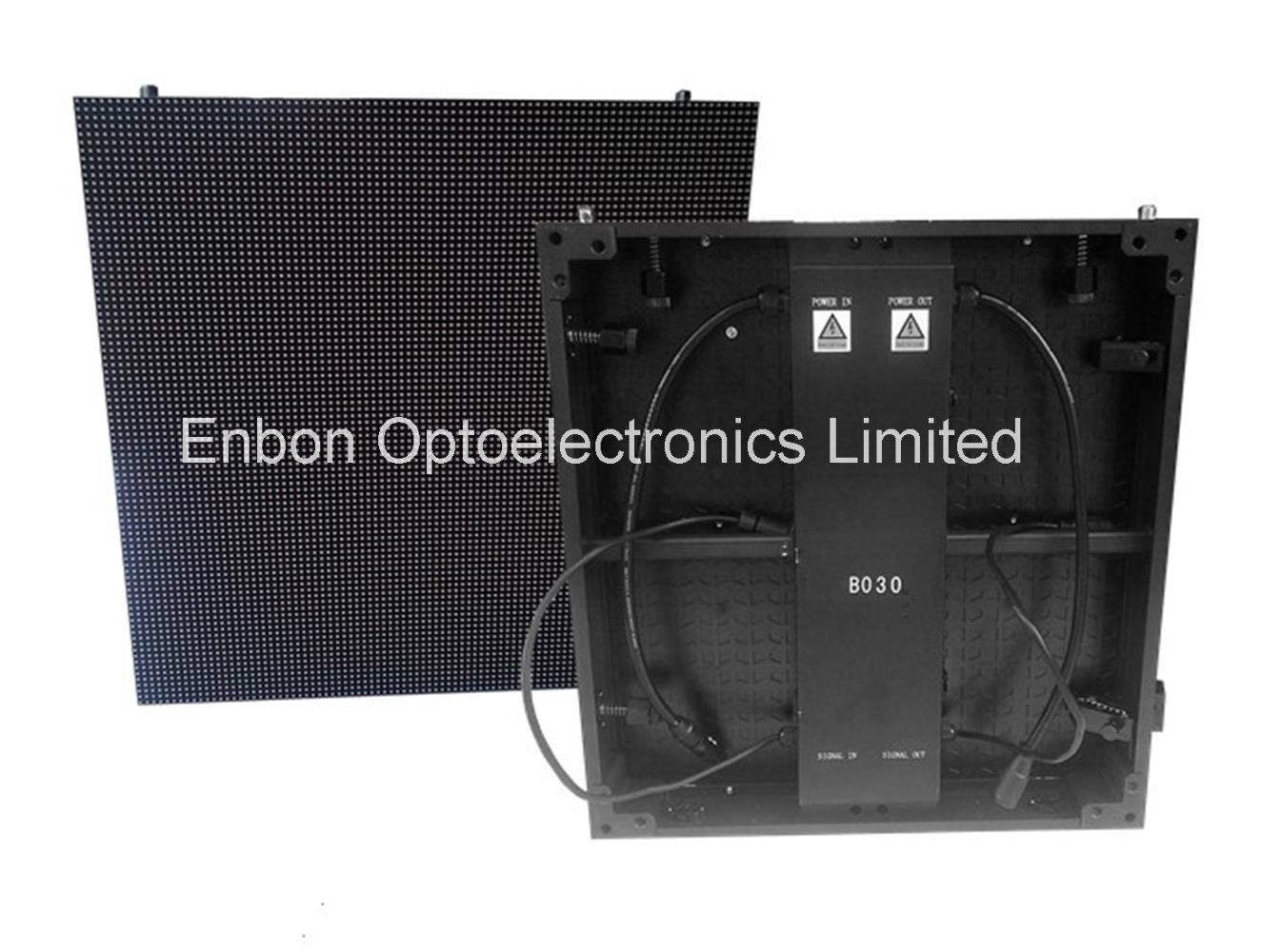

P5.68 (500*500cabinet size) Indoor Flexible LED Video Display For Rental
ENBON P5.68, combining ultra-lightweight design with remarkable high-performance and cost-efficient, this LED display quickly became the most popular type. By offering the deepest black level with extremely high contrast ratio of up to 5, 000: 1. With output of 1, 200 Nits and 16 bit color processing, this LED video display is sure to deliver the super amazing image quality in any indoor setting.
* Just 8kg / Cabinet, 60mm thickness;
* With fan or without fan are optional;
* Easy assembly, easy dismantle;
* New system, high refresh rate, true color output;
* Neutrik connectors are optional, better connectivity
* competitive price and 2 years warranty.
* It is very easy for 4: 3 or 16: 9
ENBON invents in developing die casting aluminum cabinet indoor LED video wall, to enter high-end market. At present, more and more high-end LED video wall adopts a relatively high precision die-casting process, the use of molds forming a more secure cabinet flatness, keeping tolerance control, basically solved the problem in cabinet patchwork; Also, die-casting Aluminum cabinet breakthrough the traditional one, with a more beautiful appearance. Besides, aluminum alloy still remains stable performance, in air and higher temperatures, not like to iron rusty.
ENBON die casting aluminum cabinet LED display screen has the following advantages:
1. The new structure design enables diversified installation to meet the hanging-up and stacking requirements, can be applied to achieve a variety of different occasions to meet various application requirements.
2. User-friendly design, more convenient installation, more efficient and secure; High strength, high toughness, and deformation; More reliable cabinet patchwork and cable connection,
3. Cabinets adopt rapid assembling sets, Which can be beautiful but also a real rapid disassembling.
4. Good thermal design. Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation.
5. The entire cabinet with die casting aluminum alloy material is more lightweight and practical.
6. Compact base design, so that the whole screen space can be smaller a lot.
7. Higher IP rating; New system, High refresh rate, High brightness, True color output; Breathtaking gray level
8. Low. Has excellent heat dissipation design and performance. It is low noise and doesn't need external fan or air-condition. With the features of lightweight and low power consumption, it can reduce the labor cost of installation and operating cost.
9. The same size cabinet can be compatible with different specification displays of different DOT pixels. (P3.9, P4.8, P5.2, P6.25)
Die Casting Aluminum Cabinet LED Display screen
| Technical Prameters |
| PROJECT | P5.68 indoor LED screen display for rental |
| Pixel pitch | 5.68 mm |
| Pixel density | 30976Pixels/sqm |
| Module size(W*H) | 250 W(mm) | 250 H(mm) |
| Module pixels(W*H) | 44 Pixels(W) | 44Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/11 scan |
| LED lamp type | SMD(Black Body) |
| Cabinet size(W*H*D) | 500 W(mm) | 500 H(mm) |
| Cabinet resolution | 88Pixels(W) | 88Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1800cd/sqm. |
| Power consumption(one cabinet) | Max:200W/sqm. Average:70W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 7.5Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥1500Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP30 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
