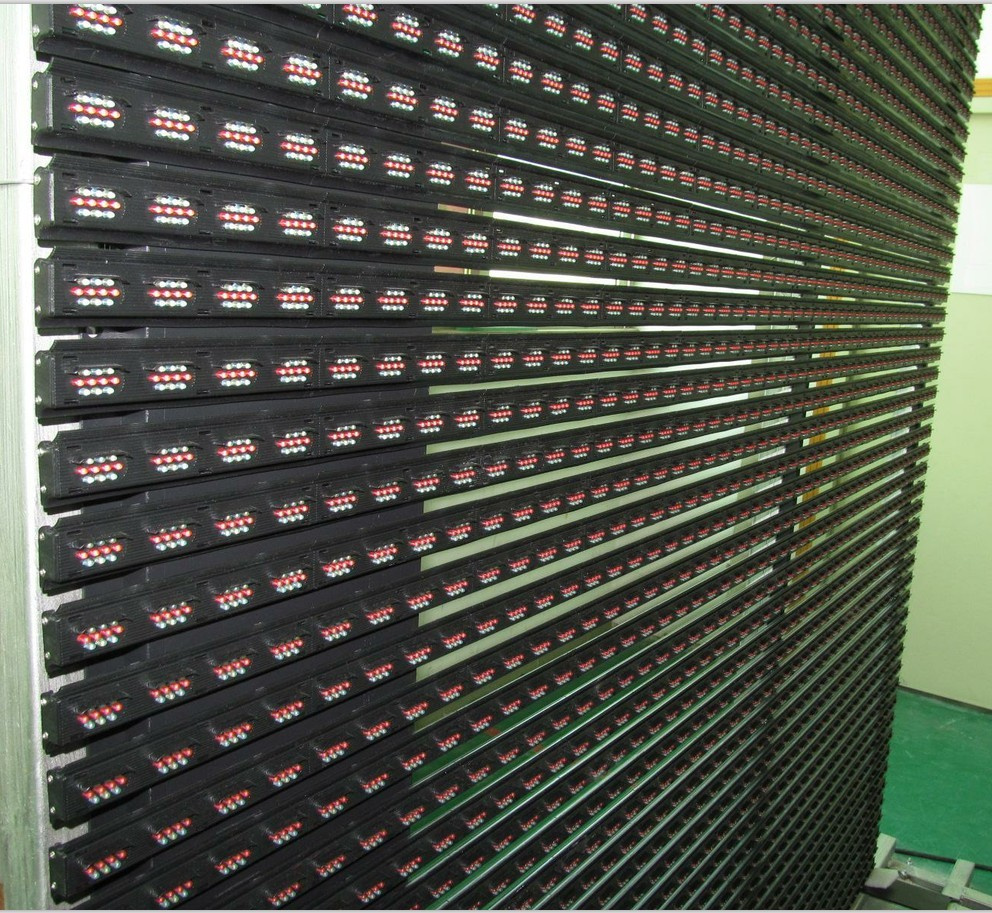

ENBON P40 LED strip curtain display,
60-80% lighter than traditional LED panels; 40-60% light and wind transparency; Front and back maintenance are all available; High brightness, over 6500nits; IP 68(front); IP 55(rear). No problem to be installed close to the sea
1. Very lightweight:
40-60% lighter than traditional panels, which essentially reduced the total weight of the whole screen,
And greatly reduced the complexity of the structure. It is tailored for giant outdoor video wall.
2. Wind-resistant design: 40-60% light and wind transparency.
3. Ultra slim:

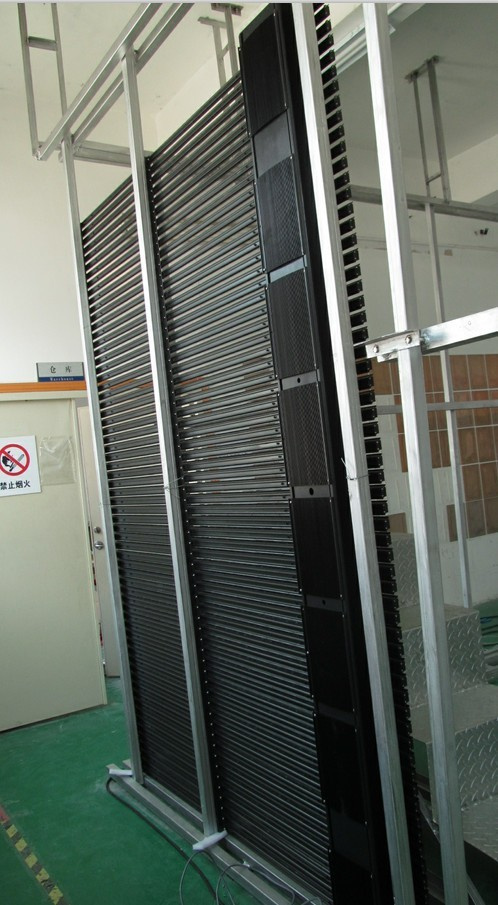

The whole screen can be fixed on the building only by some simple structures, which ensures the
Security of the wall and its foundation.
4. Heat elimination:
All LED bars were made of aluminum and be fixed separately with other accessories. It is good for cooling
Itself and will not affect the temperature of its control system and power supply.
5. Maintenance:
Front and back maintenance are all available. It can be designed according to the customers' request.
6. Ingress protection: IP 68(front); IP 55(rear). No problem to be installed beside the sea.
7. Elegant power and video wiring solutions. All cables were housed inside the frame.
8. Reliability:
The power and signal cable were designed specifically for every tube to ensure the image quality under
Any situation.
|
Technical Prameters |
|
PROJECT |
P40 LED strip curtain display outdoor |
|
Pixel pitch |
40 mm |
|
Pixel density |
625 Pixels/sqm |
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
Static drive |
|
LED lamp type |
Epistar DIP |
|
Cabinet size(W*H*D) |
1500 W(mm)*1000H(mm) |
|
|
Cabinet resolution |
48 Pixels(W)*32pixels(H) |
|
|
Color scale |
65,536 degree |
|
View angle(H/V) |
120/60 degree |
|
Brightness (White balance) |
≥7000cd/sqm. |
|
Power consumption(one cabinet) |
Max:300W/sqm. Average:100W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Net weight |
12Kg / square meter |
|
Operating temperature |
-20°C----+60°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
5,000 hours |
|
Whole Display Flatness |
≤0.5mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥2000Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50--60Hz |
|
LED control system |
Dbstar or Colorlight |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP67 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
