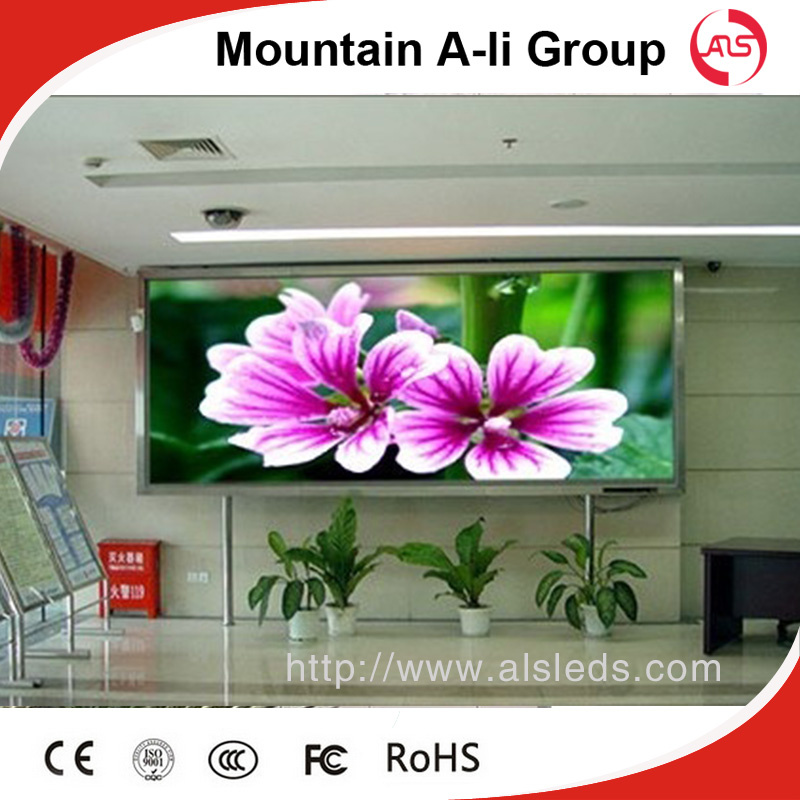

P4 Indoor Full Color SMD LED Display
Unit Module | Item | parameter |
Model | P4 Indoor SMD LED Display |
Module size | 256mm*128mm |
Pixel Pitch | 4mm |
Pixel Density | 62500dots/m2 |
Pixel Configuration | 1R1G1B |
Module Resolution | 64dots(W)*32dots(H) |
Max power | 18w |
Module Thickness | 13.07cm / 26.63cm |
Module Weight | 0.18kg |
Driving Method | Constant Current Driving |
Scan Method | 1/6scan / 1/16scan |
Interface Way | HUB75 |
Brightness | ≥1500cd/m2 |
Unit Module | Cabinet Size | 512mmx512mm |
Cabinet Composing | 16pcs |
Power supply Mode | 5V/40A *2pcs |
Cabinet Resolution | 128*128dots |
Optimal Viewing Distance | 4M-20M |
Optimal Viewing angle | 160°(W)120°(H) |
Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 10%-95% |
Operating Voltage | AC220V±10% |
Average power | 85W/H |
Max power Consumption | ≤160W/m2 |
Current | ≤20mA (Single LED ) |
Control system | Computer | Pentium4 or above P4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥600HZ |
Gray/Color | RGB each 256 grade, can display 16.7M clolor |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768 |
Product Advantages :
1. Price Advantage: Best competitive price of the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle etc .
3.Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability. we have the strictly 72hours old ageing test to ensure the quality of the products. 2 Years warranty . CE,ROHS,CCC, ISO9001 ,EMC ,FCC certificates .
4. Service advantage: With professional service team for 24 hours service! Rich advertising LED display engineering experience both in domestic and oversea market .
Trade terms : | 1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery . |
2. Shipping freight are quoted under your requests . |
3. Shipping port: Shenzhen,mainland China . |
4. MOQ:1SQM . |
5.Package : Wooden packing and flight packing . |
About Technology : | 1. We provide the technology training for free, which contains the operation training and maintenance training at our factory. |
2. We will send our engineers to your country by negotiation. |
3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion. |
4. We will send our engineers to your place if we are expected after our negotiation. |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
