Product Description
Mountain A-Li Group Electronic Company
Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Product features:
1.Energy saving design, good cooling system, high definition,
2.Cost-effective, outstanding reliability, complete function,
3.Are favorite by new and old customers
4.Ultra-high refresh rate, can support video shooting,
5.Clear picture quality assurance
6.Quick and easy assembly, removing System, save loading time
Parameters
| The specifications of modules |
|
|
| Items | Parameter |
|

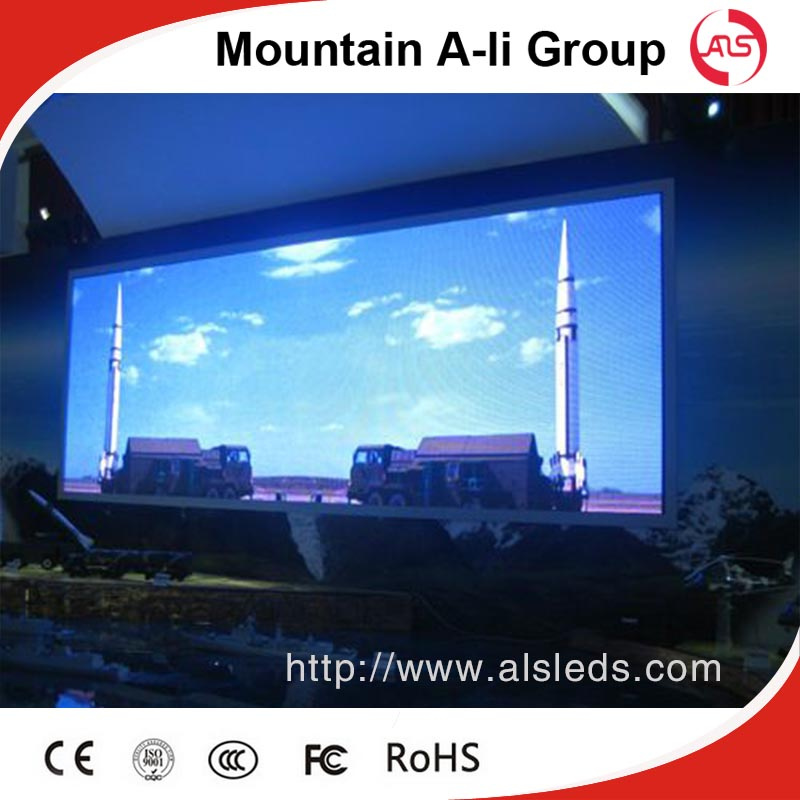

| Product Model | P5 Indoor Full Color LED Module |
|
| Module size | 320mm*160mm |
|
| Pixel pitch | 5mm |
|
| Pixel density | 40000dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 64dots(W)*32dots(H) |
|
| Module maximum power consumption | 25W |
|
| Module Thickness | 14.275mm()26,6() |
|
| Module Weight | 0.21kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/16scan |
|
| Interface | HUB75-A |
|
| Brightness | ≥1600cd/m2 |
|
| The specifications of cabinets |
|
|
| Cabinet size | 640mm*640mm |
|
| Module quantity | 16pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 128*128dots |
|
| Optimal viewing distance | 5M~30M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RH Working temperature | (Work :-20°C~+60°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 270W/H |
|
| Maximum power consumption | ≤500W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥400HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768 |
|
Our services:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Well-trained and experienced staffs to answer all your enquires in fluent english.
Why choose us?
1. Advanced machinery, well trained workers.
2. More than10 years experience in LED lighting industry.
3. Unique designed, good quality, competitive price.
4. Full range of indoor and outdoor LED lighting solution.
5. If you want to know the further details are required. I will attempt to provide 6.product matches with complete details for your reference
Remarks
1.Payment term:
30% T/T in advance and balance before delivery.
2.Delivery time:
Within 15 working days after 30% advance payment.
3.Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
4.Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
