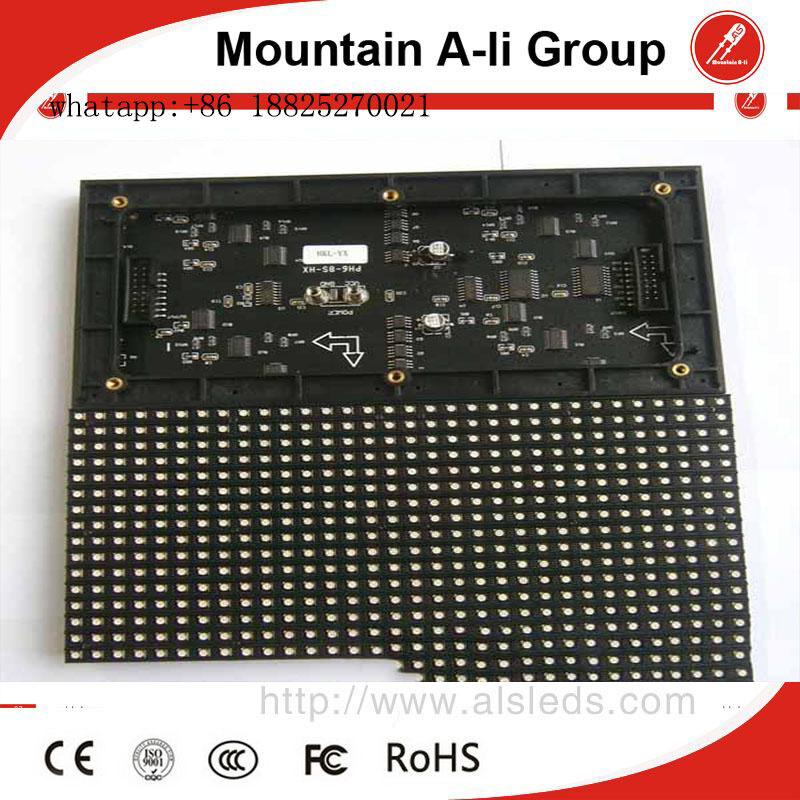

Product description:
The configuration of P6 indoor full color led display is 1R1G1B. Widely used in a variety of needs of large hall,sports arena,banking,telecommunications,govermentagencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage:
1.Energy saving design.
2.High cost, high definition,outstanding reliabillity.
3.Ultra-high refresh rate.
4.Support the camera recorder.
5Quick editing of assembly, disassembly system,saving unloading time.
6.A clear picture quanlity.
Product Parameter
| Item | Parameter |
| Unit Module | Module size | 192mm*96mm |
| Module thickness | 14.85mm(without magnet)
27.15mm(with magnet) |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m² |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3528 |
| Pixel resolution | 32dots(W)*16dots(H) |
| Max power consumption | 15W |
| Weight | 0.154kg |
| Drive type | constant drive |
| Scan mode | 1/4scan 1/8scan |
| Port type | HUB75-A |
| Brightness | ≥3000cd/m² ≥2200cd/m² |
| Dimension | 576mm*576mm |
| Quantity of module | 18 |
| Power supply | 5V/40A*2PCS |
| Thermal discharge | fan 2pcs |
| Pixel per cabinet | 96*96 |
| Best viewing distance | 6m~40m |
| Best viewing angle | 160°(W)120°(H) |
| Temperature | working:-20ºC~+85ºC
storage:-35ºC~+50ºC |
| Relative humidity | 10%~95% |
| Power | Working voltage | AC220V±10% |
| Average power consumption | ≤270W/m² ≤220W/m² |
| Max power consumption | ≤810W/m² ≤3650W/m² |
| Current | ≤20mA(single LED) |
| Control system | CPU | pentium4 or above |
| Operation system | WIN98/2000/NT/XP |
| Control method | synchronization |
| Main technical parameter | Drving device | constant current drive IC |
| Refresh frequency | ≥400HZ |
| Grey scale/color | 256 levels of each color(RGB)/16.7M color |
| MTBF | ≥9000hours |
| Power switch | automatic switch |
| Display mode | 800*600/1024*768 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
