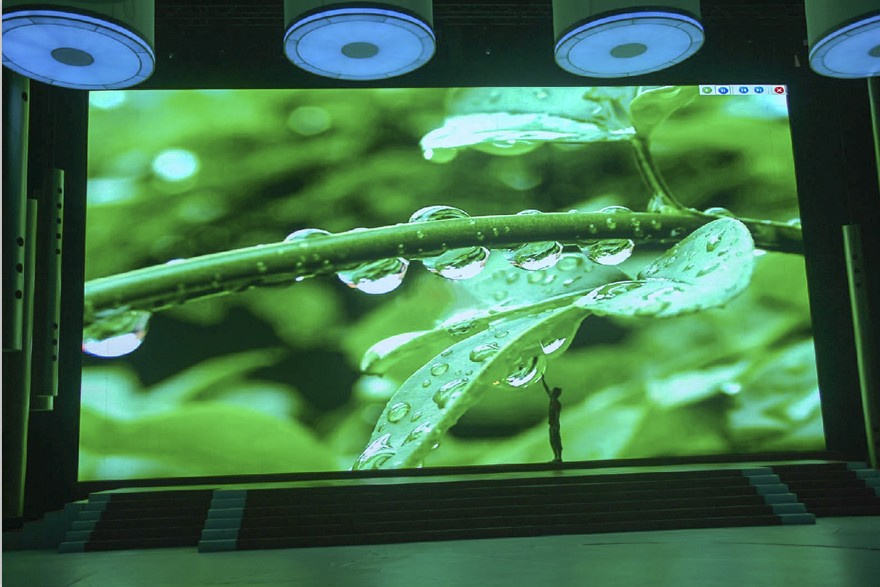

P4 indoor full color LED Digital Display from ENBON LED can show HD video and images.We use die-casting cabinet to guarantee presicion and elegancy.
Features:
1. It is adopted the latest technology of integrated surface mounted devices (SMD 3 in 1).
2. High resolution, Up to Pitch 4mm.62400pixels/sqm. high density enough to show any small texts in small screen and can viewed very well in short distance,say over 3m.
3. Wide viewing angle, Up to 140° (Horizontal & Vertical).can show video or images well even at the side of LED display.
4. P4 indoor LED Video wall with high reliability, fully produced by auto-machine, SMD LED is with high uniformity, stability & reliability, that guarantees the perfect performance of the screen.
5. It is low Power Consumption, can save energy,good for environmnet..
6. ENBON P4 LED screen is designed to be slim body & light weight, Easy maintenance, Long use life.
7. Different signal resources inputs are acceptable, such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.
8. Applications indoor, It can be used in advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
| Technical Prameters of P4 LED digital display |
| PROJECT | P4 indoor LED display for fixed installation or rental |
| Pixel pitch | 4mm |
| Pixel density | 62500 Pixels/sqm |
| Module size(W*H) | 128 (mm)W*128 (mm)H |
|
| Module pixels(W*H) | 32 Pixels(W)*32 Pixels(H) |
|
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/16 scan |
| LED lamp type | SMD3528(Black body) |
| Cabinet size(W*H*D) | 1024 W(mm)*512 H(mm) |
|
| Cabinet resolution | 256 Pixels(W)*128 Pixels(H) |
|
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥1500cd/sqm. |
| Power consumption(one cabinet) | Max:1100W/sqm. Average:400W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 39 Kg/M 2 for Iron cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.3mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥800Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
