Features:
1. Die-casting aluminum housing, rugged, good-looking. To ensure that the display of the seamless installation.
2. Super lightweight and thin, light-weight at 8.6kg/tile. Ultra-slim at 77mm depth.
3. Using E-energy universal voltage power supply, stable performance
4. Receiving card+HUB no flat cable. Stable performance, more reliable connections.
5. No tools to assemble and dismantle, less worker and saves the cost.
6. It suit for hanging-up, each hanging beam can bearing 10-15pcs cabinets.

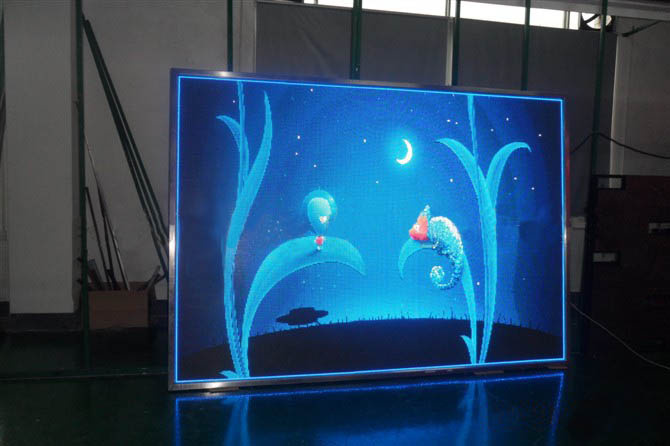

Photos:
Item
Cabinet Specification
Material
Cast aluminum
Color
Silver gray
Size
480*480mm
Resolution rate
120*120
Module quantity
2*2
Density
62500dots/m2
White balance luminance
≥ 1000CD/m2
Color temperature
6500K__8000K
Horizontal view angel
120
Vertical view angel
120
Protection grade
IP43
Non-Flatness
< 1mm
Module interval
< 1mm
Weight
8.5kg/cabinet
Maximal power/m2
600W/m2
Frame frequency
60Hz
Refresh frequency
800-2000Hz
Gray grade
13bit
Luminance adjusted
256 grade by auto-optic/color & 8 grade by hand
Input signal
RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc
Control system
PCTV non-linear editing card + DVI display card + main
controller card + optic fiber transmisson(Optional)
MTBF
> 5000h
Life-span
> 100000h
Speckles rate
< 0.0002
