Description:
P4.81 indoor die-casting advertising LED display is very slim and portable . The panel size is : 500mm long *1000mm high . Panel material is : die-casting aluminum . Tolerance can be controlled within 0.2mm. The price is very competitive. It's even lower than P4 but definition is higher.
Features:
(1) Light weight :The aluminum die-casting technology makes the whole LED screen only 25 KG per square meters. It is only half weight of traditional LED video wall .It saves costs of installation and transportation.
(2) Seamless connection :The aluminum die-casting technology,togrther with the high-precision CNC procession,makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
(3) Low power consumption :Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy over 35%,which in other words is to save money .
(4) Easy to maintain :No need to disassemble the whole screen for maintenance . Each component can be detached individually for that purpose.
(5) Noiseless: no fan is installed in LED panel . It is totally silent.
(6) High refresh rate: Over 1500 Hz/S. It ensures the picture wrinkle-less,line-less and stable.
It is low brightness and Hight gray scale:
Specifications:
Product Name |
Die casting aluminum P4.81 LED video wall |
Pixel pitch |
4.81 mm |
Pixel density |
43264 pixels /sq.m |
Module size(W*H) |
250 mm(width)*250 mm(height) |
Module pixels(W*H) |
52 dots *52 dots |
Pixel configuration |
1Red 1Green 1Blue |
Drive mode |
constant current driving 1/13 scan |
LED lamp type |
SMD2121 |
Cabinet size(W*H*D) |
500mm*1000mm |
Color scale |
65,536 degree |
Best Viewing angle(H/V) |
140/120 degree |
Brightness (White balance) |
> 1200cd/sq.m |
Power consumption(one cabinet) |
Max:400W / cabinet , Average: 200W / cabinet |
Inputting Voltage |
90-264 VAC; 47---63HZ |
Net weight |
12.6 Kg / cabinet |
Operating temperature |
-30°C----+60°C |
Operating humidity |
10%-95%RH |
Life time |
≥100,000hours |
MTBF |
5,000 hours |
Whole Display Flatness |
≤0.5mm Juncture |
Frame frequency |
25-60 Hz/s |
Refresh rate |
≥1500Hz /s (no scanning lines when photographed) |
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
LED control system |
LINSN,Dbstar,Nova-star (optional) |
Operating system |
Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
Protection grade |
IP30 |
Maintenance way |
Rear access |
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Applications:

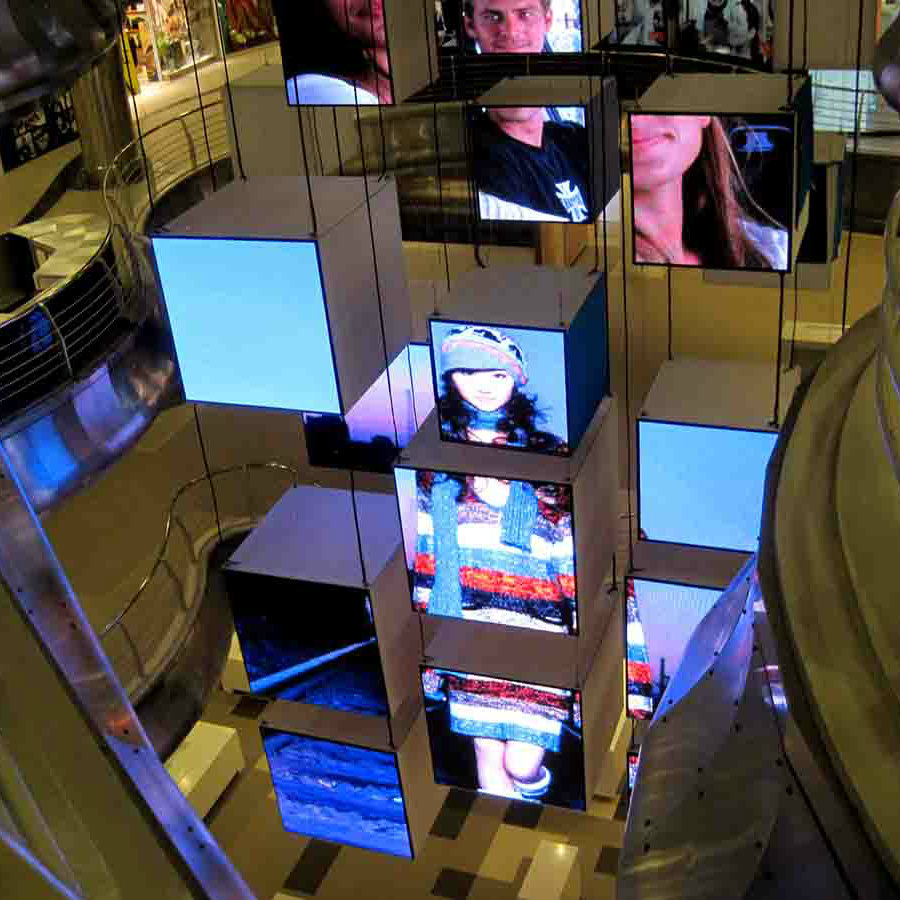

Conference, Concerts, Stage, Mall ,retail etc.
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
