Indoor features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos

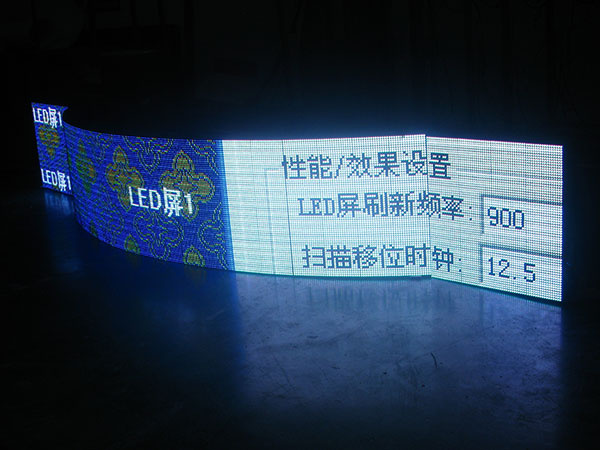

5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
8. both front access and rear access areavailable
Feactures Introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
led display projects
Indoor P2.5 full color smd LED Display Module Parameters:
Detailed Specifications of Indoor Full Color LED Display |
Model No. | P2.5 |
Pixel Pitch | 2.5mm |
Module Size | 160*80mm |
Pixel Density | 160000 |
Pixel composition | 1R1G1B |
Module Resolution | 64*32 |
The Optimum Viewing Distance | 2~12m |
The Optimum Viewing Angle | H:120° V:120° |
Maximum PowerConsumption | 600W/m2 |
Standard Cabinet Size | 640mm*640mm |
Cabinet Weight | 30Kg |
Driving Method | 1/16 Scan |
Frame Frequency | ≥60Hz |
Refresh Rate | ≥180Hz |
White Balance Luminance(CDm2) | ≥1000CD/m2 |
Operating Environment Temperature | between -20°C and 60°C |
Operating Voltage | 220V±10% |
Grey Scale | Display Colors≥65.7trillion color(Synchronized) |
Brightness Adjustment | 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically |
Input Signal | RF,S-Video,RSBHV,YUV,YC,COMPOSITION |
Control System | PC+DVI display card+master card + optical fiber transmission |
Average No Failure | ≥1000 hours |
Time Life-span | >100000 hours |
Out-of Control rate | <0.0002 |
Transmitting Distance | Internet cable:<100m |
P2.5 smd rgb indoor full color Led display module features:
1.Fast assembly: It could be installed without complicated tools in hanging and fixed installation.
2. Chip and wire: Taiwan Epistar chip, pure gold wire. Mask and frame material: First class original
3.Energy saving: The power consumption for each cabinet is only 80W.
4. Screw: Stainless steel.
5.Colorful performances:
The high-density, vivid color processing guarantees you high-end broadcasting show, Image quality: Clear vivid image quality even in direct full-on sunlight.
Applications: Shops, Office, Highway, Advertisement, information for railway, bus station and etc. Our Services
(1). Product Quality:
For LED Modules , 24 hours Aging test before shippment;
For LED Display, 72 hours Aging test before shippment, which will avoid some problems and make customers satisfied with the quality of our led products.
(2) After Sale Service: 1 year warranty;Complete instruction for led screen installation, Professional technical team for remote control maintenance.
Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) Performance Advantage: Best quality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability
Company Information
Shenzhen Chuangxinhui Photoelectric Co., Ltd. is a professional manufacturer in LED display screen, LED module and display project application, including R & D, production, sales and engineering design.
We are the professional supplier of LED display module, led display, led video wall , LED video dance floor and LED rolling curtain on rental and LED indoor outdoor screen, We provide LED screen on rental/hire/lease for events, (p3, P4, P5mm, P6mm , 7.62 mm, 8mm,10mm outdoor 12 mm, 16mm and 20 mm picture pixle led screen for fixed and mobile indoor/outdoor applications.
FAQ
What is the life time for a LED screen?
The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen and how it is used. When a LED Screens´ life time gets to 100,000 hours, it means that the brightness of the LED lamps of the LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED screen´s life time or reach 100,000 hours.
What is the led chip packing?
546 oval lamp/346 oval lamp/SMD 3528/8X8 Array module
How to protect power supply?
Electrical peaks can put more force on the electrical components which will decrease life time .
it is wise to install a protection (voltage stabilizer) that can control the peaks.
How to main the led screen?
The soldering of the LED chips can dry out and break which require changing often components such as LED modules and receiving card .
What is the return policy?
If the module died exceed 1%,we can resend you the new one.
Shenzhen Huaxia L&C Display Technology Co., Ltd(CLC display company), a LED display company located in Baoan district, Shenzhen. Based on our 3 factories(total 15200 square meters), we designs and develops visualization solutions for a variety of products selected from professional markets: Advertisement, Media, Sports, Entertainment, digital cinema, CCTV security, simulation & virtual reality. In these markets, Huaxia offers user-friendly imaging products that optimize productivity and business efficiency.
Integrating visualization technology requires specialist know-how and expertise and that's exactly what we can offer you - before, during and after the sale. We offers a complete range of high-impact video display systems, image processing and content management technology for permanent installations, rental and staging markets. Based on our staff with a couples of experience, We provide the right visualization technology to match your needs.
As a OEM/ODM factory, we are supplying both LED display and LED module to the overseas and domestic buyers. We supports our customers to finish more than 1, 500 events every year, which are from more than 60 countries and regions.
Main product list:
Indoor display, outdoor display, outdoor/indoor display mesh
Pixel pitch:
From P1.5, P1.875, P3.0, ...P31.25
Application locations:
Outdoor, Indoor and semi-outdoor
Application markets:
Advertisement, Media, Sports, Entertainment, Digital cinema, CCTV security, Simulation & virtual reality
