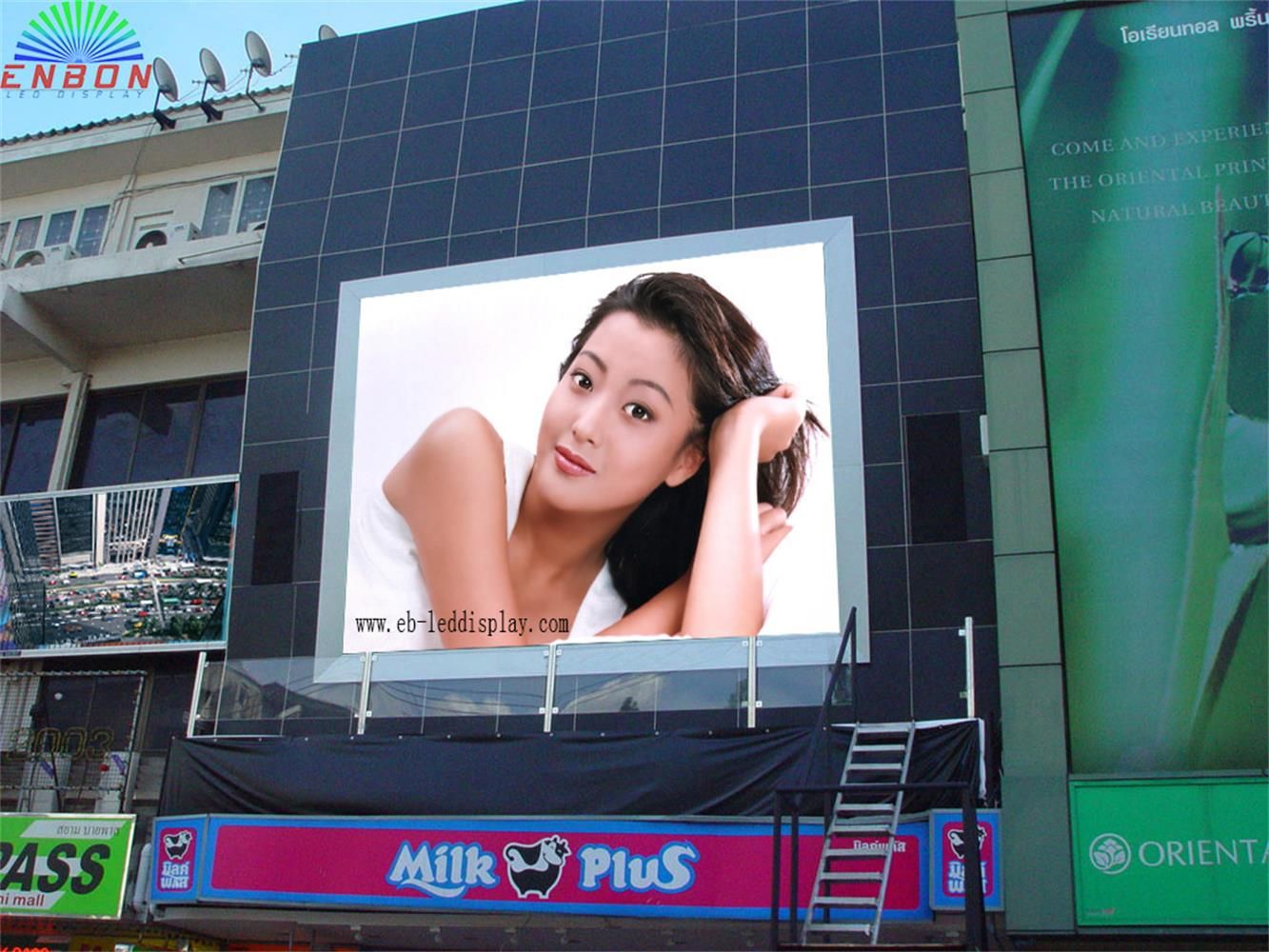

P16 Full Color Outdoor on Wall LED Sign Display
Enbon LED sign display is high brightness, show dynamic information, perfect for Outdoor advertising (energy saving series). It's 16 bits full color, can show clear, vivid video. Can be curved or flat shape. Cheap cost, high return!
WE ARE PUSHING THE SALES OF P10 and P16, welcome to send inquiry! !
It has the following features:
1. Our special PCB design can save 30% power consumption compared with common product
2. High brightness(over 7500nits) and can be adjusted automatically accordingly to the environment;
3. IP65 waterproof front. With a special cover on the rear side of cabinet, it can avoid water very well
4. No gap between adjacent cabinets so surface is smooth. It has vivid color reproduction, no mosaic;
5. Aluminum cabinet, lighter and not easy to go rusted.
6. Any single dead lamp can be reaired respectively, which reduce the cost of maintenance.
7. Can reach wide viewing angle. You can get vivid effect within any position of the viewing range;
It can be FLAT or Curved as per your requirements.
The basic protection of video screen guarantees a better display efect and longer lifetime. ENBON LED has focused on developing this feature and can manufacture all the screens to a protection level of IP65 on the front side, and IP54 on the rear side.
| Technical Prameters |
| PROJECT | P16 outdoor LED sign display |
| Pixel pitch | 16mm |
| Pixel density | 3906 Pixels/sqm |
| Module size(W*H) | 256 W(mm)*256 H(mm) |
|
| Module pixels(W*H) | 16 Pixels(W)*16 Pixels(H) |
|
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving, static scan |
| LED lamp type | Epistar DIP346 |
| Cabinet size(W*H*D) | 1024 W(mm)*768 H(mm)( Optional ) |
|
|
| Cabinet resolution | 64 Pixels(W)* 48 Pixels(H) |
|
| Color scale | 65,536 degree |
| View angle(H/V) | 110/70 degree |
| Brightness (White balance) | ≥7500cd/sqm. |
| Power consumption(one cabinet) | Max:900W/sqm. Average:300W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 55 Kg/sqm |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.3mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
