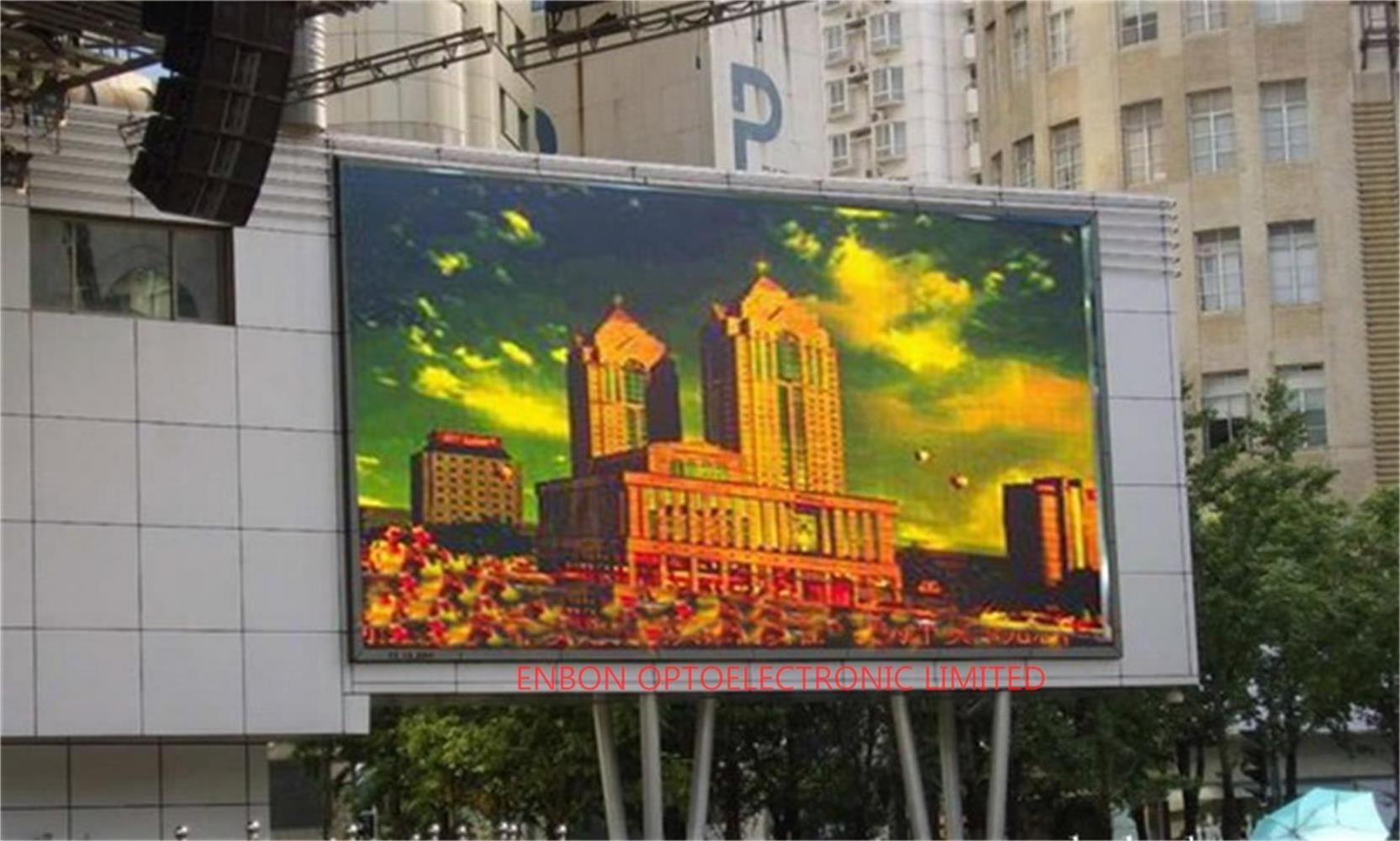

P16 Full Color Outdoor LED Sign Board/LED display
It can be used in shopping wall,Widely used in large venue, stadiums, bank, government,Terminal, dock, station, stock market, medical systems,Electricity, exhibition etc.
Unique isolation design of the side lock, can withstand the storm
Specially for AV rental companies, great choice for concert tours, product launch events, cooperation events etc.
Specifications as below:
1. Outdoor LED Display
2. Higher refresh rate: Over 2000Hz/s, no scan line
3. High color quality
4. Excellent waterproof
5. Outdoor Cast aluminium cabinet
6. Durable & stable LED display.
7. MBI5020, MBI5024, MBI5041, MBI5050 are optional
8. Waterproof Neutrik connectors are optional, better connectivity performance.
9.2 Years warranty.
| Technical Parameters |
| PROJECT | P16 outdoor LED screen display for fixed installation |
| Pixel pitch | 16mm |
| Pixel density | 3096 Pixels/sqm |
| Module size(W*H) | 256 W(mm) | 256 H(mm) |
| Module pixels(W*H) | 16 Pixels(W) | 16 Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving Static scan |
| LED lamp type | Epistar DIP346 |
| Cabinet size(W*H*D) | 1024 W(mm) | 1024 H(mm) |
| Cabinet resolution | 64 Pixels(W) | 64 Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 110 / 70 degree |
| Brightness (White balance) | ≥7500cd/sqm. |
| Power consumption(one cabinet) | Max:1100W/sqm. Average:350W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | about 60Kg/sqm |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥1500Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
