P16 LED perimeter display for football stadium, outdoor full color, perimeter design, mainly to show logos of the sponsors., LED perimeter banner is necessary for each. Important football match.
Our LD perimeter display has the following features:1,
Silicon rubber is chosen for waterproof protector. This material has high thermostability. We design three-protectors structure for waterproof.
2, The
soft mask is designed with high capacity of impact resistence. Buffering arc-surface`structure is appled for the mask shelter It can defuse the impact of football, tennis ball and players.
3, New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the new items easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During hanging.
3, New colour collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screen much more elegant
4,

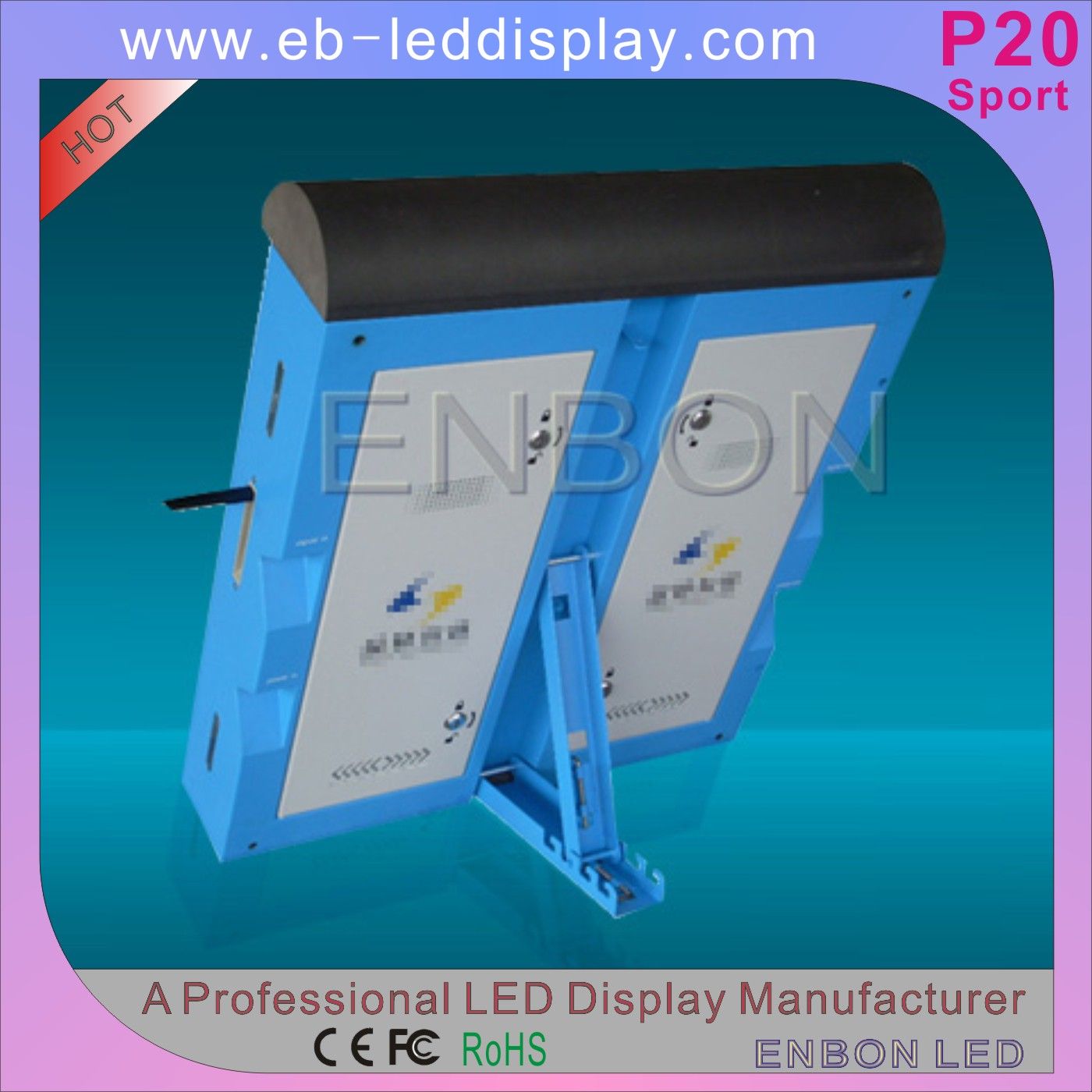

Angle adjustable back bracket. User can adjust the best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.
5, Rubber protector on top of cabinet to protect the player from injury.6, Aluminum alloy is used for the cabinet to reduce weight, easy to move from this stadium to that stadium.
.
7. It can be P8, P10, P16, P20 and P25

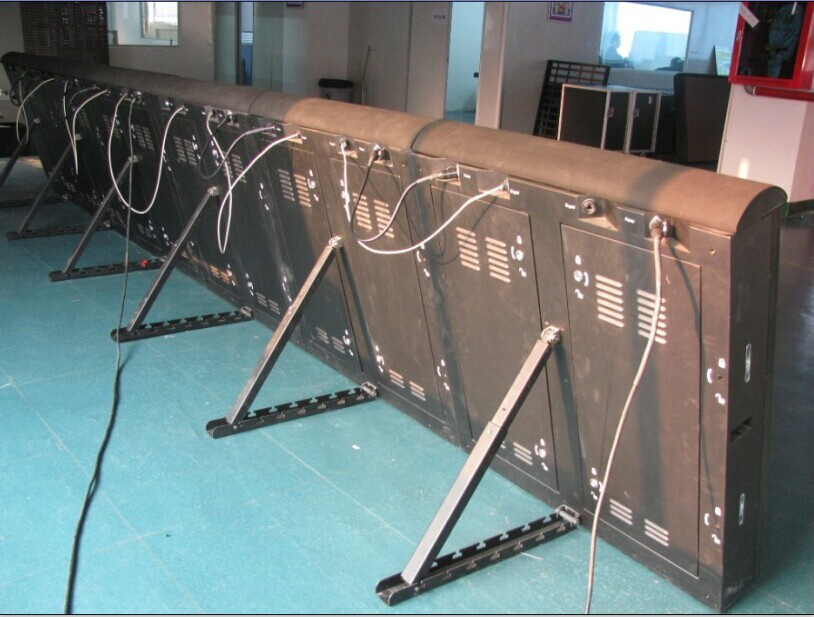

Some pictures of our football stadium led display showing below for your reference:LED perimeter display in our factory

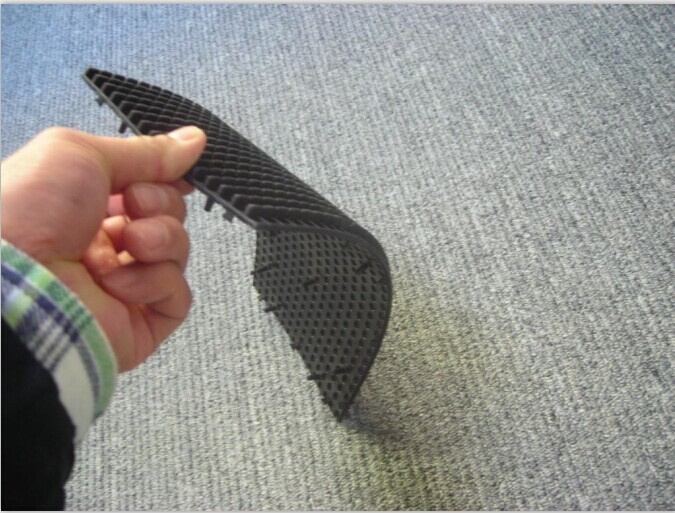

Soft maske to protect the player as well as LED screen
|
Technical Prameters |
|
PROJECT |
P16 LED perimeter LED display for stadium |
|
Pixel pitch |
16 mm |
|
Pixel density |
3906 Pixels/sqm |
|
Module size(W*H) |
256 (mm)W*256 (mm)H |
|
|
Module pixels(W*H) |
16 Pixels(W)*16 Pixels(H) |
|
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
constant current driving static scan |
|
LED lamp type |
DIP346 |
|
Cabinet size(W*H*D) |
1280 (mm)W*1024 (mm)H (can be customized) |
|
|
Cabinet resolution |
80 Pixels(W)*64 Pixels(H) |
|
|
Color scale |
65,536 degree |
|
View angle(H/V) |
110/70 degree |
|
Brightness (White balance) |
≥7500cd/sqm. |
|
Power consumption(one cabinet) |
Max:700W/sqm. Average:250W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Net weight |
60Kg/sqm |
|
Operating temperature |
-20°C----+50°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
5,000 hours |
|
Whole Display Flatness |
≤0.3mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥2000Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50--60Hz |
|
LED control system |
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP65 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
