Home LED Light Products P12 Advertising LED Outdoor Display (1R1G1B, FULL COLOR)

P12 Advertising LED Outdoor Display (1R1G1B, FULL COLOR)

P12 Advertising LED Outdoor Display (1R1G1B, FULL COLOR)
Price: US $ 700-750/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T

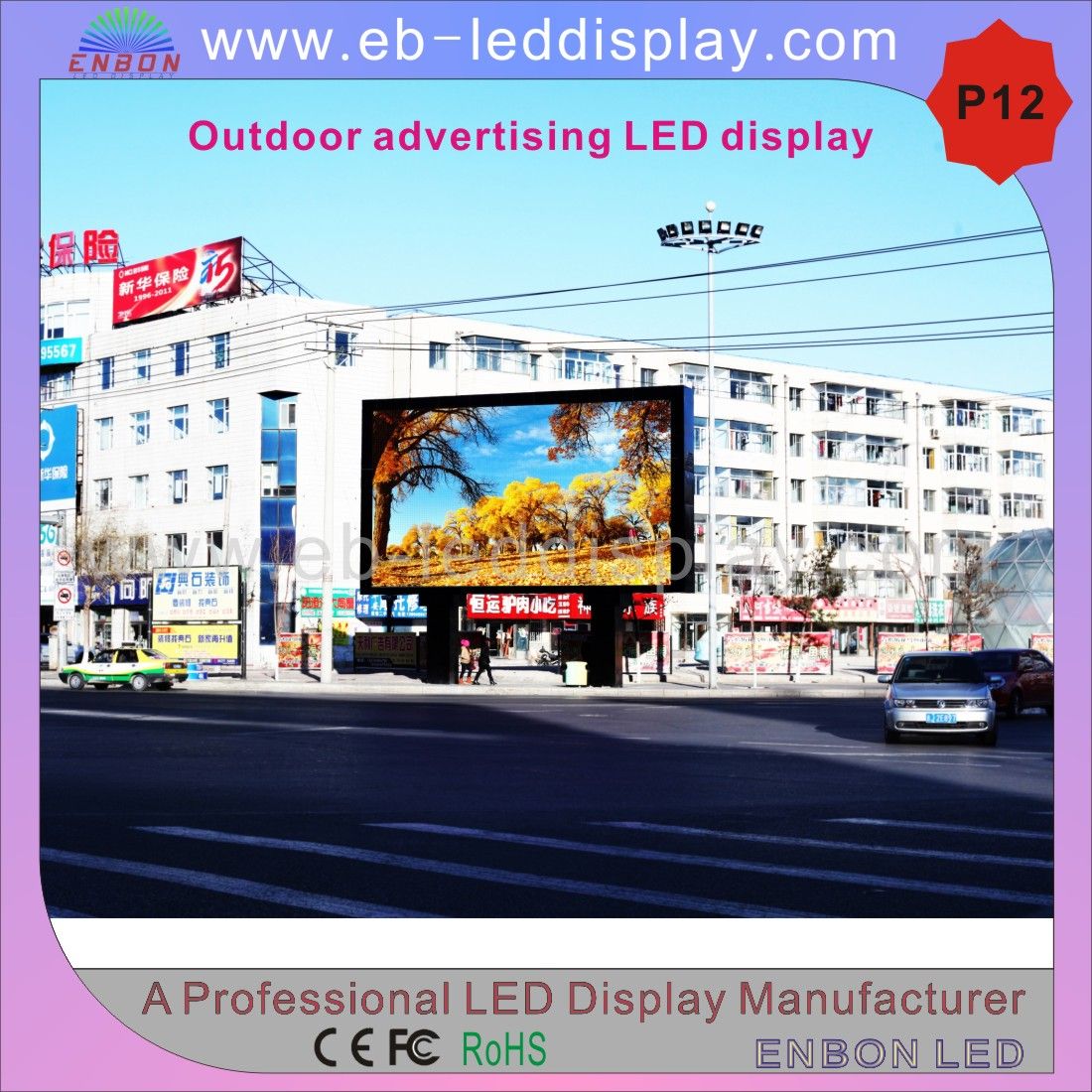

P12 LED Sign/Outdoor LED Billboard for advertisment on pole. The control system is Novastar, high color and refresh rate.

Application:

1. Outdoor full color LED display screen could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown

Features:

1) Waterproof, IP65 front and IP43 back. Our cabinet backdoor has special cover, better waterproof than others. Coated iron cabinet, won't go rusted...

2) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.

3) No mosaic due to excellent flatness and nice uniformity of light-emitting

4) Wide viewing angles and the horizontal angle can reach 120° The images effect will not Change largely in the range.

5) Virtual pixel can be adopted for outdoor displays to increase the resolution up to four Times of real pixel, making the images softer and vivider

6) Single-lamp maintenance, low cost.

7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).

8) Environmental-friendly and energy-saving.

We can offer 2-5 years warranty by using different brands of LED

Cabinet design can be customized!
 Technical Prameters
PROJECTP12 outdoor LED display
Pixel pitch12mm
Pixel density6944 Pixels/sqm
Module size(W*H)192 W(mm)192 H(mm)
Module pixels(W*H)16 Pixels(W)16 Pixels(H)
Pixel configuration1Red 1Green 1Blue
Drive modeconstant current driving  1/2 scan
LED lamp typeEpistar DIP346
Cabinet size(W*H*D)960 W(mm)960 H(mm)
Cabinet resolution80 Pixels(W)80 Pixels(H)
Color scale65,536 degree
View angle(H/V)120/70 degree
Brightness (White balance)≥7500cd/sqm.
Power consumption(one cabinet)Max:1000W/sqm.     Average:350W/sqm.
Operating VoltageAC100V±10% or 220V ±10%;   50---60HZ
Net weight60 Kg / M 2 for Iron cabinet
Operating temperature-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity10%_95%RH
Life time≥100,000hours
MTBF5,000 hours
Whole Display Flatness≤0.3mm Juncture
Frame frequency>60 Hz/s
Refresh rate≥3000Hz /s
Control distance100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power 110V/220V±15% 50--60Hz
LED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating systemWindows 2000 / Windows Xp / Windows 7
Protections for outdoor display  IP65
Maintenance wayRear  Access
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Prod Model: P12 advertising LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: P12 Advertising LED Outdoor Display
Brightness (White Balance): 7500CD/Sqm
Cabinet Size(W*H*D): 960 W(mm)*960 H(mm)
Net Weight: 60 Kg / Sqm for Iron Cabinet
Refresh Rate: ≥3000Hz /S
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 12mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Pixel Density: 6944 dot / m²
Scanning Mode: 1/2 Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.

Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.

Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
