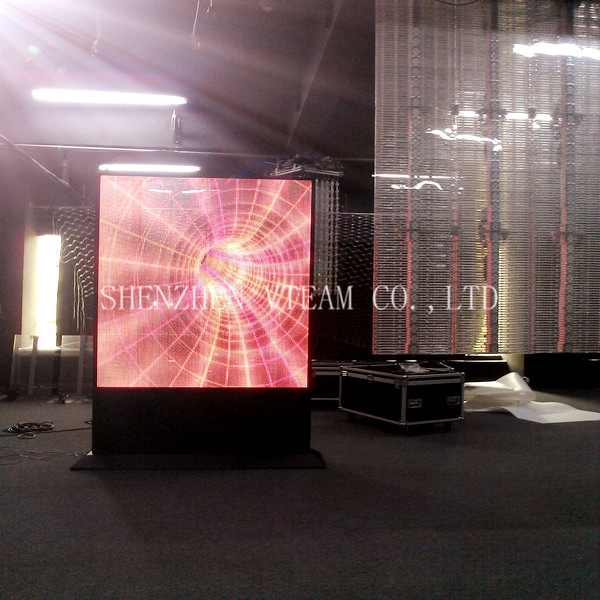

GL12 is a kind of creative led screen with extremely high transparency, achieving a brilliant visual effect. GL12 screen can be directly pasted on glass walls against the building for advertising and decoration, as well as been hung up for rental application as display screen. 300*600mm for each panel size, only 5 kg on weight for single panel, max thickness is limited in 49 mm, all those unique advantages make GL12 a perfect choice for creative designing company to use on large-scale applications.
Advantages:
High transparency rate: It is as high as 70%. Led lights are almost invisible from a specific distance.
Max thickness is limited in 49 mm
Simple installation: Can be directly installed behind the glass.
The protection rating can be IP65, so it is total waterproof.
Applications:
TV shows, live shows, events background display
Party, stage billboard
Hotel, disco, bars, night club wall decoration
Architectures exterior lighting decoration
High transparent
|
Item |
|
G12 |
|
G20 |
|
Pixel Pitch |
|
12.5mm |
|
20mm |
|
Pixel Configuration |
|
RGB 3in1 SMD3535 |
|
RGB 3in1 SMD3535 |
|
Pixel Density/sqm |
|
6400 |
|
2500 |
|
Resolution |
|
48*24 |
|
32*16 |
|
Panel Size |
|
300mm×600mm×49mm |
|
320mm×640mm×49mm |
|
Viewing Distance |
|
≥12m |
|
≥20m |
|
Weight |
|
5KG |
|
Transpantency Rate |
|
≥70% |
|
Brightess |
|
4500nit |
|
Viewing Angle(H/V) |
|
140°/140° |
|
Gray Scale |
|
14bit |
|
Refesh Rate |
|
≥1200Hz |
|
Color Type |
|
68 Billion |
|
Gamma |
|
–5.0~5.0 |
|
Protection Level |
|
IP65 |
|
Application |
|
Outdoor |
|
Control System |
|
Synchronous display with control PC by DVI |
|
Signal Input |
|
Composite,S-vide, Component,VGA,DVI,HDMI,HD-SDI |
|
Power Supply |
|
DC36~75V ,FSP.Technology |
|
Working Environment |
|
Temperature-10°C~50°C,Humidity 10~90%RH |
|
Lifetime |
|
>50000hours |
|
Certififate |
|
CE |
