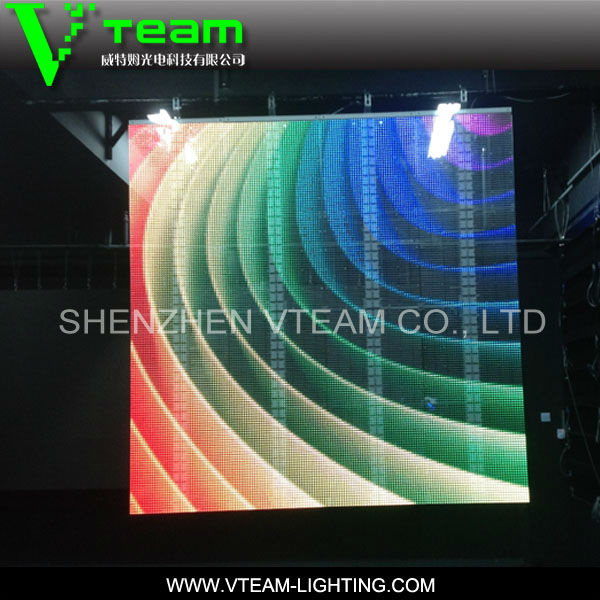

Gl12/20 Overview
GL is a creative led screen with extremely high transparency, achieving a brilliant visual effect. GL screen can be applied on the building for advertising and decoration,
As well as been hung up for rental application as display screen. 320x640mm for each panel size, only 5kg on weight for single panel, max thickness is limited in 49 mm,
All those unique advantages make GL a perfect choice for creative designing company to use on largescale applications.
Product Features
1. High transparency: 70% on transparency makes the led bulbs almost invisible above a specific distance on screen.
2. Flexible installation methods for various projects.
3Light weight and fastlock design advantages can make single person finish installation without any tools, perfectly applied for mobile shows and rental applications.
4. Simple installation: GL are directly installed behind the glass. So there is no need for any changing on building structure, very suitable for glass building advertising and decorations.
5. High light transmittance: Light can get through screens easily.
6. Could achieve any arc-shaped within +/-10.
|
Item Name |
|
GL12 |
|
GL20 |
|
Pixel Pitch |
|
12.5mm |
|
20mm |
|
LED Type |
|
RGB 3in1 SMD3535 |
|
RGB 3in1 SMD3535 |
|
Pixel Density/sqm |
|
6400 |
|
2500 |
|
Pixel Matrix |
|
48x24dot |
|
32x16dot |
|
Panel Size |
|
300x600x49mm |
|
320x640x49mm |
|
Weight |
|
5kg |
|
5kg |
|
Protection Level |
|
IP20 or IP54 |
|
IP20 or IP54 |
|
Brightness |
|
4500 nit |
|
4500 nit |
|
Best Viewing Distance |
|
12m |
|
20m |
|
Transparency |
|
≥70% |
|
≥70% |
|
Viewing Angle |
|
H140° V140° |
|
Gray Rate |
|
14bit |
|
Colors |
|
68 Billion |
|
Max Power Consumption |
|
125 W/panel |
|
125 W/panel |
|
Refresh Rate |
|
≥1200Hz |
|
Gamma |
|
-5.0~+5.0 |
|
Application |
|
Indoor |
|
Both for indoor and outdoor |
|
Controlling System |
|
Synchronous display with control PC by DVI |
|
Signal Input |
|
Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
|
Input voltage |
|
DC 36~75V,FSP.Technology Inc. |
|
Working Environment |
|
Temperature-10~+50degree,humidity 10~90% RH |
