Application: Public signal publishing platform, Traffic monitor scheduling, military commanding agency, Video meeting system, television studio, senior market and so on.
R&D background: With the development of the ultra high light LED display may use in the outdoor environment and extensive area no gap connection technology improve. The LED display will be applied more extensive in the major fairs just like the Beijing Olympic Games, Shanghai World Expo, Guangzhou Asian Games and so on.

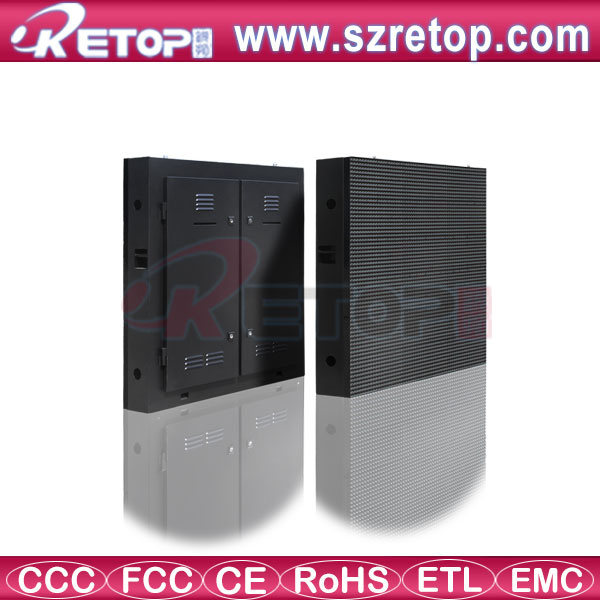

| P10mm outdoor full color LED display |
| LAMP | LED Type | DIP Lamps |
| Wave length | R: 620 nm |
| G: 526 nm |
| B: 464 nm |
| Brightness | R | R: 1095-1204 mcd |
|
|
|
|
| G: 2347-2582 mcd |
|
|
| B: 422-464 mcd |
|
|
| BOARD | Pixel configuration | 1R1G1B |
| LED driving method | 1/4 dynamic scan |
| Pixels | 32 | * | 32 | (W*H) |
| Pixel pitch | 10 | mm |
| Led board size | 320 | mm | * | 320 | mm | (W*H) |
| MODULE | Led boards | 3 | * | 3 | (W*H) |
| Pixels | 96 | * | 96 | (W*H) |
| Module area | 0.92 | m2 |
| Module size | 960 | mm |
| * | 960 | mm | (W*H) |
|
|
| Net weight |
| kg | (Fe) |
|
|
|
|
| Power | AC220/110 ± 10%, 47~63Hz |
| Water proof | N/A |
| Serviceability | Rear service |
| DISPLAY | Max. power consumption | R | ≤ | 810 | W/m2 | N | ≤ | 1010 | W/m2 | C | ≤ | 850 | W/m2 |
| Avg. power consumption | ≤ | 284 | W/m2 | ≤ | 354 | W/m2 | ≤ | 298 | W/m2 |
| Max. current (208V 60Hz) | ≤ | 4.33 | A/m2 | ≤ | 5.40 | A/m2 | ≤ | 4.54 | A/m2 |
| Hor. viewing angle(min 50% brightness) | 140° |
| Vert. viewing angle(min 50% brightness) | 140° |
| Brightness | ≥ 1000 cd/m2 |
| Pixel density | 444,444 | /m2 |
| Power factor | > 0.9 |
| Certifications | UL, CE, ETL, ROSH, CCC |
| Contrast ratio | 3000: 1 |
| Operating temperature | -20º C to +60º C |
| Operating humidity | 20% to 90% |
| Lifetime (50% brightness) | 100, 000 hours |
| Processing | 164 bit |
| Colors | 281 trillion |
| Refresh rate | ≥ 2400 Hz |
| Frame rate | 60 fps |
| Brightness level | Manual 100 levels, automatically 16 levels.
|
