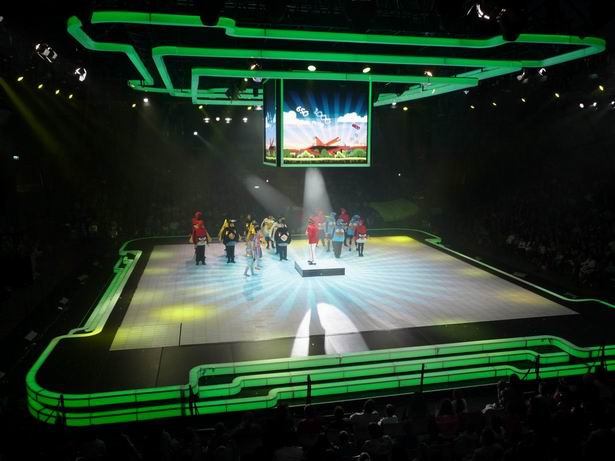

Floor tile screen features:
1,High wear resistance of resin mask, easy to step on the ground directly
2,Quick disassembling, modular design.Make installation to maintenance easier
3,Color reduction effect is remarkable, instant under the condition of surrounded by strong light, colour effect is obvious
|
Product type |
LD-10 |
|
Pixel pitch(mm) |
10 |
|
Pixel configuration |
SMD 3528 3-in-1 |
|
Pixel Per Module(dot/ sq . m . ) |
32 x 16 |
|
Module resolution(pixels/ sq . m . ) |
512 |
|
Module size(mm) |
320x 160mm |
|
Pixel density(dot/ sq . m . ) |
10000 |
|
Recommended mininum viewing distance(m) |
10 |
|
Brightness(cd/ sq . m . ) |
1600cd/ sq . m . ≥&≥1000cd/ sq . m . |
|
Color Temperature(K)(Customers can specify the) |
10000k--12000k |
|
Viewing angle(H/V) |
H:110 V:100 |
|
Cabinet Pixel Matrix(pixels) |
|
|
Cabinet size(mm*mm) |
|
|
Cabinet Material |
Basic PC |
|
Cabinet weight(Kg) |
280 |
|
Colour(KG) |
1 |
|
Grayscale (linear) |
16bits x RGB |
|
Brightness control |
100 adjusted automatically |
|
Video Frame Rate(Hz/s) |
≥60 |
|
Display Refresh rate(Hz) |
≥1000 |
|
Driving method(Scan Constant Current) |
1/4 |
|
Input voltage(Nominal)(V) |
AC 110\220\110-220 |
|
Input Power Frequency(Hz) |
50/60 |
|
Input Power (Max) (W/ sq . m . ) |
490 |
|
Input Power (Average)(W/ sq . m . ) |
245 |
|
Working temperature |
-20C_41C |
|
Storage temperature |
-35C_85C |
|
Working humidity |
10%_96% |
|
Lifespan(H) |
≥50000 |
|
Application |
indoor/outdoor |
|
Maintenance mode |
After the maintenance |
