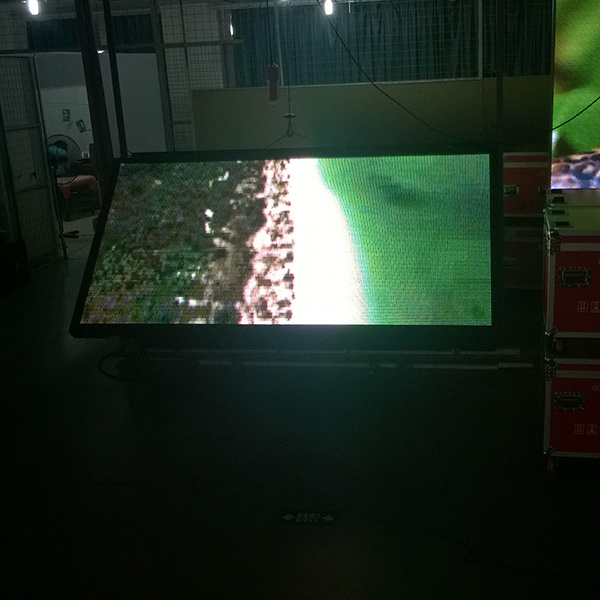

OUTDOOR DISPLAY
Product Description
1. Outdoor full color LED display could be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, staticproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Features of the product:
1) Super-thin and light cabinet can save room and time of installation.
2) High and adjustable brightness can meet the demands of the changing requirement of
Customer in different environments.
3) No mosaic due to excellent flatness and nice uniformity of light-emitting
4) Wide viewing angles and the horizontal angle can reach 120° The images effect will not
Change largely in the range.
5) Virtual pixel can be adopted for outdoor displays to increase the resolution up to four
Times of real pixel, making the images softer and vivider
6) Single-lamp maintenance with low cost.
7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
8) Environmental-friendly and energy-saving.
|
Product type |
A-10 |
|
Pixel pitch(mm) |
20 |
|
Pixel configuration |
1G1B1R DIP346 |
|
Pixel Per Module(dot/m²) |
32 x 32 |
|
Module resolution(pixels/m² ) |
1024 |
|
Module size(mm) |
320 x 320 |
|
Pixel density(dot/m² ) |
1000 |
|
Recommended mininum viewing distance(m) |
10 |
|
Brightness(cd/m² ) |
&≥6500cd/m² |
|
Color Temperature(K)(Customers can specify the) |
6000k--12000k |
|
Viewing angle(H/V) |
H:120 V:120 |
|
Cabinet Pixel Matrix(pixels) |
96x 96 |
|
Cabinet size(mm*mm) |
1280 x 960 x 150 |
|
Cabinet Material |
iron material |
|
Cabinet weight(Kg) |
≈65 |
|
Colour (trillion) |
281 |
|
Grayscale (linear) |
12bit x RGB |
|
Brightness control |
Automatic 100 Levels |
|
Video Frame Rate(Hz/s) |
≥60 |
|
Display Refresh rate(Hz) |
≥480 |
|
Driving method(Scan Constant Current) |
static |
|
Input voltage(Nominal)(V) |
AC 110\220\110-220 |
|
Input Power Frequency(Hz) |
50/60 |
|
Input Power (Max) (W/m² ) |
630 |
|
Input Power (Average)(W/m² ) |
320 |
|
Working temperature |
-20ºC_40ºC |
|
Storage temperature |
-35ºC_85ºC |
|
Working humidity |
10%_95% |
|
Lifespan(H) |
≥100000 |
|
Application |
Outdoor |
|
Dot Defective rate |
≤0.002 |
|
Maintenance mode |
After the maintenance |
