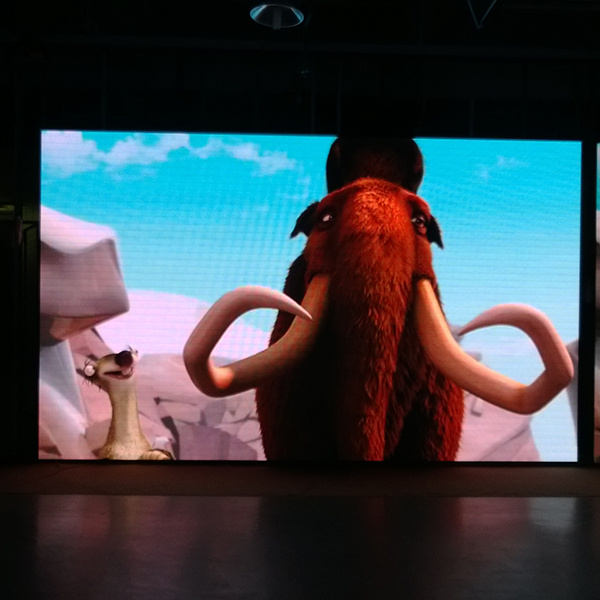

P4.8 Fortune Generation II Indoor Full Color LED Display:
Streamlined appearance design
Easy to install, no need use tools
Seamless splicing technology
Diversified installation structure design
Point by point correction high-end display technology
Patent technology to screen more stable
Automatic timer function
No fans, no noise
？
|
Product type |
LR-3.91 |
LR-4.8 |
LR-5.2 |
|
Pixel pitch(mm) |
3.91 |
4.8 |
5.2 |
|
Pixel configuration |
SMD 2724 Black Light trinity |
SMD 3528 |
SMD 3528 |
|
Pixel Per Module(pixels) |
128 x 32 |
104 x 26 |
96 x 24 |
|
Module resolution (pixels) |
4096 |
2704 |
2304 |
|
Module size(mm) |
500 x 125 |
500 x 125 |
500 x 125 |
|
Pixel density(pixels/m²) |
65746 |
43396 |
36980 |
|
Recommended mininum viewing distance(M) |
4 |
5 |
5 |
|
Brightness(cd/m² ) |
1300≥&≥1000 |
1300≥&≥1000 |
1300≥&≥1000 |
|
Color Temperature(K)(Customers can specify the) |
10000--12000 |
10000--12000 |
10000--12000 |
|
Viewing angle |
H:110 V:100 |
H:110 V:100 |
H:110 V:100 |
|
Cabinet Pixel Matrix(pixels) |
128 x 128 |
104 x 104 |
96 x 96 |
|
Cabinet size(mm) |
500 x 500 x80 |
500 x 500 x80 |
500 x 500 x80 |
|
Cabinet Material |
Aluminiumdie casting |
Aluminiumdie casting |
Aluminiumdie casting |
|
Cabinet weight(KG) |
≈8 |
≈8 |
≈8 |
|
Colour |
16Bit x RGB |
16Bit x RGB |
16Bit x RGB |
|
Grayscale |
12Bit x RGB |
12Bit x RGB |
12Bit x RGB |
|
Brightness control |
100 adjusted automatically |
100 adjusted automatically |
100 adjusted automatically |
|
Video Frame Rate(HZ) |
≥60 |
≥60 |
≥60 |
|
Display Refresh rate(HZ) |
≥1000 |
≥1000 |
≥1000 |
|
Driving method(Scan Constant Current) |
1/16 |
1/13 |
1/12 |
|
Input voltage(V) |
AC 110\220\85-265 |
AC 110\220\85-265 |
AC 110\220\85-265 |
|
Input Power Frequency(Hz) |
50/60 |
50/60 |
50/60 |
|
Input Power (Max) (W/m² ) |
800 |
720 |
880 |
|
Input Power (Average)(W/m² ) |
400 |
360 |
440 |
|
Working temperature |
-20ºC_50ºC |
-20ºC _50ºC |
-20ºC _50ºC |
|
Storage temperature |
-35ºC~85ºC |
-35ºC ~85ºC |
-35ºC ~85ºC |
|
Working humidity |
10%_95% |
10%_95% |
10%_95% |
|
Lifespan(H) |
≥100000 |
≥100000 |
≥100000 |
|
Application |
indoor |
indoor |
indoor |
|
Dot Defective rate |
≤0.0003 |
≤0.0003 |
≤0.0003 |
|
Maintenance mode |
After the maintenance |
After the maintenance |
After the maintenance
|
Shenzhen Lightlink Display Technology Co., Ltd. is an integrated supplier of LED screens and LED lighting, it's headquartered in Shenzhen city, China. After 5-year's experience in LED screen and lighting, plus Lightlink R&D capacity and advanced workmanship, Lightlink is in a good position to offer turnkey LED solutions to its customers across the globe and guarantees high quality of the products which have been exported into a lot of markets, such as Southeast Asia, North and South America, Europe, South Africa, Middle East, etc. And enjoy good reputation for its added value. Our excellent corporate culture, effective management and attentative services have won the hearts of all customers at home and abroad. Lightlink has established good relationship with raw materials and components suppliers, sales agencies and other good channels. Also, Lightlink boasts its own encapsulation equipments and full-automated production line. Now Lightlink is dedicating itself to the maximization of its customers' interest. This, in turn, has brought Lightlink itself rich return.
