P10 Outdoor LED Billboard display can be mounted on wall or pillar,P10 is 10,000 pixels/sqm.It's one of the most widely used led sign for outdoor advertising application due to its high brightness,reliable quality and economic cost.
Application:

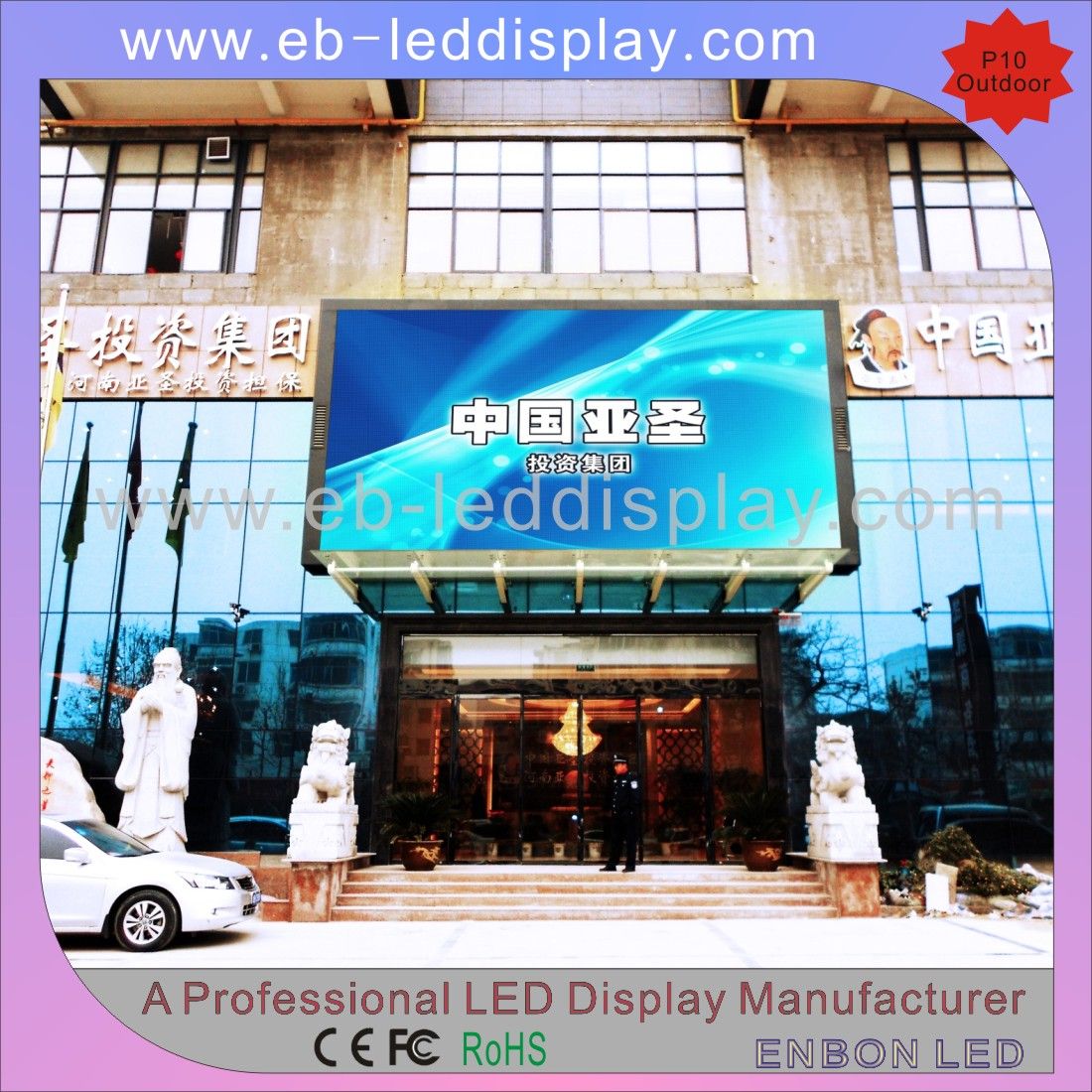

Can be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, staticproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Features:
:
1) Waterproof,IP65 front and IP54 at the rear side
2) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
3) No mosaic due to excellent flatness and nice uniformity of light-emitting
4) Wide viewing angles and the horizontal angle can reach 110° The images effect will not Change largely in the range.
5) Aluminum cabinet can be used for lower weight.
6) Single-lamp maintenance with low cost.
7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
8) Environmental-friendly and energy-saving.
|
Technical Prameters |
|
PROJECT |
P10 outdoor LED Billboard Display |
|
Pixel pitch |
10mm |
|
Pixel density |
10000 Pixels/sqm |
|
Module size(W*H) |
160 (mm)W*160 (mm)H |
|
|
Module pixels(W*H) |
16 Pixels(W)*16 Pixels(H) |
|
|
Pixel configuration |
1Red 1Green 1Blue |
|
Drive mode |
constant current driving static scan |
|
LED lamp type |
Epistar DIP346 |
|

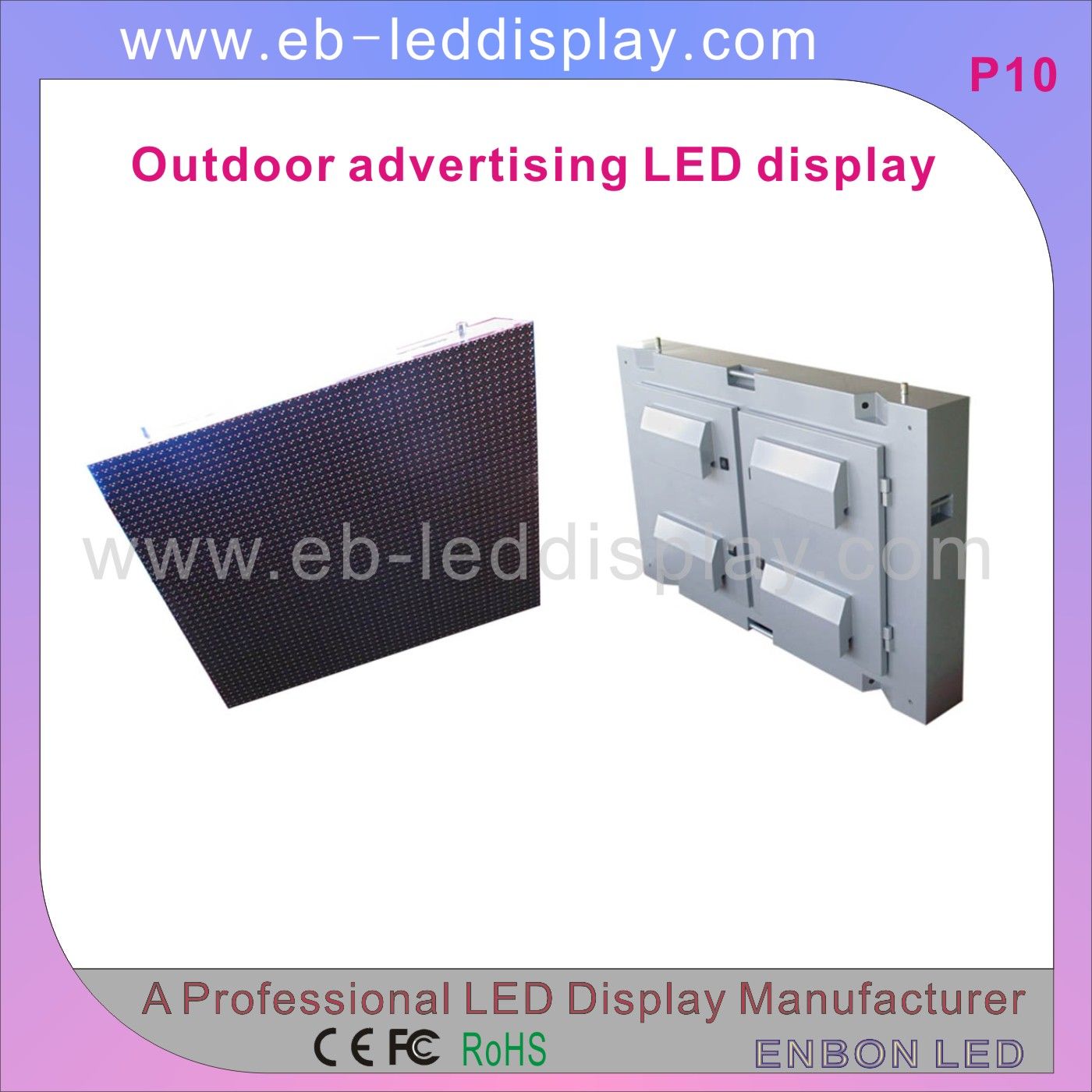

Cabinet size(W*H*D) |
960 (mm)W*960 (mm)H |
|
|
Cabinet resolution |
96 Pixels(W)*96 Pixels(H) |
|
|
Color scale |
65,536 degree |
|
View angle(H/V) |
110/70 degree |
|
Brightness (White balance) |
≥7000cd/sqm. |
|
Power consumption(one cabinet) |
Max:750W/sqm. Average:250W/sqm. |
|
Operating Voltage |
AC100V±10% or 220V ±10%; 50---60HZ |
|
Net weight |
60 Kg / M 2 for Iron cabinet |
|
Operating temperature |
-20°C----+50°C (Customized power supply:-45°C---+60°C) |
|
Operating humidity |
10%_95%RH |
|
Life time |
≥100,000hours |
|
MTBF |
5,000 hours |
|
Whole Display Flatness |
≤0.1mm Juncture |
|
Frame frequency |
>60 Hz/s |
|
Refresh rate |
≥2000Hz /s |
|
Control distance |
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
|
Power |
110V/220V±15% 50--60Hz |
|
LED control system |
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
|
Operating system |
Windows 2000 / Windows Xp / Windows 7 |
|
Protections for outdoor display |
IP65 |
|
Maintenance way |
Rear Access |
|
Accepting signal with video processor |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
