IP65 rated and at 5000 nits for daylight viewing, AirULTRA is an extension of our very successful AirLED series to service the highest definition market need for outdoor high-performance display, offering excellent gray scale and black levels with an unbeatable color fidelity and color uniformity at extremely high contrast ratio of 4000: 1.

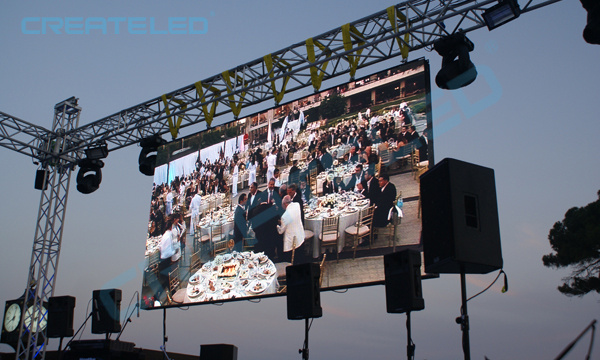

Combining ultra-lightweight panel design of AirULTRA series with same remarkable high-performance and life time operating cost-efficiency, ease of handling, this AirULTRA high resolution product is the ideal solution for outdoor rental and fixed installation.
A truly waterproof high resolution outdoor SMD based LED display, AirULTRA is the result of the extensive research into making the real outdoor products, which offers excellent contrast and image quality without the yellowing side effects of waterproofing by paralyene coating of yester years. It allows easy and quick swapping of the LED modules and power/control box from the panel frame.
Key Benefits
1. Ultra-High output brightness of more than 5, 000 nits, sunlight readable.
2. IP Rating: IP65 front/IP54 backside.
3. Excellent thermal management.
4. High resolution display available in nominal pixel pitch sizes of 6, 7 and 10mm.
5. Wide viewing angles of 160 degree.
6. Silent operation.
7. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
8. Lightweight and seamless patented precision extruded aluminum section structure.
9. Removable power/control box design.
10. Real white, brilliant color, best of class color fidelity and breathtaking grayscale.
|
AirULTRA-7 |
|
|
Pixel Pitch |
7.8mm |
|
LED Type |
3-in-1 SMD |
|
Brightness |
4, 500nits-5, 000nits |
|
Viewing Angle |
H: 160 degree |
|
V: 100 degree |
|
Contrast Ratio |
4000: 1 |
|
Pixel Density |
16, 384/sqm |
|
1, 524/sqf |
|
4, 096/panel; 6, 144/panel |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
32 x 32 |
|
Panel Size(WxHxD) |
500mmx500mmx82mm |
|
Panel Resolution |
64 x 64 |
|
Weight |
10kg/panel |
|
Power Consumption |
300W/Panel Max |
|
120W/Panel Ave |
|
Processing |
16 bit/color |
|
Refresh Rate |
600-1,200Hz |
|
Drive Method |
1/2 Scan Method |
|
Environment |
Outdoor or indoor use |
|
Max Stacking |
20 panels |
|
Max Hanging |
20 panels |
|
Servicing |
Front & Back |
|
Panel Material |
Precision Extruded Aluminum Section |
|
Source Compatibility (with Processor) |
VGA(RGBHV), DVI, HDMI, SDI(HDSDI) |
