Createled Indoor Fullcolor SMD LED Display Airmag-4 for Car Show

Createled Indoor Fullcolor SMD LED Display Airmag-4 for Car Show
Price: US $ 2500-3500/Square Meter
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: T/T
CreateLED indoor fullcolor SMD Led Display AirMAG-4 for car show.
AirMAG-4 indoor led display
CreateLED AirMAG-4, a highest-performance indoor LED display offers the deepest black level with extremely high contrast ratio of up to 4, 000: 1, now is more and more popular in the market. With the ultra lightweight, AirMAG-4 LED display guarantees a quick and easy installation. With output of 1, 200 Nits and 16 bit color processing, this LED video display is sure to deliver the super amazing image quality in any indoor setting, ideal for applications requiring extremely close viewing distances.
Key Benefits
1. Extremely close view distance and wide view angle
2. Silent operation, little heat generated ( no fans)
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple
4. Lightweight and seamless, precision extruded aluminum section structure
5. Real white, brilliant colors, breathtaking grayscale

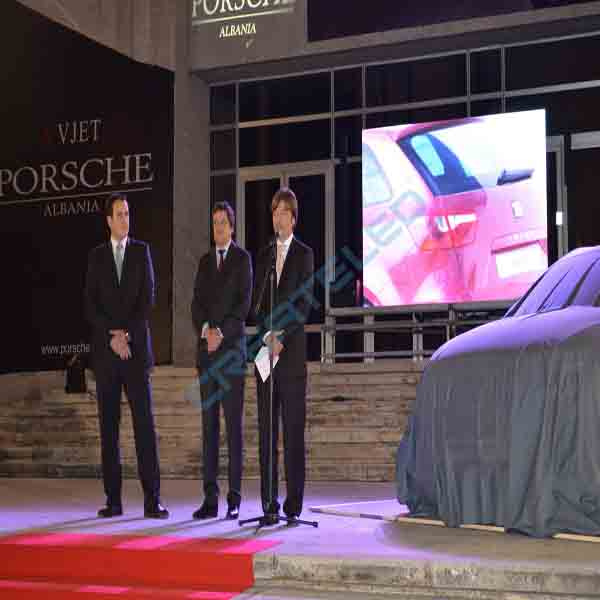

Ideal For: Theater and Arts, TV Shows, Car Shows.
AirMAG-4 indoor led display Features
Easy maintenance
The modules are completely assembled into cabinet by magnet, available to dismantle from either front or rear side. All control components are integrated as a"Hot-Swap" which is attached to cabinet backside to allow movable in emergent maintenance.

Good cooling performance
Special module design with shutter at back guarantees this AirMAG-4 good cooling performance.

Extremely Black
The deepest black body LEDs with deepest basalt black surface, plus the new design advanced light trap louver, guarantees a perfect exceptional picture quality in all circumstances.
High contrast ratio of 4, 000: 1

Seamless and Lightweight
Structure made of precision extruded aluminum, intelligent interlocking system allows it truly seamless, quick-lock mechanisms makes the rapid set up and dismantle in a few seconds.
Weight including structure and cables is only 7.5kg/panel, 30kg/sqm, which is ideal for setup and teardown as well as economical crating and transport.

Advanced video processing, breathtaking grayscale
Provides 16 bit image processing for 281 trillion colors resulting in a crystal-clear picture with true-to-life color reproduction. Vibrant images, with a tight selection of LEDs to get uniform colors across the entire display surface, detailed image with smooth motion reproduction, the color triangle of AirMAG-3 is actually much wider than normal.

Standard design & Standard components
This AirMAG series design with the standard size of 500mmx500mmx65mm panels and standard size of 250mmx250mm modules, uses industry-standard power and signal interconnects to reduce display downtime and replacement costs.
  AirMAG-4
Pixel  Pitch 4.6mm
Unit  Size 500mmx500mmx65mm
LED  Type SMD  3-IN-1(black  body)
Pixel  /  Unit 108x108
Unit  Weight 7.5kg
Viewing  Angle H160  degree  V160  degree
Contrast  Ratio 4000:   1
Application Storage-40~60°   C,       Working-20~50°   C
Protection  Level For  indoor  use  only
Power  Consumption 150W/panel  Max
60W/Panel  Ave.
Driving 1/16  Scan
Frame  Refresh ≥   60Hz
Data  Refresh  Rate 600~2,   000Hz
Processing 16bit
Max  Brightness 1,   200nits
Power  Supply AC90-240V,   50~60Hz
MTBF ≥   1,   000  Hours
Life  Span ≥   50,   000  Hours
Pixel  Failure <   0.0003
Prod Model: AirMAG-4
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Resolution: 108 X 108 Pixel/Panel
Tube Chip Color: Full Color
Display Function: Video Display
Application: Shopping Guide
IP Rating: IP54
Certification: CCC
System Operating Platform: WIN XP
Scanning Mode: 1/9scan
Pixel Configuration: SMD 3-in-1
Pixel Pitch: 4.6mm
Pixel Density: 46.656 Pixel/Psm
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.

Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.

About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.

Welcome to our Showroom and My Products for more detailed offer info.
