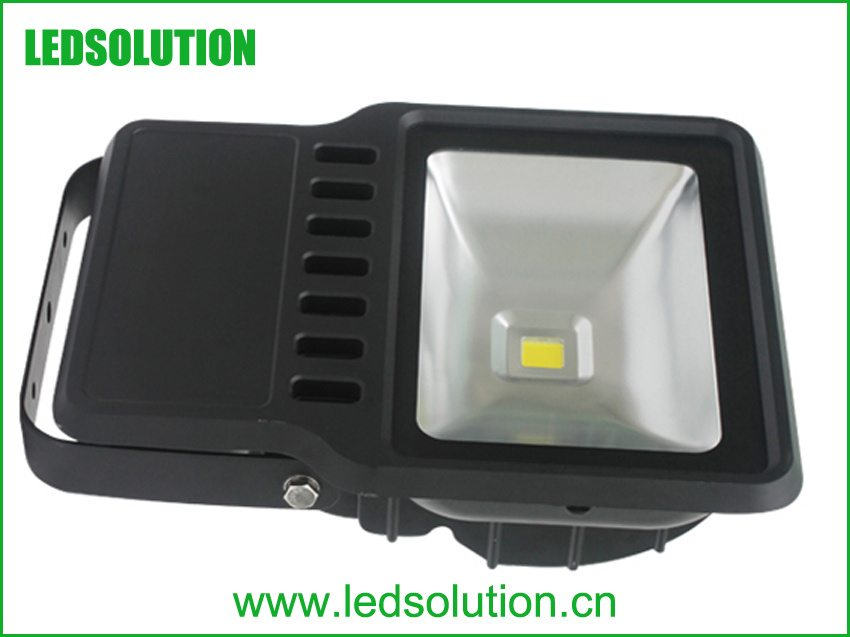

2014 Big Sale High Quality Super Bright High Power LED Floodlight for Warehouse, Gas Station, Parking Lot, Stadium, Tunnel, Museum Gym.
Product Feather
--Aluminum die-cast alloy body and toughened glass, durable
And completely corrosion resistance.
--Good heat dissipation performance.
--IP rating is up to Ip65.
--High utilization of power, PF ≥ 0.9.
--Compared with traditional ones, Energy-saving percentage: 60%.
--Use 1 PCS Integrated high-power (COB).
--Service life over 50000 hours.
--Follow RoHS and CE Certified.
Application:
Widely used for outdoor lighting, Mainly for roads advertising, parking, store, roof advertising. Subway, building highway, Road toll stations, garden lighting and decorative lighting, It can be also used for the street light and tunnel lighting
Why Choose us! We are your best partner?
1. Many solution for you, Chips, Power supplier, Customize your product, So easy!
2. We have our own injection molding factory. Which can have better control on production cost and ensure delivery.
3. Our price is very competitve, we count on our profit based on total large quantity. So we can offer you very competitive price with the most stable solution.
|
Model NO. |
Item No |
LS-F11-10W |
LS-F11-20W |
LS-F11-30W |
LS-F11-50W |
LS-F11-70W |
LS-F11-80W |
|
Optical Parameters |
LED Light Source |
1PCS*10W |
1PCS*20W |
1PCS*30W |
1PCS*50W |
1PCS*70W |
1PCS*80W |
|
Luminous Flux(lm) |
550±10% |
1500±10% |
2100±10% |
3600±10% |
5200±10% |
5900±10% |
|
CCT(K) |
6000-6500
4000-4500
2800-3200 |
6000-6500
4000-4500
2800-3200 |
6000-6500
4000-4500
2800-3200 |
6000-6500
4000-4500
2800-3200 |
6000-6500
4000-4500
2800-3200
|
6000-6500
4000-4500
2800-3200 |
|
CRI(Ra) |
70 |
70 |
70 |
70 |
70 |
70 |
|
Beam Angle |
120 |
120 |
120 |
120 |
120 |
120 |
|
Electrical Parameters |
Input Voltage(V) |
AC100-240V |
AC100-240V |
AC100-240V |
AC100-240V |
AC100-240V |
AC100-240V |
|
Total Power(W) |
10 |
20 |
30 |
50 |
70 |
80 |
|
Power Factor |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Lifespan (Hrs) |
30000 |
30000 |
30000 |
30000 |
30000 |
30000 |
|
Conversion Efficiency(% |
80 |
85 |
80 |
88 |
88 |
88 |
|
Structural Parameters |
Material |
Die-Casting+ Glass |
Die-Casting+ Glass |
Die-Casting+ Glass |
Die-Casting+ Glass |
Die-Casting+ Glass |
Die-Casting+ Glass |
|
Size(mm) W*L*H |
150*190*50 |
150*190*50 |
225*280*65 |
225*280*65 |
270*330*80 |
270*330*80 |
|
Net Weight(kg) |
1.05 |
1.10 |
2.35 |
2.40 |
5.20 |
5.20 |
|
Integrated Parameters |
Working Temperature |
-20~+45 |
-20~+45 |
-20~+45 |
-20~+45 |
-20~+45 |
-20~+45 |
|
Storage Temperature |
-20~+55 |
-20~+55 |
-20~+55 |
-20~+55 |
-20~+55 |
-20~+55 |
|
Working Humidity |
40-90%RH |
40-90%RH |
40-90%RH |
40-90%RH |
40-90%RH |
40-90%RH |
|
IP Grade |
65 |
65 |
65 |
65 |
65 |
65 |
|
Warranty |
2 Year |
2 Year |
2 Year |
2 Year |
2 Year |
2 Year |
Packing Parameters |
Packaging Material |
Inner box: B9
Carton: K=K |
Inner box: B9
Carton: K=K |
Inner box: B9
Carton: K=K |
Inner box: B9
Carton: K=K
|
Inner box: B9
Carton: K=K |
Inner box: B9
Carton: K=K
|
Inner box size
L*W*H ( mm ) |
180*240*65 |
180*240*65 |
260*340*110 |
260*340*110 |
300*390*120 |
300*390*120 |
Carton size
L*W*H ( mm ) |
380*350*500 |
380*350*500 |
570*540*360 |
570*540*360 |
620*410*260 |
620*410*260 |
|
Qty / Carton |
20 |
20 |
10 |
10 |
4 |
4 |
|
Gross Weight (kg)/Carton |
23±5% |
23±5% |
26±5% |
26±5% |
22±5% |
22±5% |
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.
With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.
For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality
And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
