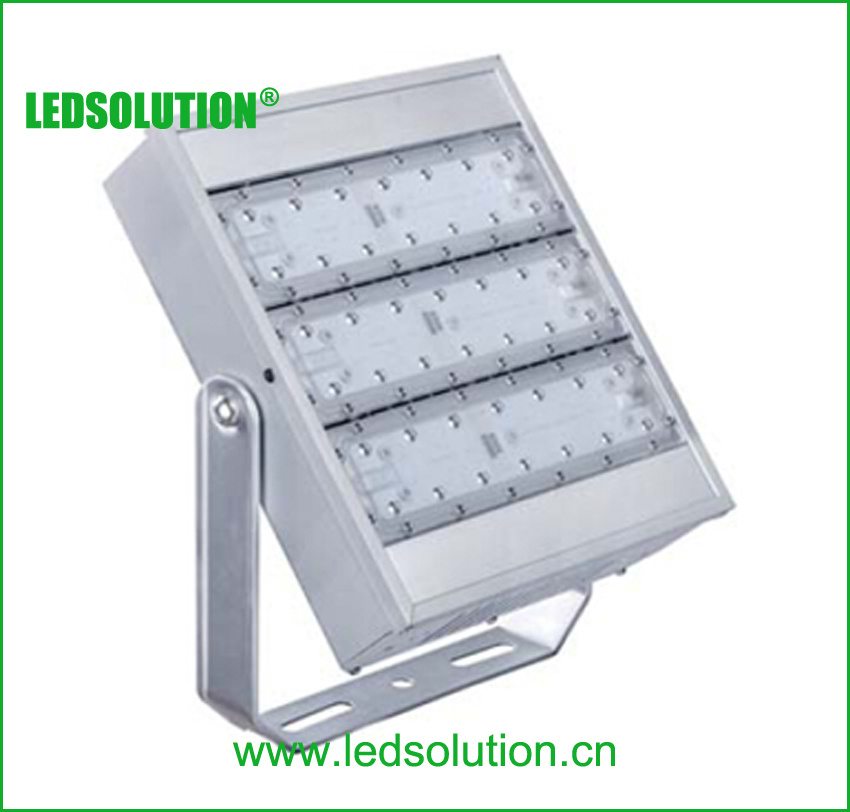

120w outdoor indoor led flood light
Specifications of 120W P-Series led flood light
| Specifications |
| Model No. | LS-FL40P | LS-FL80P | LS-FL120P |
| Nominal Wattage | 40W | 80W | 120W |
| Lumen Output | 3800lm | 7600lm | 1140lm |
| Fixture Dimension | 166x277x165mm
6.5x10.6x6.5inches | 239x270x165mm
9.4x10.6x6.5inches | 312x270x165mm
12.3x10.6x6.5inches |
| Fixture Weight |
2.4kg/5.3lbs |
3.6 kg /7.9 lbs |
4.6 kg /10.1 lbs |
Packing Dimension |
285 x370 x200 mm
11.2 x14.6 x7.9 inches |
355 x370 x200 mm
14.0 x14.6 x7.9 inches |
430 x370 x200 mm
17.0 x14.6 x7.9 inches |
| Packing Weight | 3.1 kg /6.8 lbs | 4.4 kg /9.7 lbs | 5.4 kg /11.9 lbs |
| Maximum Current | AC 0.41A -120V,
0.21A -240V,
0.18A -277V | AC 0.82A -120V,
0.41A -240V,
0.36A -277V | AC 1.23A -120V,
0.62A -240V,
0.53A -277V |
| Nominal Voltage | AC 100-240V /277V, 50/60Hz |
Operation
Temperature | -40 ºC to +50 ºC |
| Power Factor (PF) | > 0.9 |
| Driver Efficiency | > 90% |
| Photometric Type | 60º | 90º | 110º |
| Ratings | IP66, IK10 |
| Lumen Maintenance | 60,000 hours -L70(9K), @25 ºC (77 ºF) |
Applications of 120W P-Series led flood light
Bill Board
Area lighting
Architecture Lighting
Landscape Lighting
Buildings
Product Benefits of 120W P-Series led flood light
PHILIPS LUMILEDS LED LUMINOUS SOURCE
The LEDSOLUTION P-Series LED Flood Lights are utilizing PHILIPS LUXEON T LED luminous source, providing excellent lumen output - up to 95 LPW, long-lasting stability and splendid sight.
Each LUXEON T owns eletrostatic protection component, maximally avoid the damage of electrostatic.
MEAN WELL LED DRIVER
Full Range of LEDSOLUTION P-Series LED Flood Lights are Utilizing MEANWELL HLG Series high-end driver, optimal operation stability, lifespan and performance.
LEDSOLUTION 3 GENERATION LED MODULE
Exquisite design with powerful thermal output, with more reliable waterproof performance.
XTREME LUMINAIRE DESIGN
Equipped with excep onal LEDSOLUTION 3 generation LED module, the P-Series LED Flood Lights give best luminous output, stability and extra long life. P-Series LED Flood Lights are intended to build the most cost-performance luminaires ever.
LEDSOLUTION completed the R&D independently, and reserve all related patents for P-Series LED Flood Lights.
Easy assemble/disassemble, neat wiring & connection, up to 95 LPW luminous efficiency, IP66 and IK10 Rated, 90%+ driver efficiency, over than 100,000 hours opera on life and 5 years warranty.
Package
Packing Type
1unit(s) /ctn.
