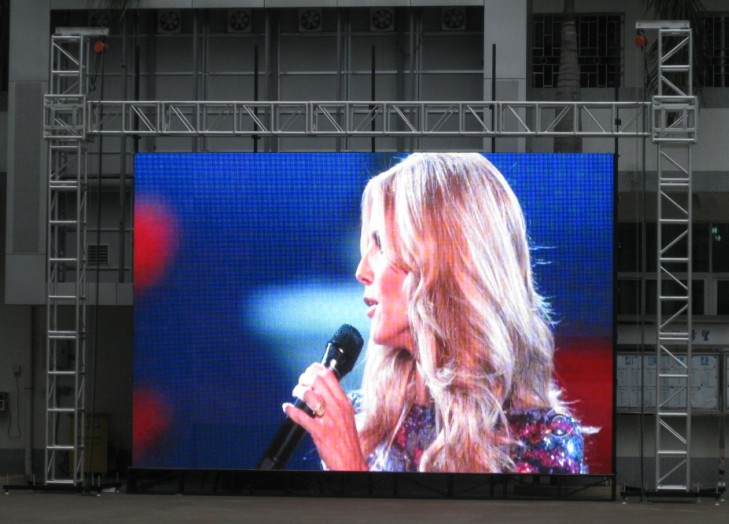

Outdoor IP65 Outdoor LED Display for Advertisement
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
We are manufacture more than 9Years. Have 2 factouries.
1. Warranty: 2years
2. Maintenance free, we will take the half of courier charges.
2. Shipment: We have two factories to produce your large orders, pls rest assured.
|
ITME |
SPECIFICATION |
|
Pixel Unit |
Dot Pitch:12.5mm
MODULE SIZE:400*200mm
Pixel Density:6400 Dots/m2
Two Color:1R1G1b
Led chip spec:DIP546
Brightness;6500cd/m2
Module resolution:(W)32dots×(H)16dots
International Protection (Front/Rear):IP65/IP54
Cabinet Weight:35kg/m2 |
|
LED Display |
Best View distance: 10~150m
Viewing angle-Horizontal : 110 degree;
Viewing angle-Vertical : 90 degree
Environment Temp:-40C ~+85C
Working Temp:-20C~+50C
Operating Humidity Range:≤90~95%
Thickness:≤12cm |
|
Power Supply |
Operating Voltage:220V±5%
Average Power:200W/m2
Max Power:500W/m2 |
|
Control System |
Host:p4-80G/512m or better
Operating system:Windows2000/ NT/XP/7
Control mode:Synchronous control
Graphic card:DVI
Media card:PCTV |
|
Main Technical Parameter |
1)Driving IC:MBI Led Driver
2)Scan mode:4S
3)Frame frequency:≥60 frame/s
4)Refresh rate:≥300 frame/s
5)Grey scale levels/Color processing:256levels,Process 16.7M colors
6)Full white brightness: ≥6000cd/m 2
7)Brightness' adjustment mode:100 levels available
8)Video signals:PAL/NTSC
9)Video Input/Output:8/8
10)Control System:Nonlinear Edit Card+DVI Graphic card+
Control card+Optical fiber transmission (optional)
11)MTBF:≥5000 hours
12)Life-span:100,000 hours
13)Flatness:neighbor pixel≤0.5mm;module joint gap<1mm ;
14)Uniformity:pixel light intensity\module brightness uniformity
15)Power switch:Auto Switch
16)Switch power supply load:5V/40A
17)Computer display mode:800×600;1024×768
18) Network cable transition distance: 100m
Multi-mode optical fiber transition distance:500m
Mono-mode optical fiber transition distance:20km |
|
Software |
LED Regular display software(MDK) |
|
Protection |
Moisture/dust/ Resistant, electrostatic prevention, shockproof, meanwhile, against over-current, short-circuit, over-voltage and low voltage |
| Prod Model: |
P12.5 outdoor led display fixed installation |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Promotion Price: |
Lower 3-8% |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Application: |
Advertising |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CCC |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
300W / m² |
| Pixel Pitch: |
12.5mm |
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
