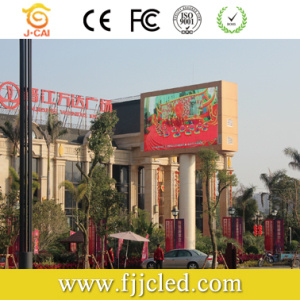

Good Quality P10 Outdoor LED Display

Name: Good Quality P10 Outdoor LED Display
Brand: yourledlight.com
SKU: 740934595
Availability: InStock
Rating: 5 (123 reviews)

Price:	US $ 9.67-12.91/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Brilliantopto Co., Limited

Showroom Product Company Profile

Jingcai (Fujian) Brilliant Optoelectronic Technology Co., Ltd.

JINGCAI photoelectric consistent source of strength for the customer is the company's growth and expansion ,the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
through the efforts and collaboration of all employees of the company,the products are exported to Europe,North America, Australia ,the Middle East,and the establishment of a stable distribution agents in the respective regions.Company in good faith with the talents and distribution to join the LED display system and common development ,and make due contribution to the development of LED display system.

Why choose us:
Product advantages:
1. Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.

Product Description

1.Price Advantage: we have the best competitive price at the market, also have the same even better quality.

2.Quality advantage: From material to finished product, from design to produce, we control all steps.

3.Service advantage: Better service at same situation, better cooperation at same service.

4.We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.

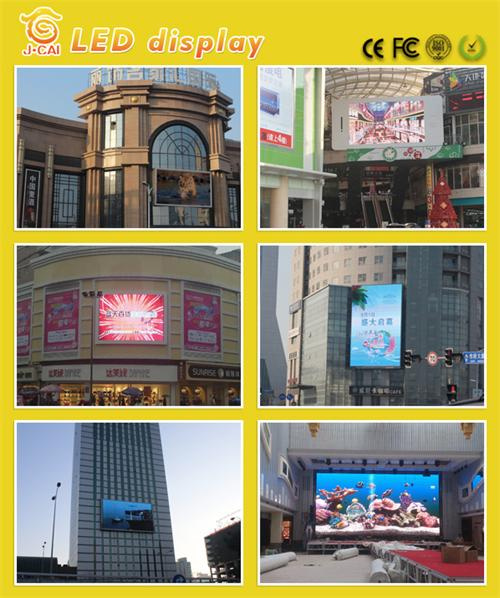

Products Show:

Products list:
1. P3\P4\P5\P6...Indoor full color led display;
2. P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.

FYI: we would like to know more details before offering you the best quotation.
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.

please advise it as well.

Company Certifications:

FAQ:

1. Are you manufacturer? If yes, in which city?

Yes, we're factory with 23,000 square meters. And we're in Quanzhou city, Fujian Province.

2. Can I visit your factory ?

We warmly welcome customers visit us. Before you come here, please kindly tell me your schedule, we can arrange for you. The nearest airport is Jinjiang airport, but there are more airplane in Xiamen airport.

3. Can you provide me your catalogue?

We specialize in producing and developing all kinds of led displays. As a reliable LED Display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price.

Our new branch factory:

Our features
1. Good price
our price is 10% lower than the market because of the introduction of full automatic production line with the characteristics of reducing the cost of labor and management.
2. Lightweight
aluminum cabinet greatly saving fright cost and conveniently installing.
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate
less than 0.0001. MTBF more than 1000 hours.
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan.
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV and other equipments.
6. Quality insured by CPIC and 3-year QA.
1. P3\P4\P5\P6...indoor full color led display;
2.P10/P12/P12.5/P16/P20/P25...outdoor full color led screen;
3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.

Pixel Pitch	10mm
Module Size(W×H)	160mm*160mm
Module Resolution(W×H)	16*16dots
Pixel Density	10,000 (dots/ m2)
Lamp Origin	Epistar
Pixel Configuration	1R1G1B
Led Specification	DIP346
Gray Level/ Color	65536 lever /16.7M
Brightness	≥7,000cd/m2
Best view angle	Horizon: 120° Vertical : 90°
Control method	Synchronous
Scanning method	1/4 constant current
Power consumption	Average: 540w/m2 Max : 800w/m2
Best viewing distance	8~150m
Lifespan	≥100,000 H
MTBF	≥10,000H
Frame frequency	≥60HZ
Refresh frequency	≥300HZ
System Working Temperature	–20°C ~ 50°C
System Working Humidity	10 ~ 95%RH
Power	5V/40A
Module weight	425g/pc
Brightness control lever	0 ~ 100 lever
Maintenance way	Rear access
Environment temperature	-40°C ~ +85°C
Suitable voltage	DC5V
Spending card	kilomega network card
Video signal	PAL/NTSC
Working voltage	220V±10%

Prod Model:	P10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
DOT Pitch:	10mm
Module Dimension:	160*160mm
Module Resolution:	16*16
DOT Density:	10000
Brightness:	7500CD
LED Specification:	1r1g1b
Pixel Configuration:	DIP346
Driving IC:	Jxi5020
Scan Mode:	1/4scanning
LED Lamp Brand:	Epistar
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Application:	Advertising
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	10mm
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Certification:	RoHS
Pixel Density:	10000 dot / m²
Average Power Consumption:	350W / m²

Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.

In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.

Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.

Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.

Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
