√ 10 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
Product Description

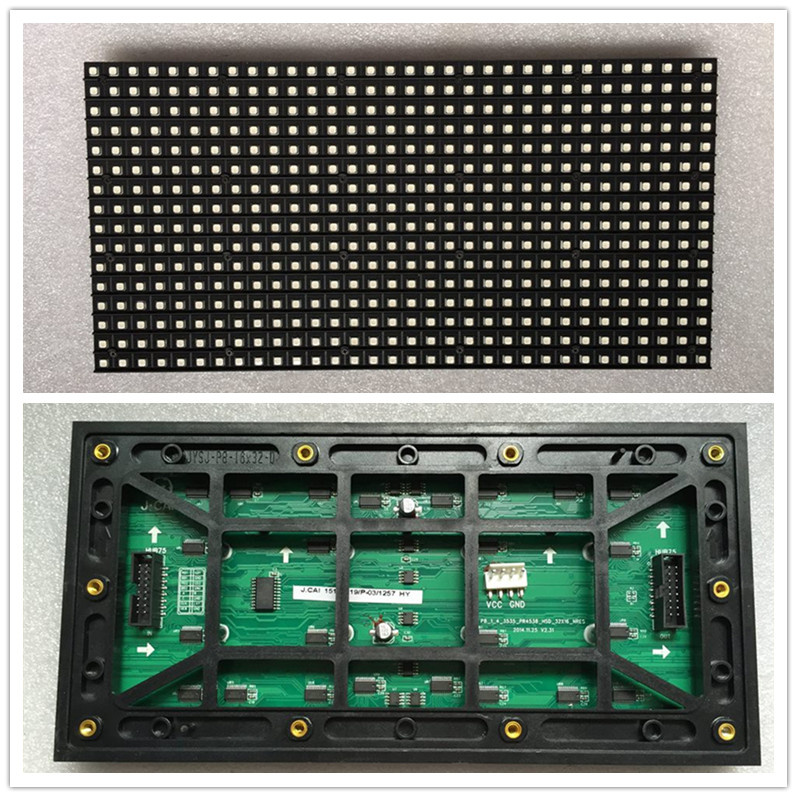

1) P8 SMD3535 led module is made by first-class LED Lamp, supporting displaying text, graphic, animation and video with synchronous or asynchronous mode.
2) High brightness and contrast, good flatness and viewing angle, low energy consumption
3) Easy installation & application, freely meet customers' personalized requirements.
4) Long-term brightness capacity throughout product lifetime
5) Temperature surveillance and humidity display can be extended.
6) General configuration: 200W power supply, LINSN receiver & sender, iron cabinet and video processor
7) Product performance: 100,000 hours efficient life-span & 10,000 hours MTBF.
8) Application location: building facade, roadside column, bank, school, shopping mall, etc.
Packaging Methods Available
1) Carton box with foam plate & EPE
2) Neutral carton box with no company logo
3) Anti-shaking wooden case package
4) Flight case package with convenient transport
5) Customizable package can be designed and made.
Shipping methods: by DHL, FedEx, UPS, TNT, Air or Sea.
Our safe and reliable package can guarantee safe transportation and delivery for your goods.
Our Services
1) Responding time to inquiry: within 24 hours
2) OEM&ODM: design and produce your customized requirements.
3) Provide customized design and models from distributors we already have.
4) Protect your sales area, design idea and all your private information.
5) Top quality + reasonable price + patient after-sales service.
6) Our best service starts before order. Related product information will be provided to customers to help him make the decision. Information includes size, color, picture, certificate, packing way, shipping way, etc.
7) As to order production, we update production state and send feedback to customers, keeping them updated with their order, such as finished product quantity, production time, package and also take aging test pictures. After sending goods out, we provide tracking number for customers to track goods state at any time.
8) After-sale service: we provide one year warranty for single/double color and two year for full color. During this period, customers can enjoy maintenance service for free. Related quantities of accessories will be provided to customers for free support.
Main Products We Provide
| Indoor SMD & Dot Matrix Full Color Series |
| P1.667 | 200*300MM | 120*180 PIXEL | 1R1G1B |
| P1.923 | 200*300MM | 104*156 PIXEL | 1R1G1B |
| P2.0 | 128*128MM | 64*64 PIXEL | 1R1G1B |
| P2.5 | 160*160MM | 64*64 PIXEL | 1R1G1B |
| P3.0 | 192*192MM | 64*64 PIXEL | 1R1G1B |
| 192*96MM | 64*32 PIXEL | 1R1G1B |
| P4.0 | 256*128MM | 64*32 PIXEL | 1R1G1B |
| P5.0 | 320*160MM | 64*32 PIXEL | 1R1G1B |
| P6.0 | 192*192MM | 32*32 PIXEL | 1R1G1B |
| 192*96MM | 32*16 PIXEL | 1R1G1B |
| P7.62 | 244*244MM | 32*32 PIXEL | 1R1G1B |
| 244*122MM | 32*16 PIXEL | 1R1G1B |
| P10 | 320*160MM | 32*16 PIXEL | 1R1G1B |
|
| Outdoor SMD & DIP Full Color Series |
| P5.0 | 160*160MM | 32*32 PIXEL | 1R1G1B |
| P6.0 | 192*192MM | 32*32 PIXEL | 1R1G1B |
| P8.0 | 256*128MM | 32*16 PIXEL | 1R1G1B |
| P10 | 320*160MM | 32*16 PIXEL | 1R1G1B |
| 160*160MM | 16*16 PIXEL | 1R1G1B |
| P12.5 | 400*200MM | 32*16 PIXEL | 1R1G1B |
| P13.33 | 320*160MM | 24*12 PIXEL | 1R1G1B |
| P16 | 256*256MM | 16*16 PIXEL | 1R1G1B |
| P20 | 320*160MM | 16*8 PIXEL | 1R1G1B |
| P25 | 400*200MM | 16*8 PIXEL | 1R1G1B |
Brief Company Introduction
1) Company name: Brilliantopto Limited Company
2) Foundation year: 2005, 10 years history
3) Strength rank: top 3 among same-grade manufacturers in China
4) Registered capital: USD 3.5 million
5) Workshop area: 40,000 square meters (Headquarter & branch factory)
Mission: Lighten up your vision & make your life Brilliant
Values: Be resolute and broad-minded, positive, extend innate knowledge
Vision: Customer first, work hard, work smart and work happy
Slogan: Brilliantopto displays the world!
Striving for achievements, fighting for the top
Six Main Elements for Installation of Outdoor LED Display
1) Install lightning protection devices on display and building
Main display part and exterior cover must be grounded well, with grounding resistance of less than 3 ohms, thus discharging large current caused by lightning in time.
2) Water proof measures for LED display
LED display and combination between display and building must be strictly water-proofed. LED display must adopt good drainage measures in the event of smooth water emissions. Pay attention to water and moisture proof.
LED display is installed outside, facing poor working conditions, such as sun and rain, wind and dust. Getting wet and damp of Electronic equipment can cause serious short circuit, causing malfunction or a fire and resulting in losses.
3) Selection on chip
Selection of industrial grade integrated chip with operating temperature between -40 ºC ~ 80 ºCcan prevent over low temperature in winter.
4) Installation of ventilation equipment
This can keep internal temperature between -10 ºC ~ 40 ºC for LED display.
Install axial flow ventilator on the back top of LED display.
A certain amount of heat will be caused with normal running of LED display. If ambient temperature is too high and heat dissipation is not smooth, integrated circuit may not work properly, or even destroyed, thus display system failure to work.
5) Selection of ultra-high-brightness light-emitting diode
To ensure long-distance visibility under strong ambient light conditions, ultra-high brightness light-emitting diodes must be selected.
Contrast increase, wide audience sighting, long viewing distance and wide viewing angle are required.
6) Selection of display media with wide viewing angle
The outer packaging of such display media, with wide viewing angle, pure color, consistent coordination and life span over 100,000 hours, is the most popular square tube with side cover.
It is silicone sealed and metal-free assembly with exquisite appearance, durable usage, anti direct sunlight, anti-dust, water proof, anti high temperature and anti short circuit.
Product Detailed Specifications
| No. | Items | Specs |
| 1 | Grey Level | 16384 levels |
| 2 | Display Color | 16777216 kinds |
| 3 | Best Viewing Distance | 8~32M |
| 4 | Frame Rate | ≥60 Hz/s |
| 5 | Refresh Rate | >600 Hz (All grey level field) |
| 6 | Brightness Adjustment | 256 level manual/automatic |
| 7 | Continuous Working Hours | >72 hours |
| 8 | Uniformity | Strong pixel light, even module brightness |
| 9 | Malfunction Dot Rate | <0.01‰ |
| 10 | IP Protection Grade | IP65 |
| 11 | Average Power Consumption | ≤627 W/m2 |
| 12 | Max. Power Consumption | ≤877 W/m2 |
| 13 | Working Voltage | AC220V/380V±10%,50Hz |
| 14 | Storage Temp. | -30ºC ~ 90ºC |
| 15 | Working Temp. | -20ºC ~ +50ºC |
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
