Product Description

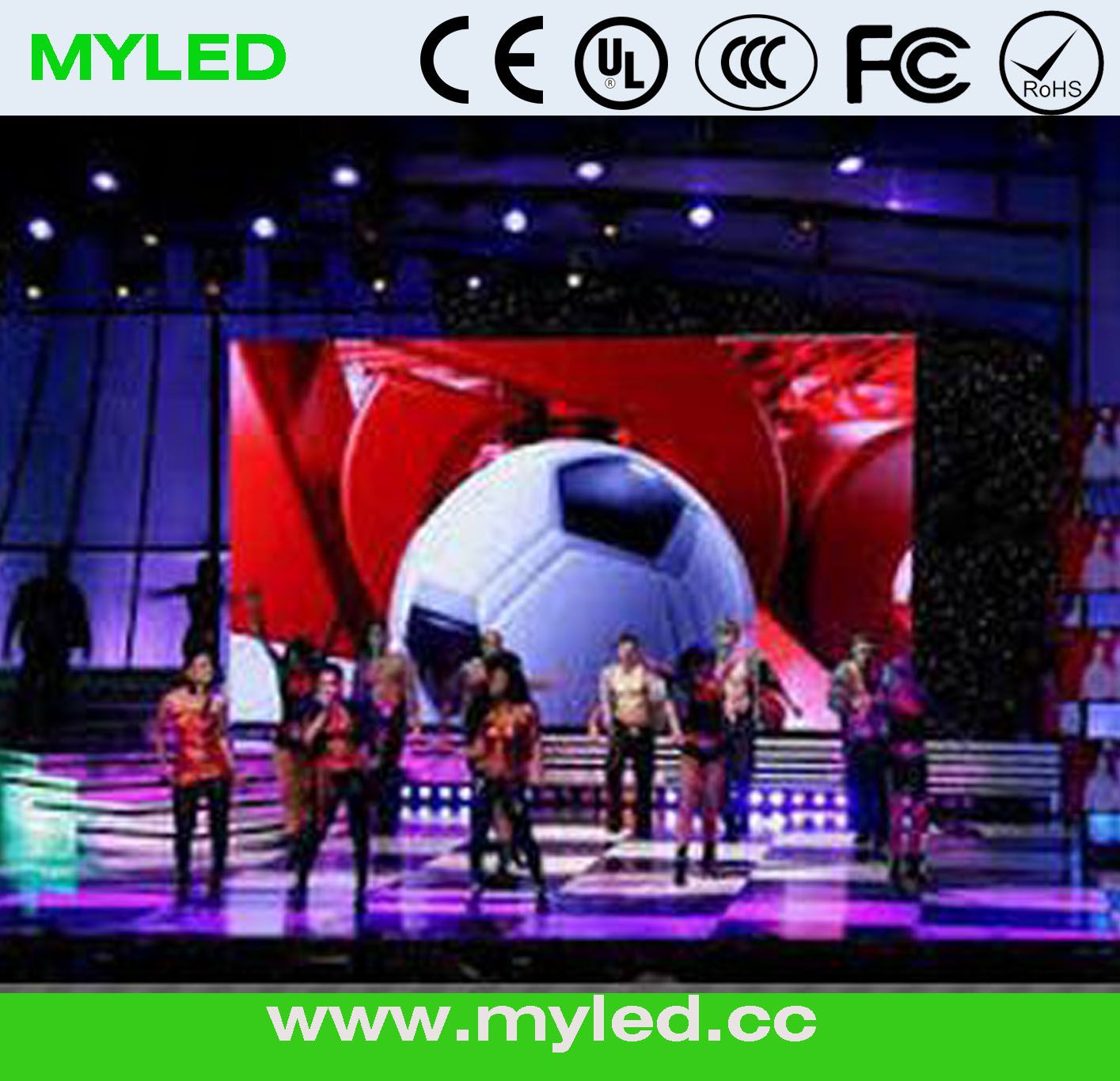

1 LED Dance floor is designed for stage, night club, and disco usage.
2 It can be loaded with heavy weight and be viewed within short distance of 1 meter. The built-in mounting track and smart connector solutions make assembly of even very numerous modules fast and easy.
3 Installed around the upper and lower connector, marked with screws, power and signal connectors can be also easily connected.
4 The creative of the flexible modular design can be versatile to create any shape including T units, curved appearance, staircase shape
5 The dancing floor adopts 3 in 1 SMD with the viewing angle up to 140 degree vertically and horizontally
6 Clear acrylic board of 15mm thickness is used for surface
7 With the strong construction frame, it can be loading 1 ton per sq. M
Resolution | 10 mm |
| LAMP | LED Type | SMD 3-in-1 |
| Wave length | R: 620 nm |
| G: 524 nm |
| B: 468 nm |
| BOARD | Pixel configuration | 1R1G1B |
| LED driving method | 1/2 dynamic scan |
| Pixels | 32 | * | 16 | (W*H) |
| Pixel pitch | 10 | mm |
| Led board size | 320 | mm | * | 160 | mm | * | 50 | mm |
| (W*H*D) |
| Net weight | 1.3 | kg |
| Power | AC220/110 ± 10%, 47~63Hz |
| Water proof | IP54 |
| Serviceability | Front service |
| DISPLAY | Max. power consumption | R | ≤ | 750 | W/m2 | N | ≤ | 750 | W/m2 | C | ≤ | 630 | W/m2 |
| Avg. power consumption | ≤ | 263 | W/m2 | ≤ | 263 | W/m2 | ≤ | 221 | W/m2 |
| Max. current (208V 60Hz) | ≤ | 4.01 | A/m2 | ≤ | 4.01 | A/m2 | ≤ | 3.37 | A/m2 |
| Hor. viewing angle(min 50% brightness) | 140° |
| Vert. viewing angle(min 50% brightness) | 140° |
| Brightness | ≥ 3000 cd/m2 |
| Pixel density | 10000 | /m2 |
| Power factor | > 0.9 |
| Certifications | UL, CE, ETL, ROSH, CCC |
| Contrast ratio | 3000: 1 |
| Operating temperature | -20º C to +60º C |
| Operating humidity | 20% to 90% |
| Lifetime (50% brightness) | 100, 000 hours |
| Processing | 16 bit |
| Colors | 687 billion |
| Refresh rate | ≥ 1200 Hz |
| Frame rate | 60 fps |
| Brightness level | Manual 100 levels, automatically 16 levels. |
