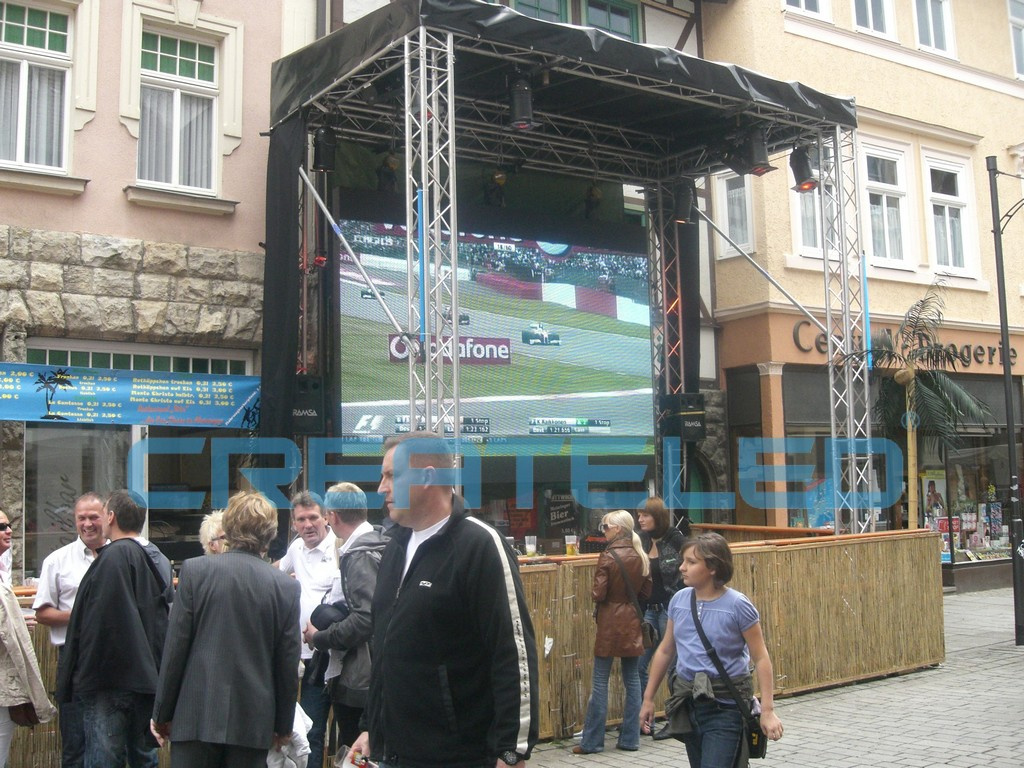

CreateLED precision extruded aluminum section design is also available for outdoor fixed installation and rental with its distinct design, like high brightness, excellent waterproof, Anti-dust and Anti-fungal technology. Small pixel pitch like 6mm with high resolution is an ideal choice for outdoor ceremony, events, providing a close view distance and wide view angle. The super bright SMD 3-in-1 LED brings true possibilities of ensuring the image and video sharp, exquisite, brilliant enough for stage events, presentation, TV studios.
Key benefits:
1. Ultra-light weight and slim design
Fan-less design and front maintenance
3. Quick lock system allowing handling fast
4. Standard panel size 500mmx50mm making flexible assembling and dismantling
5. Flexible power supply box allowing maintenance easy and fast
6. Excellent water-proof panel with IP65 front IP54 back
7. Higher brightness even with sharp sunshine getting a clear performance
|
AirLED-V6 |
|
|
Pixel Pitch |
12.5mm |
|
LED Type |
2RIGIB |
|
Brightness |
5, 000nits-6, 000nits |
|
Viewing Angle |
H: 140 degree |
|
V: 60 degree |
|
Contrast Ratio |
2000: 1 |
|
Pixel Density |
6, 400/sqm |
|
595/sqf |
|
1, 600/panel |
|
Module Size |
250mm x 250mm |
|
Module Resolution |
20 x 20 |
|
Panel Size(WxHxD) |
500mmx500mmx115mm |
|
Panel Resolution |
40 x 40 |
|
Weight |
8kg/panel |
|
|
|
16kg/panel |
|
|
Power Consumption |
800W/Panel Max |
|
320W/Panel Ave |
|
Processing |
16 bit/color |
|
Refresh Rate |
1, 200-4, 000Hz |
|
Drive Method |
1/4 Scan Method |
|
Environment |
Outdoor use |
|
Max Stacking |
20 panels |
|
Max Hanging |
20 panels |
|
Servicing |
Front & Back |
|
Panel Material |
Precision Extruded Aluminum Section |
|
Source Compatibility (with Processor) |
VGA(RGBHV), DVI, HDMI, SDI(HDSDI) |
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
Welcome to our Showroom and My Products for more detailed offer info.
