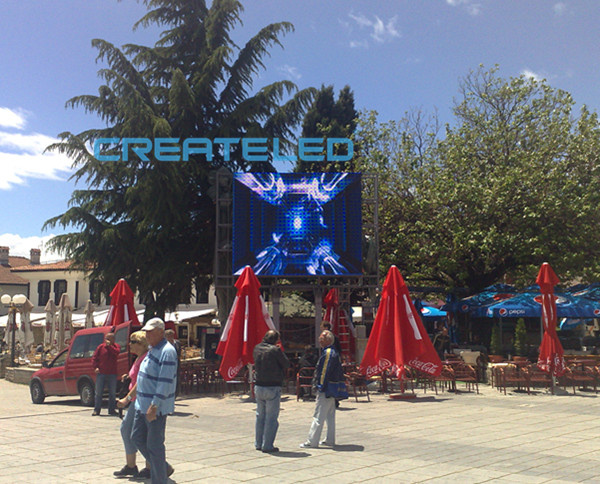

CreateLED precision extruded aluminum section design is also available for outdoor fixed installation and rental with its distinct design, like high brightness, excellent waterproof, Anti-dust and Anti-fungal technology. Small pixel pitch like 6mm with high resolution is an ideal choice for outdoor ceremony, events, providing a close view distance and wide view angle. The super bright RGB vertical arrangement pixel configuration brings true possibilities of ensuring the image and video sharp, exquisite, brilliant enough for stage events, presentation, TV studios.
Key benefits:
1. Ultra-light weight and slim design
Fan-less design and front maintenance
3. Quick lock system allowing handling fast
4. Standard panel size 500mmx500mm making flexible assembling and dismantling
5. Flexible power supply box allowing maintenance easy and fast
5. Excellent water-proof panel with IP65 front IP54 back
7. Wide view angle and good color mix available by vertical arrangement 1R1G1B
8. Higher brightness even with sharp sunshine getting a clear performance
|
Model |
AirLED(O)-12 |
|
Pixel Pitch |
12.5mm |
|
Unit Size |
500mmx500mmx115mm |
|
LED Type |
1R1G1B |
|
Pixel / Unit |
40x40 |
|
Unit Weight |
16KG |
|
Viewing Angle |
H110 degree V110 degree |
|
Application |
Storage -40~60° C, Working-20~50° C |
|
Protection Level |
For outdoor use |
|
Power Consumption |
800W/panel Max |
|
320W/Panel Ave |
|
Driving |
1/4 Scan |
|
Frame Refresh |
≥ 60Hz |
|
Data Refresh Rate |
1, 200~4, 000Hz |
|
Processing |
16bit |
|
Max Brightness |
6, 000nits |
|
Power Supply |
AC90-240V, 50~60Hz |
|
MTBF |
≥ 1, 000 Hours |
|
Life Span |
≥ 50, 000 Hours |
|
Pixel Failure |
< 0.0003 |
Shenzhen CreateLED Electronics Co, . Ltd. Is one of the most professional LED Screen manufacturer to provide full solutions for fixed billboard market and rental market.
Especially since year of 2010 we explored and issued the innovative newly AirLED series for rental customers, standard solution for different applications, standard solution for ourselves mass production.
About outdoor fixed installation billboard, we are promoting the full viewing angle, complete water proof and lower power drive method outdoor cabinets, which is leading the trend of this billboard market.
Welcome to our Showroom and My Products for more detailed offer info.
